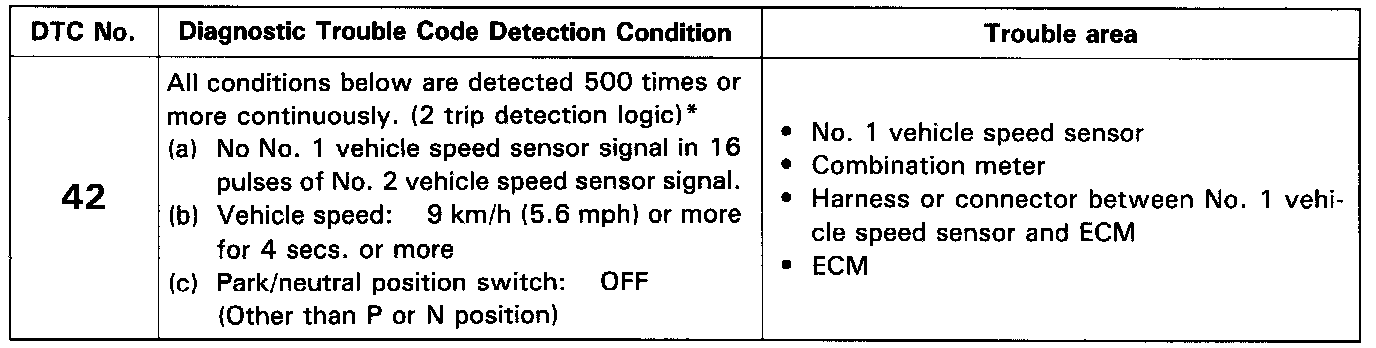

Detection Condition
DETECTING CONDITION

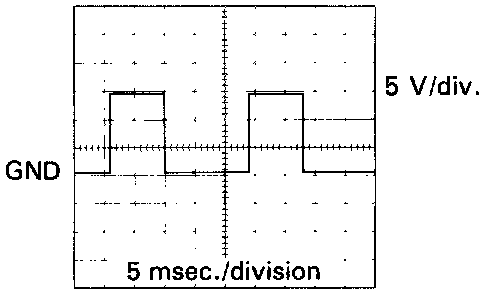

Reference waveform between terminals SP1 and E1 when vehicle speed is approx. 60 km/h (37 mph).
HINT: The more the vehicle speed gains, the more the SP1 signal produces.

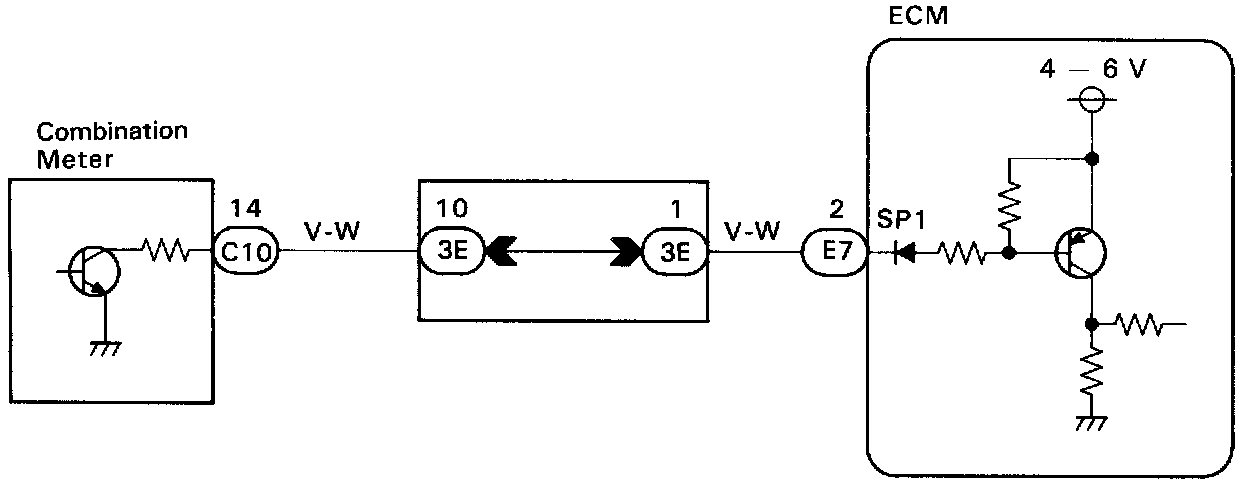

WIRING DIAGRAM
DETECTING CONDITION
Reference waveform between terminals SP1 and E1 when vehicle speed is approx. 60 km/h (37 mph).
HINT: The more the vehicle speed gains, the more the SP1 signal produces.
WIRING DIAGRAM
