Air Inlet Control Servomotor Circuit

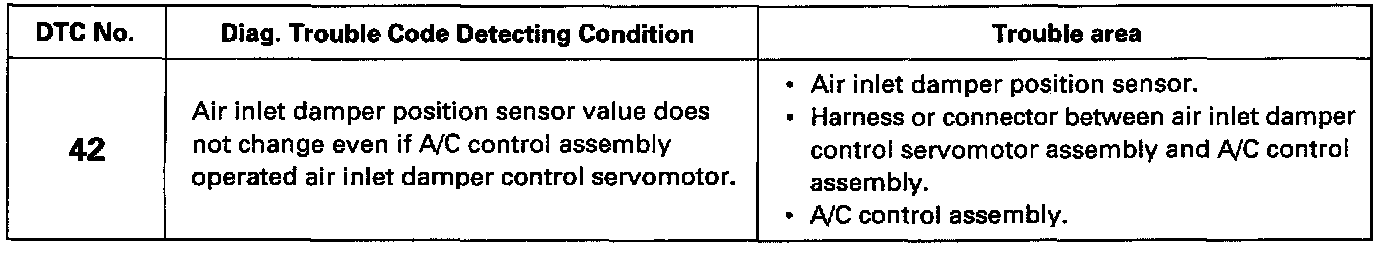

DTC 42 AIR INLET DAMPER CONTROL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

The air inlet damper control servomotor is controlled by the air conditioning control assembly and moves the air inlet damper to the desired position.

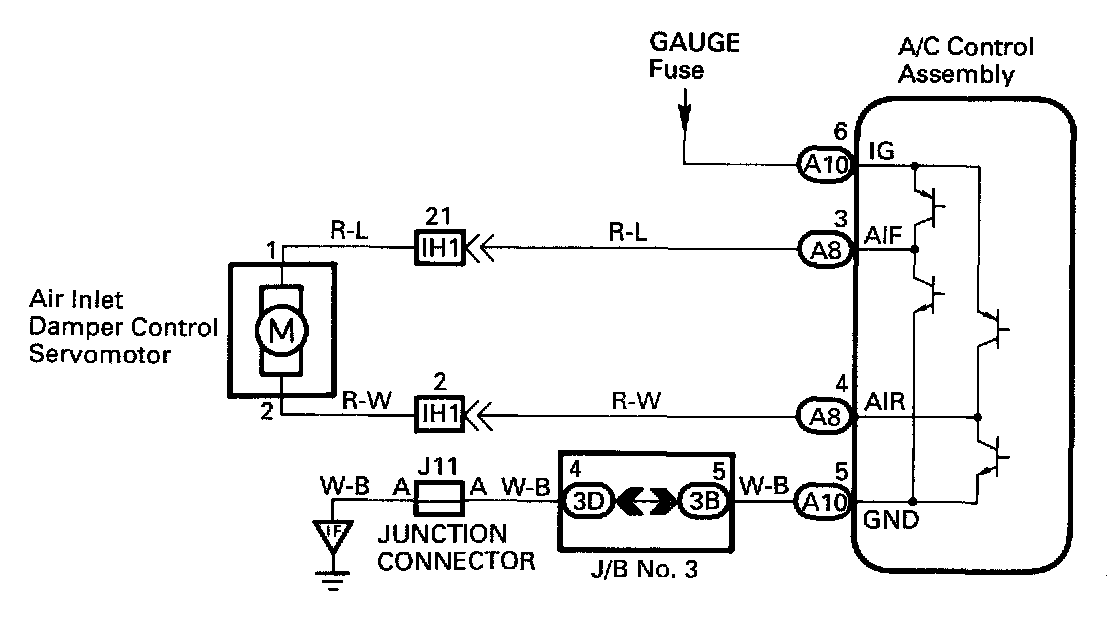

Wiring Diagram:





INSPECTION PROCEDURE (P) Preparation (C) Check

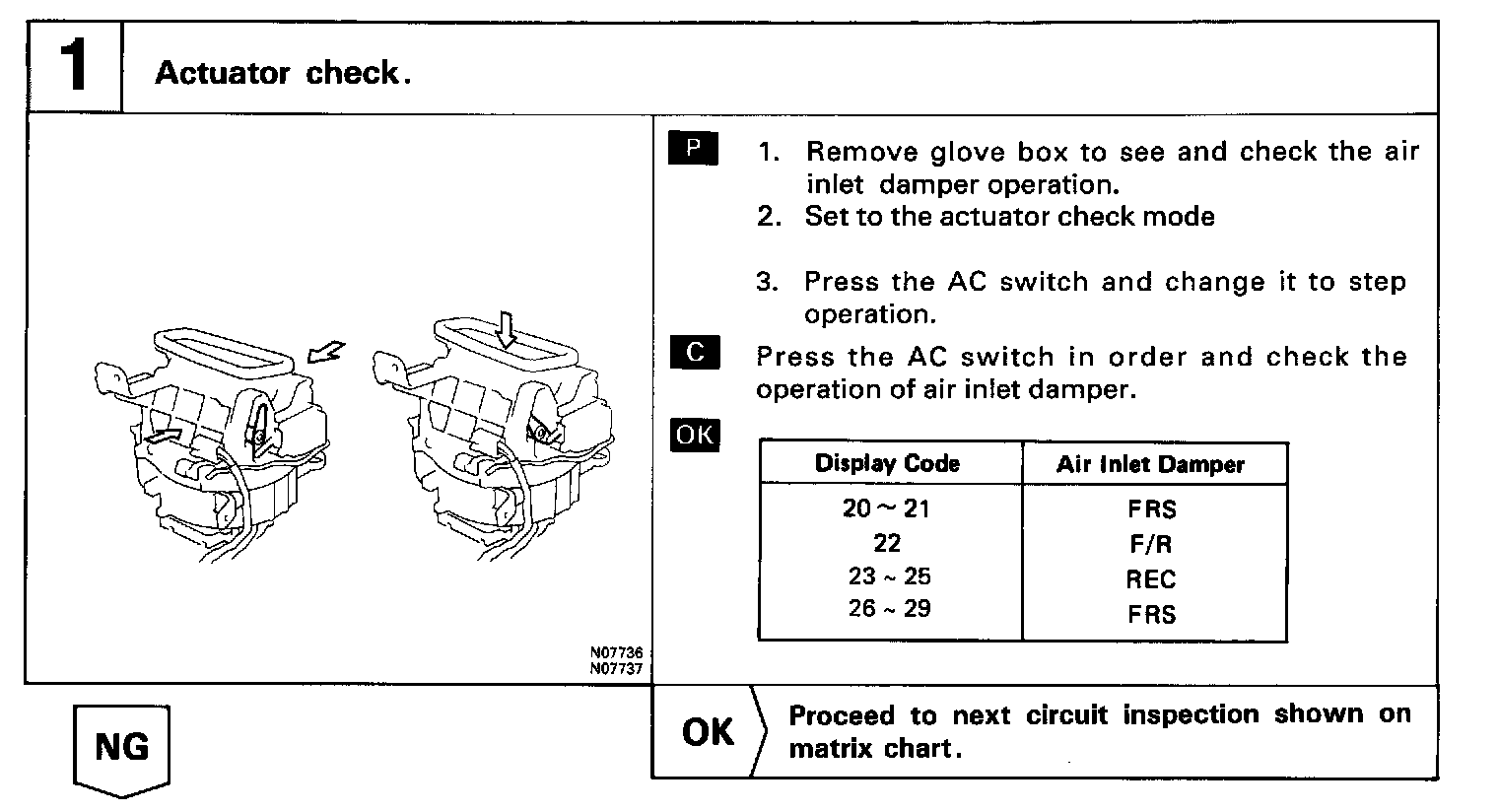

Step 1:

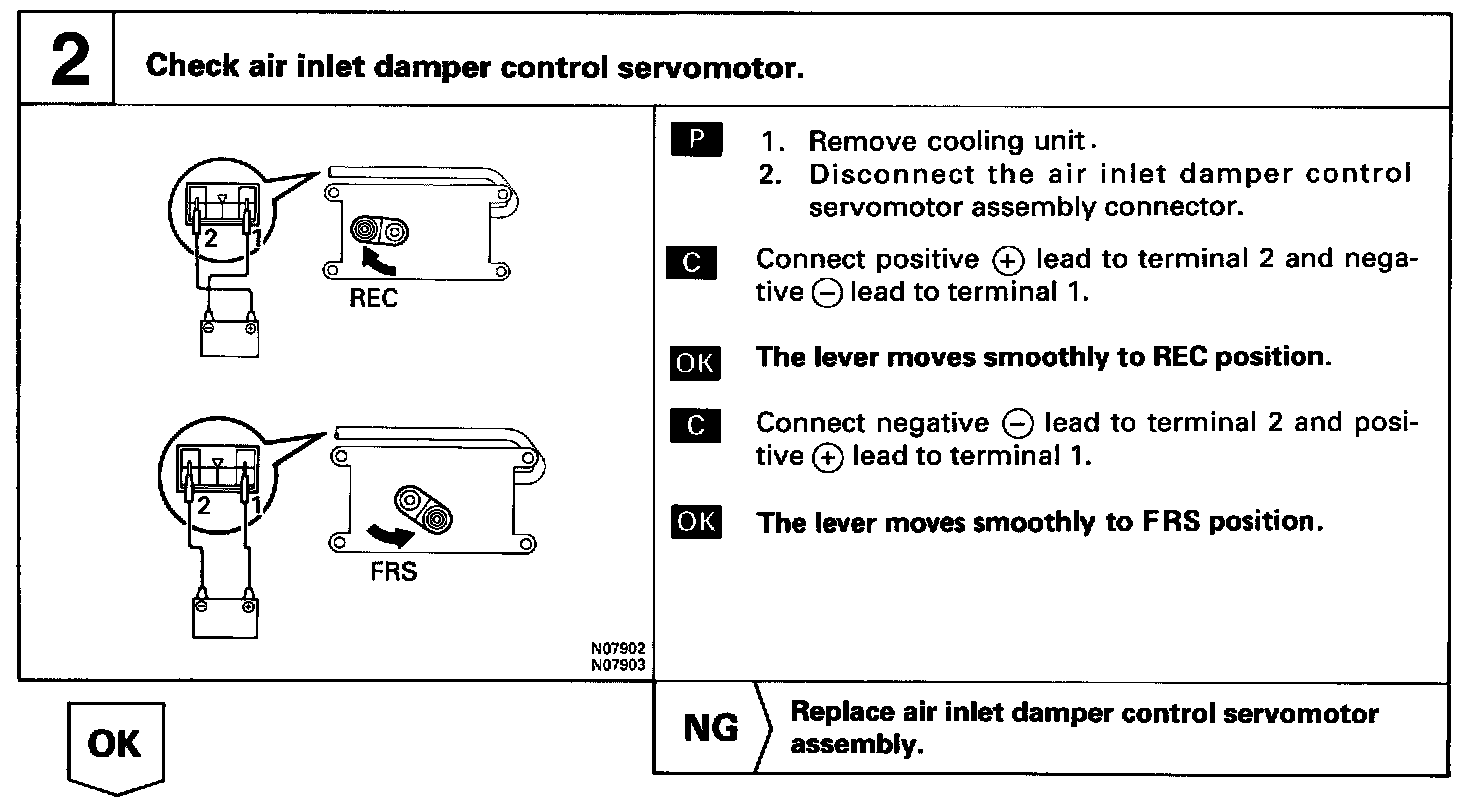

Step 2:

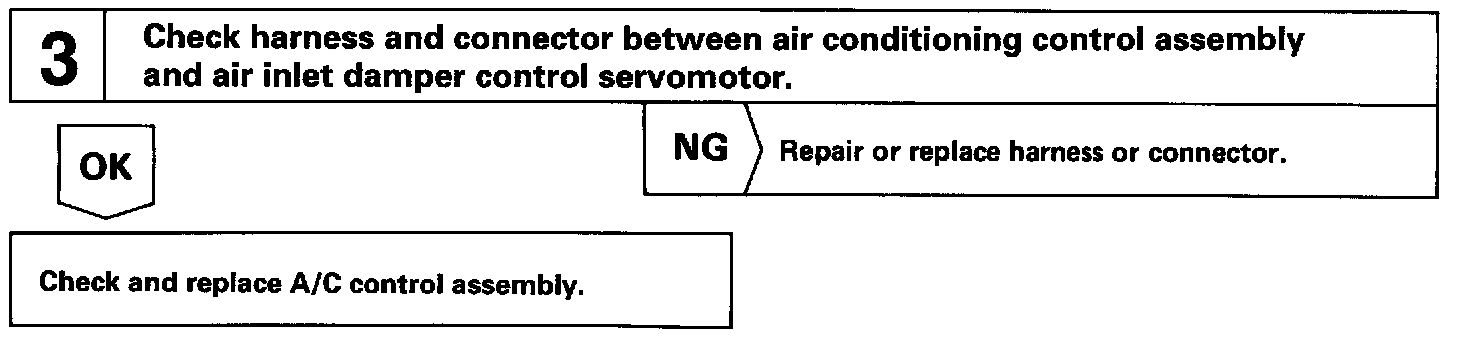

Step 3:
