Air Mix Control Servomotor Circuit

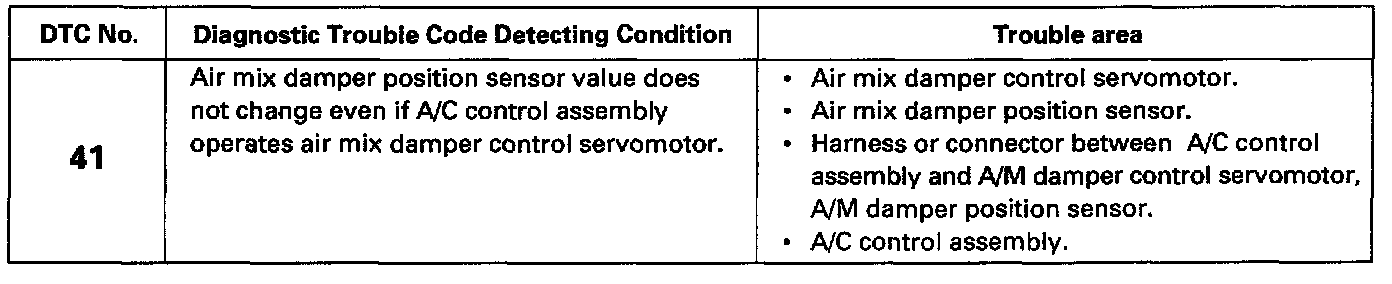

DTC 41 AIR MIX DAMPER CONTROL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

The air mix damper control servomotor is controlled by the A/C control assembly and moves the air mix damper to the desired position.

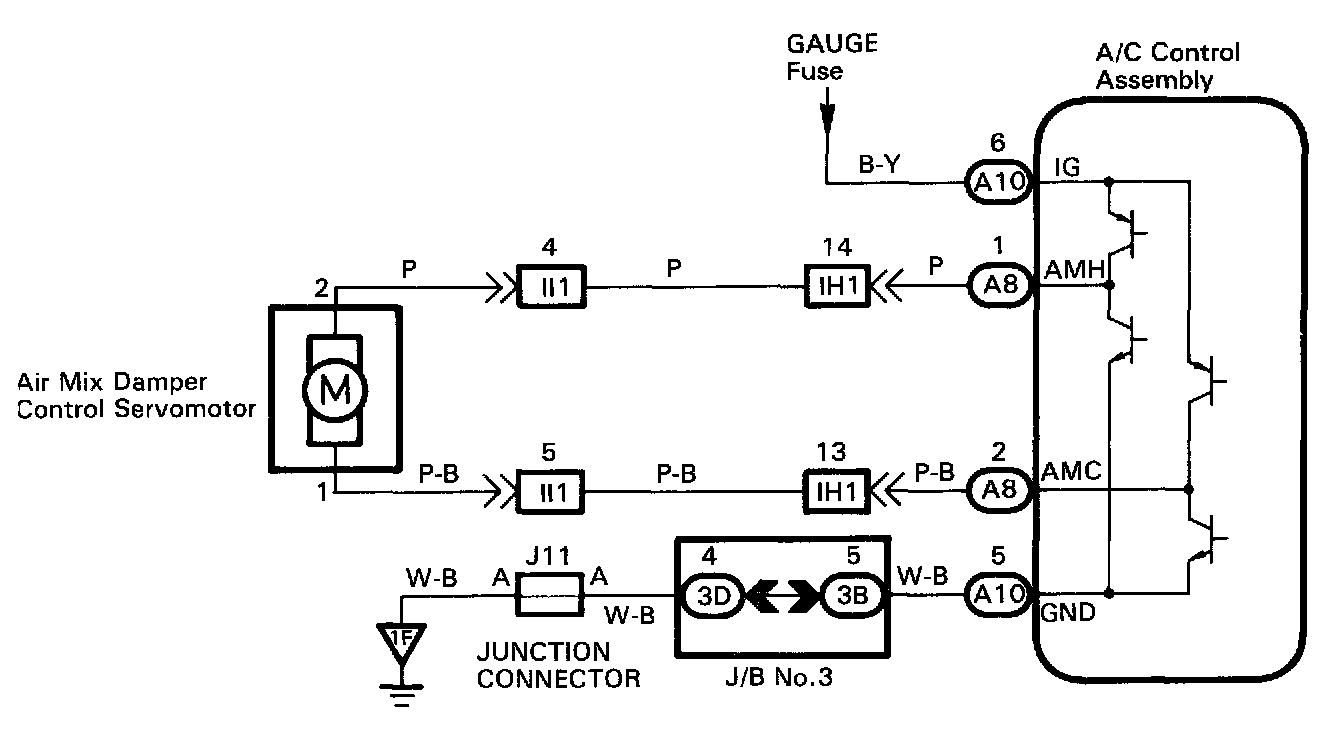

Wiring Diagram:





INSPECTION PROCEDURE (P) Preparation (C) Check

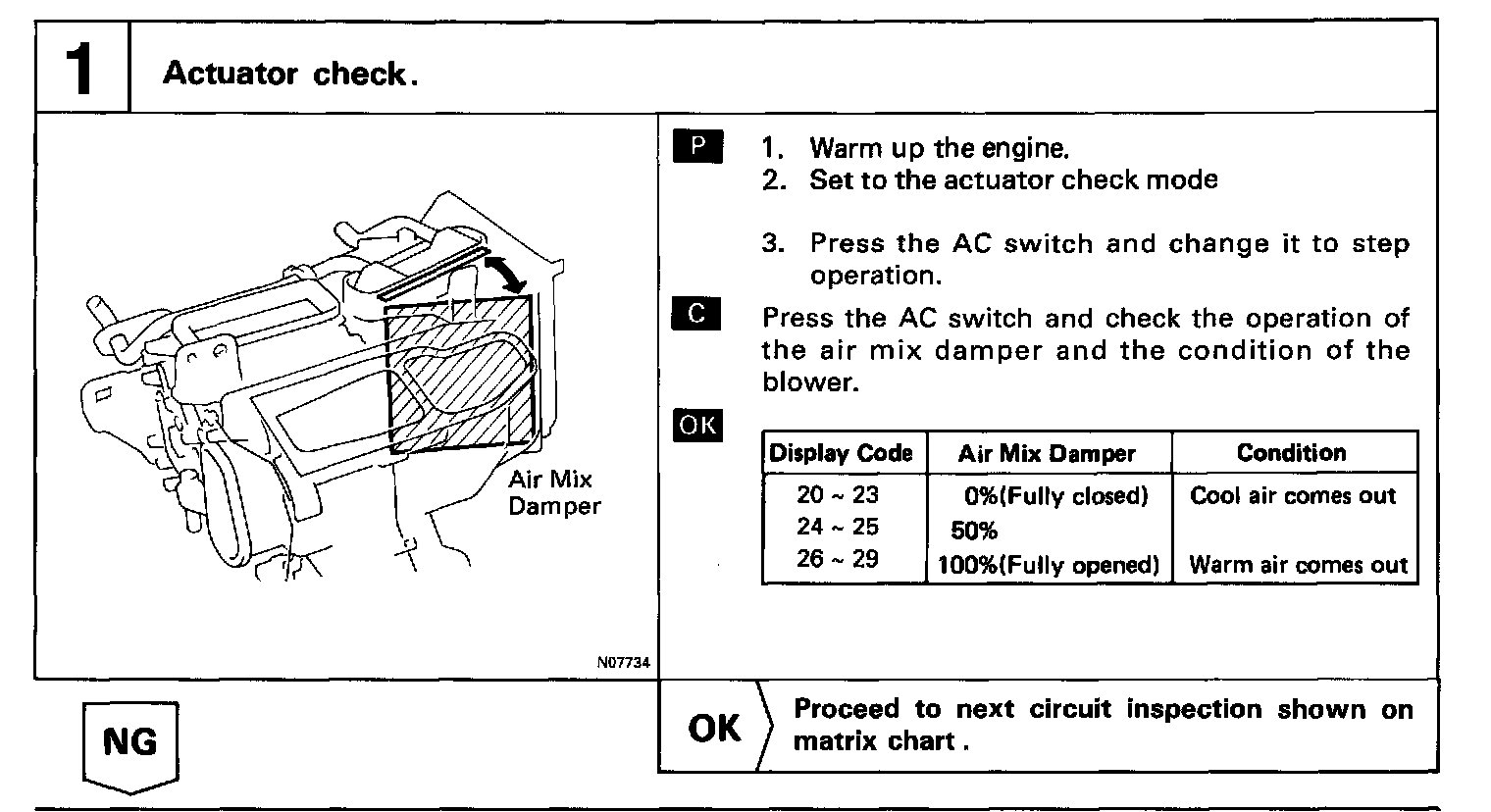

Step 1:

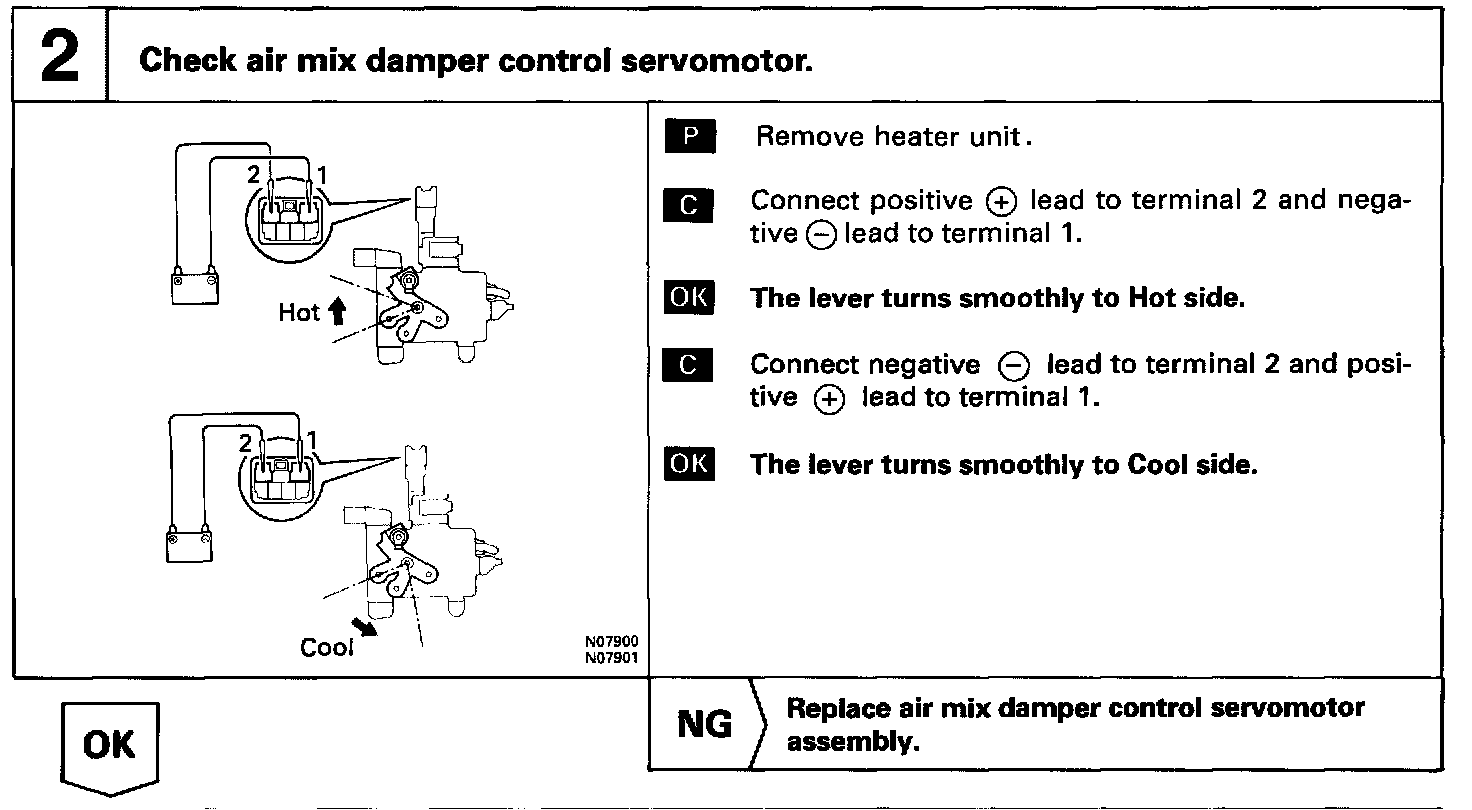

Step 2:

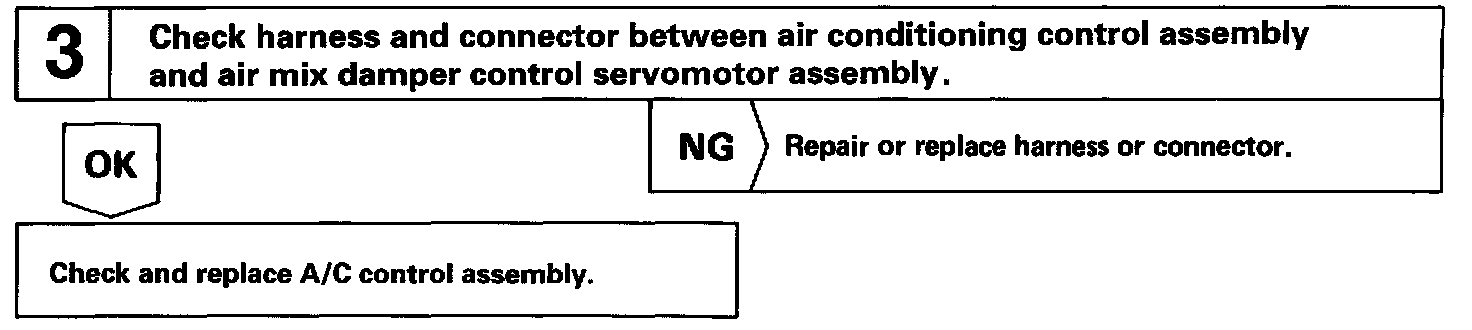

Step 3:
