DTC 33

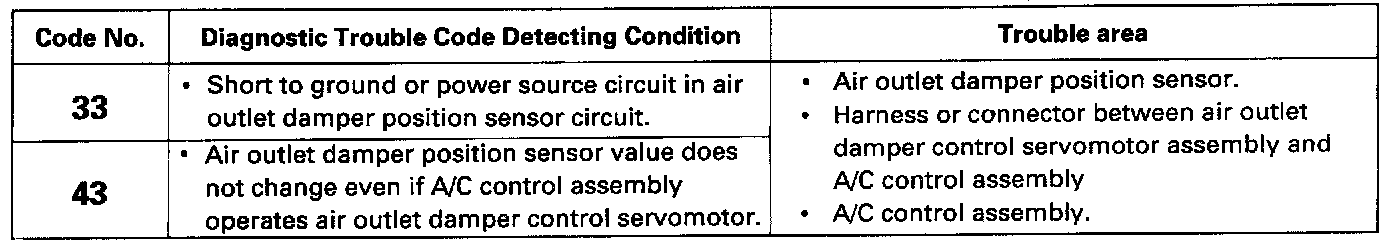

DTC 33 AIR OUTLET DAMPER POSITION SENSOR CIRCUIT

CIRCUIT DESCRIPTION

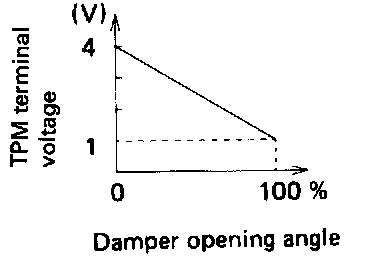

This sensor detects the position of the air mix damper and sends the appropriate signals to the air conditioning control assembly. The position sensor is built into the air outlet damper control servomotor assembly.

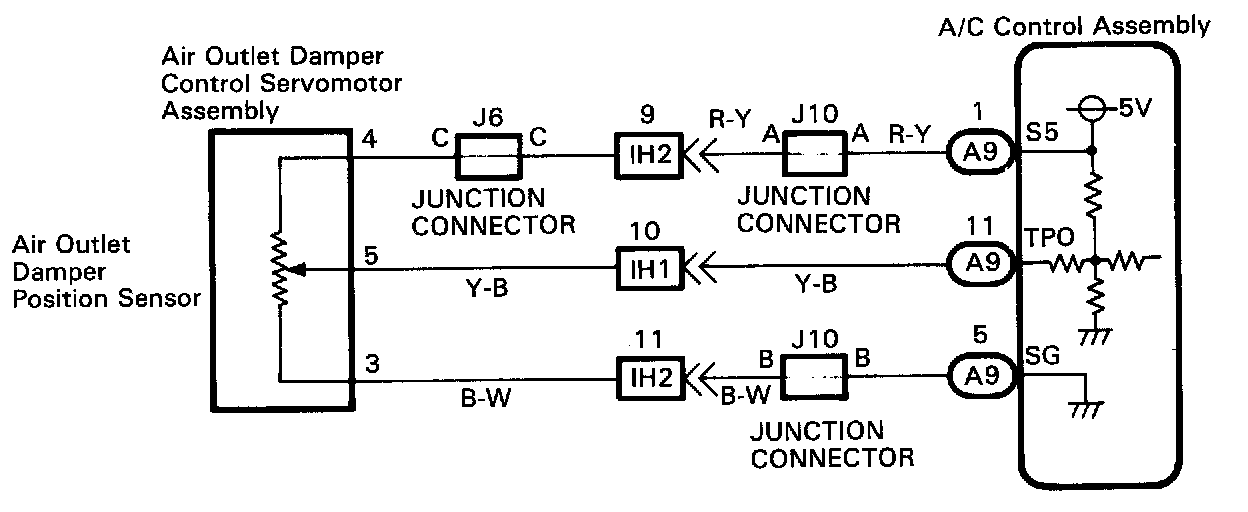

Wiring Diagram:

INSPECTION PROCEDURE (P) Preparation (C) Check

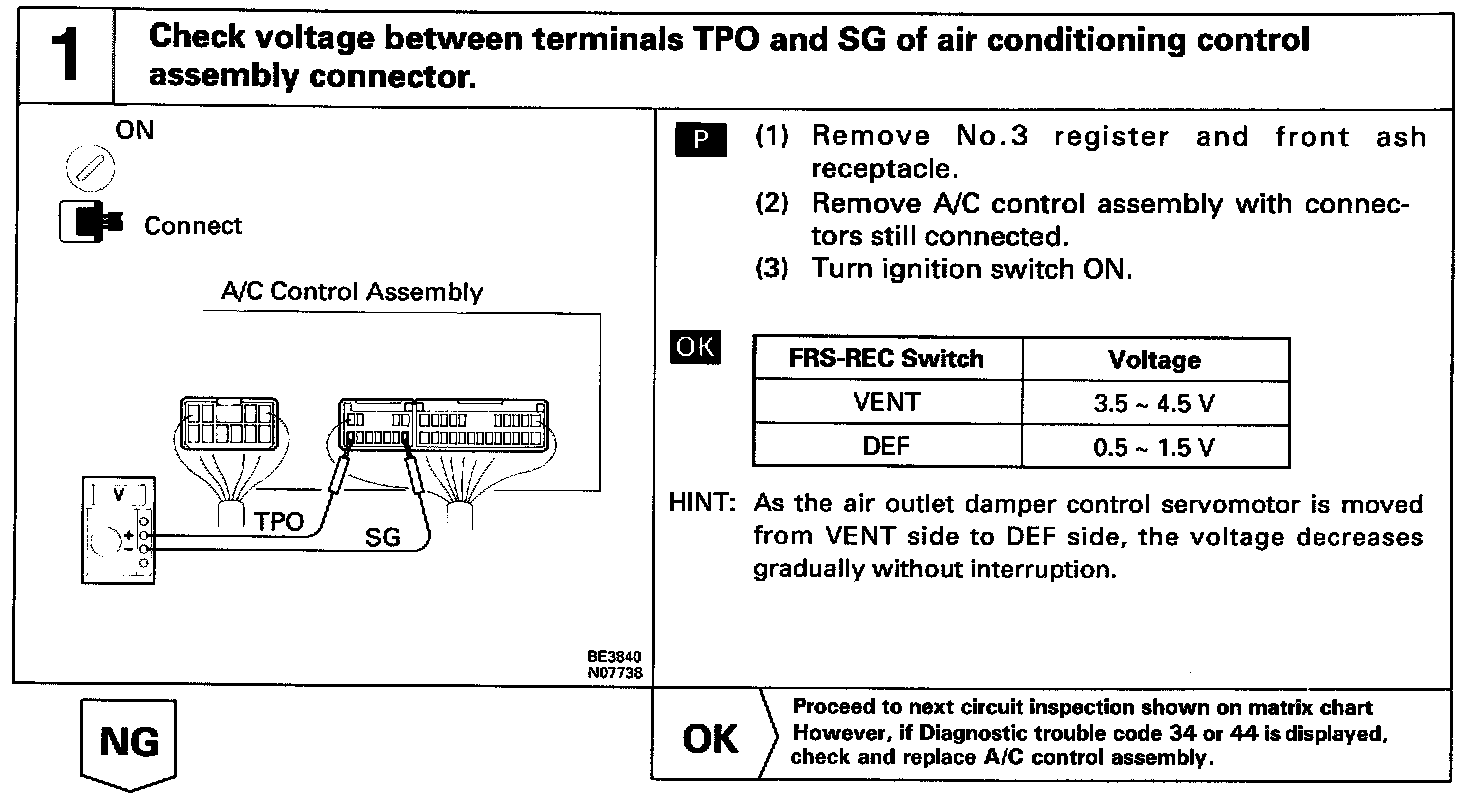

Step 1:

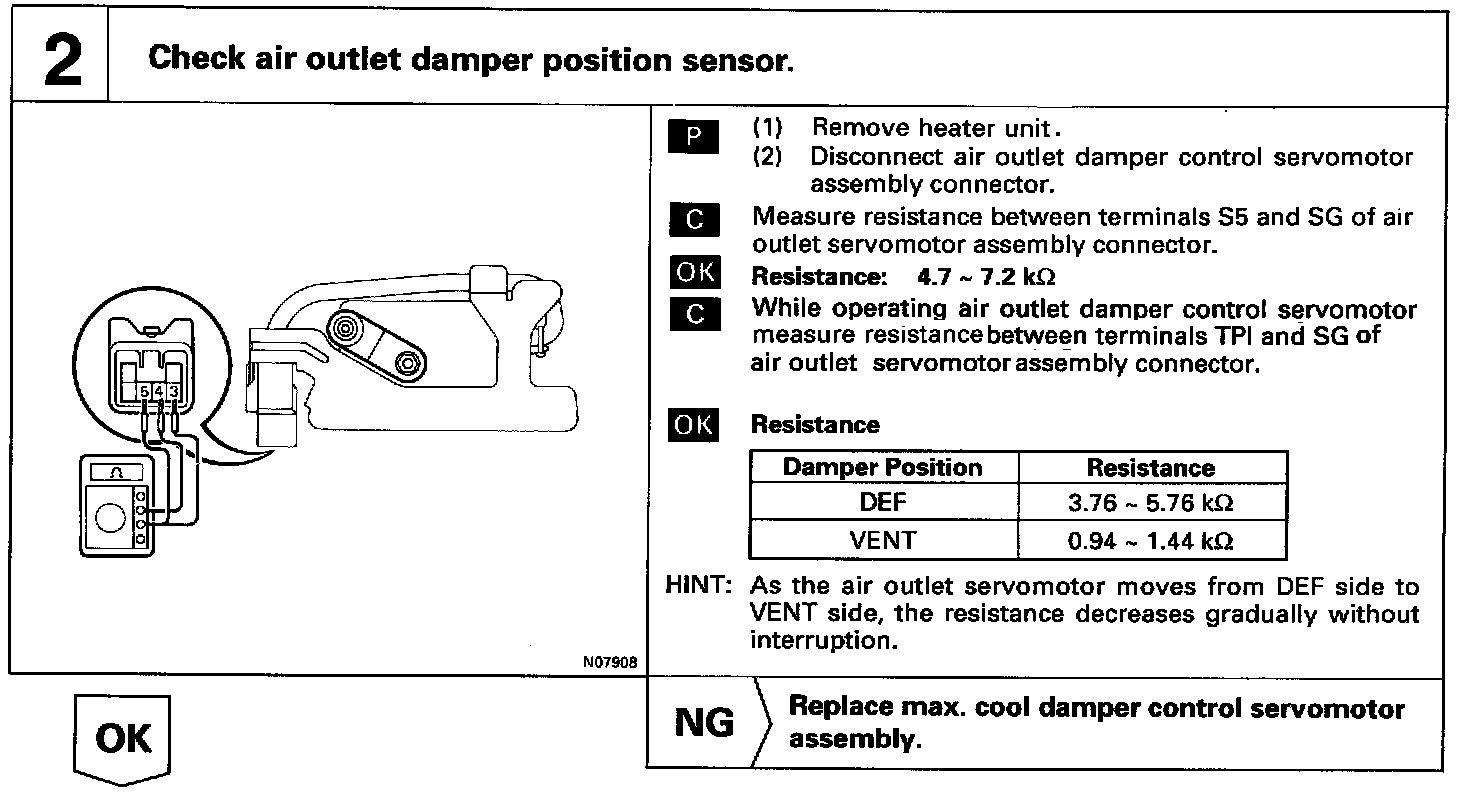

Step 2:

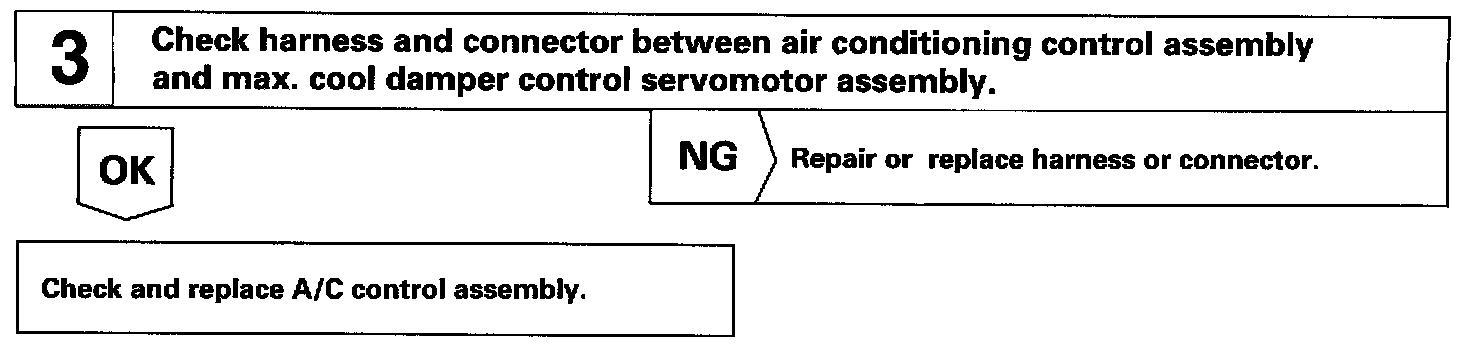

Step 3:
