DTC 32

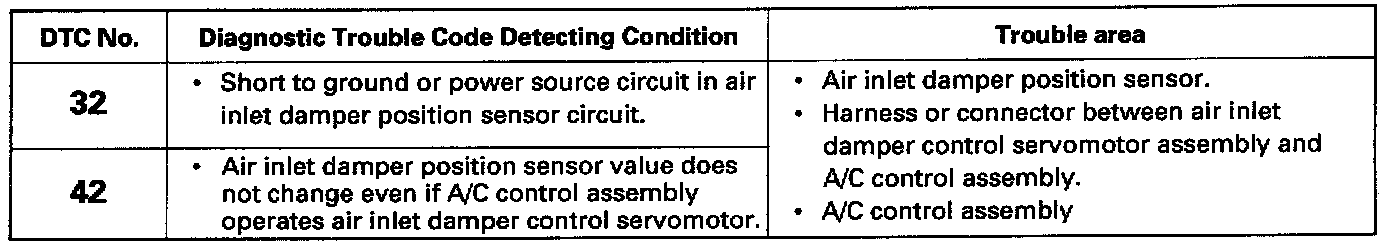

DTC 32 AIR INLET DAMPER POSITION SENSOR CIRCUIT

CIRCUIT DESCRIPTION

This sensor detects the position of the air inlet damper and sends the appropriate signals to the air conditioning control assembly. The position sensor is built into the air inlet damper control servomotor assembly.

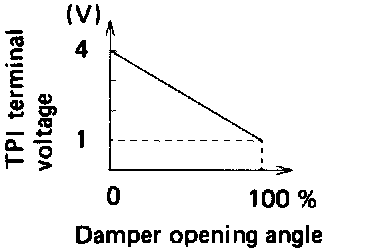

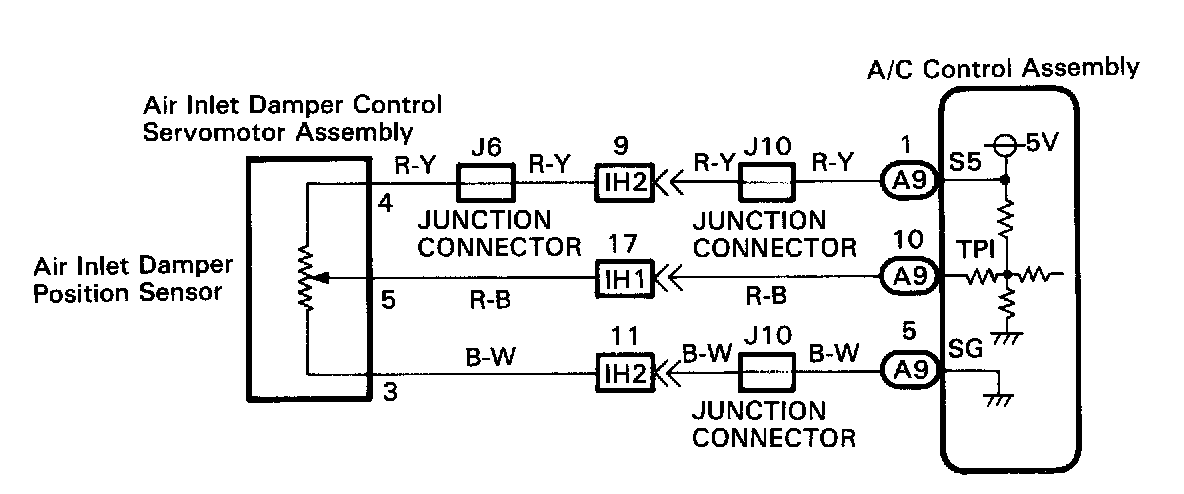

Wiring Diagram:

INSPECTION PROCEDURE (P) Preparation (C) Check

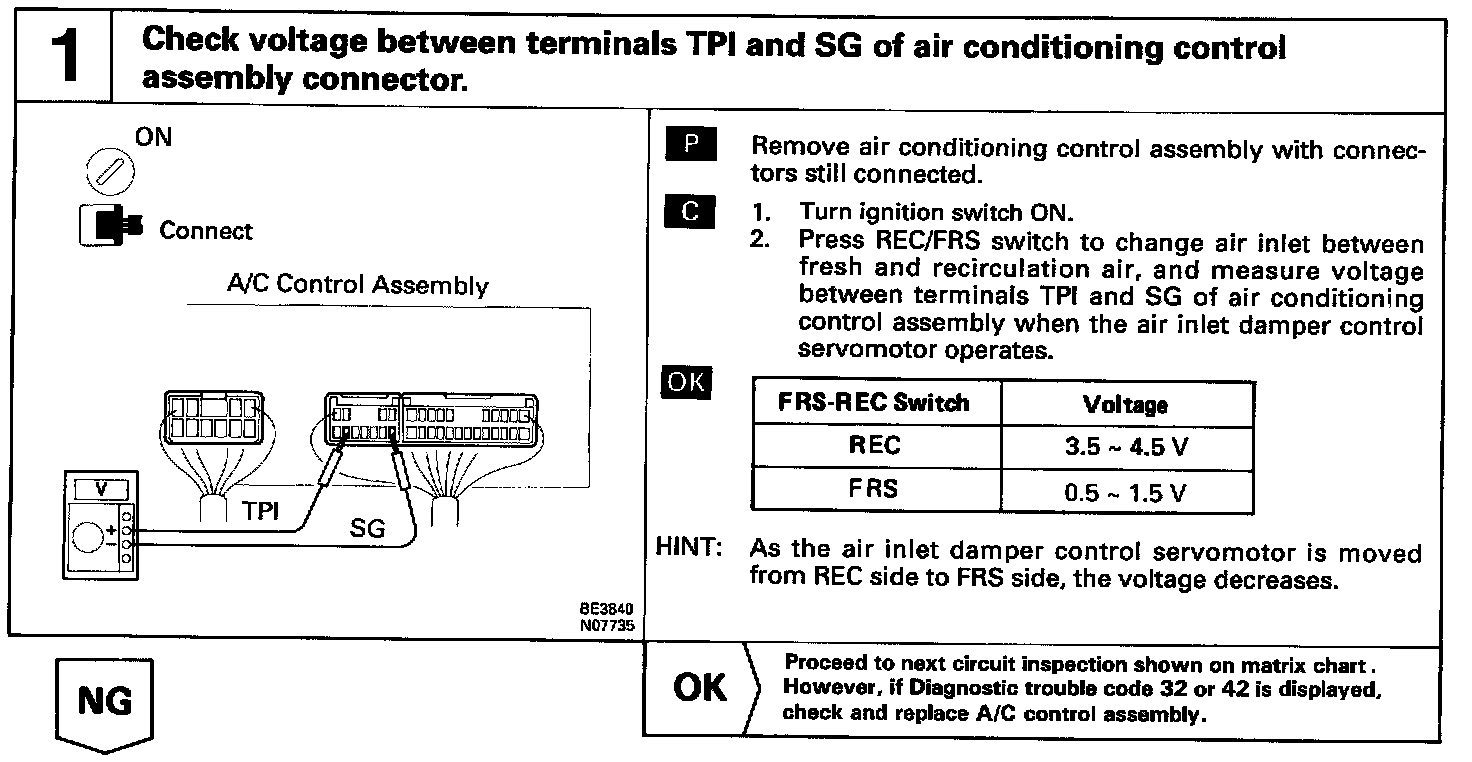

Step 1:

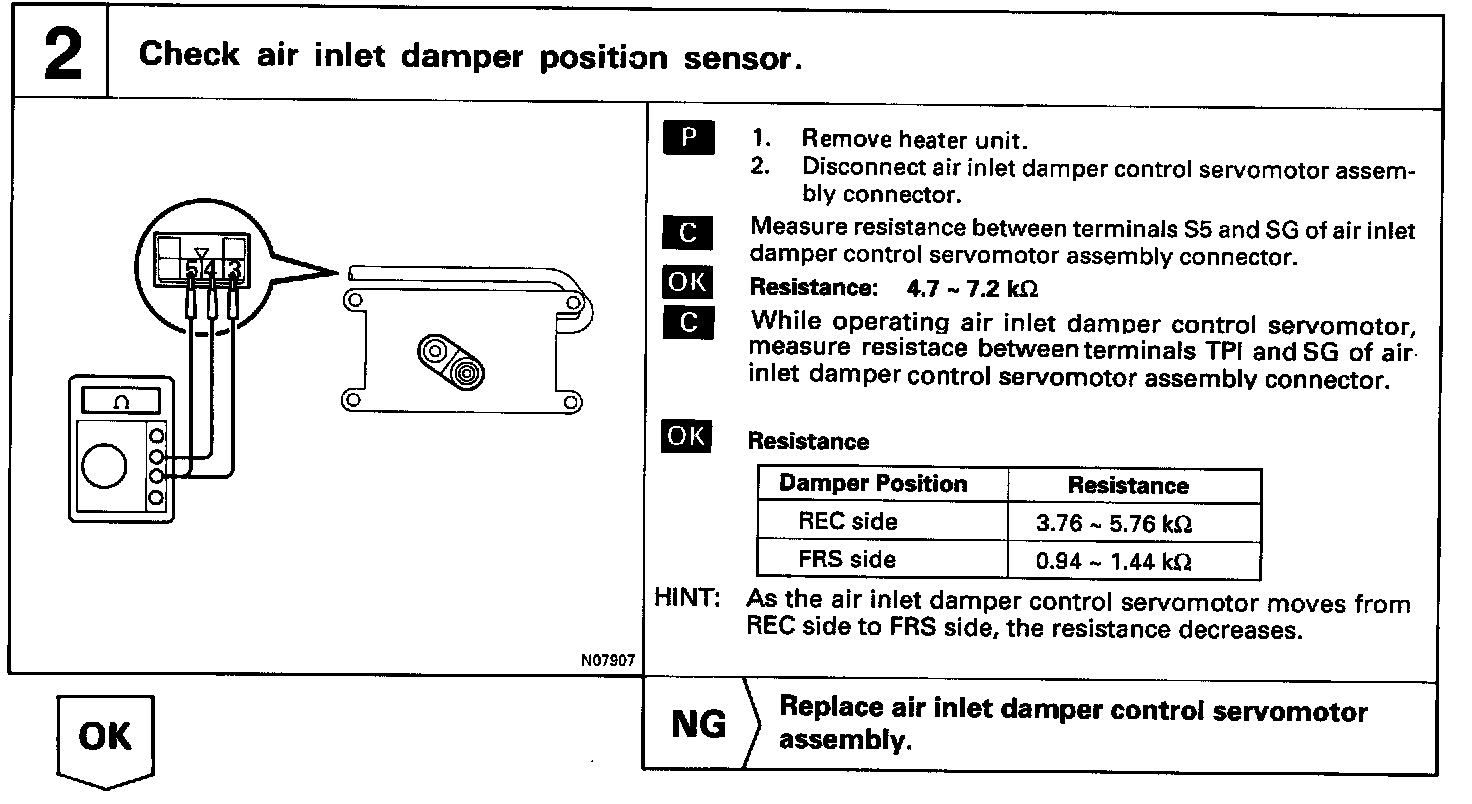

Step 2:

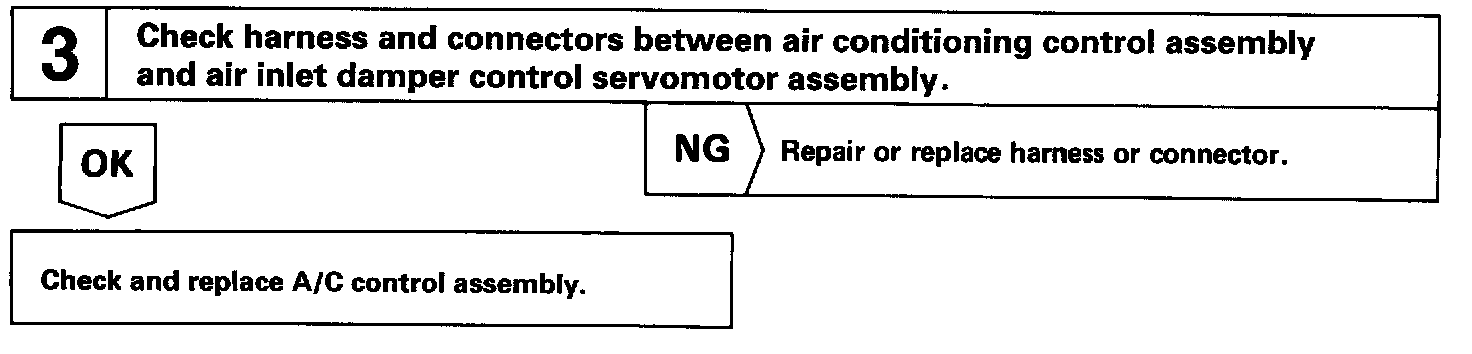

Step 3:
