DTC 21

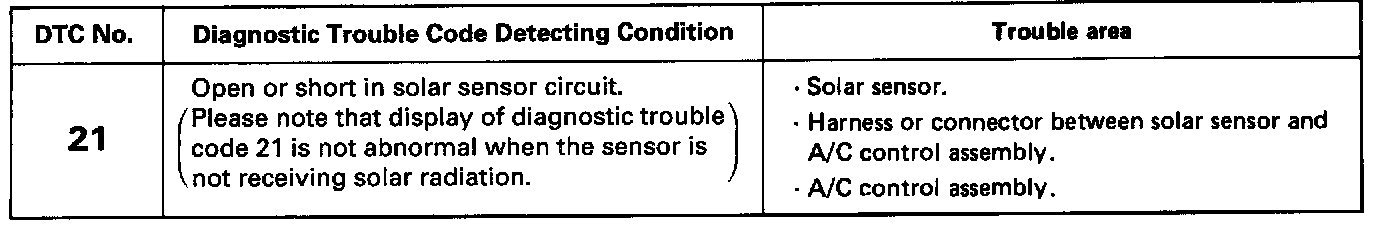

DTC 21 SOLAR SENSOR CIRCUIT

CIRCUIT DESCRIPTION

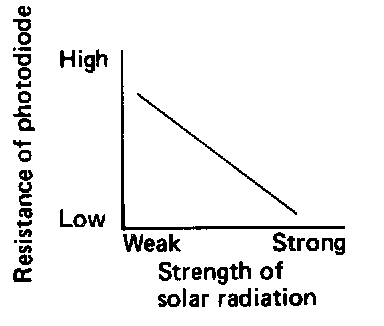

A photo diode in the solar sensor detects solar radiation and sends signals to the air conditioning control assembly.

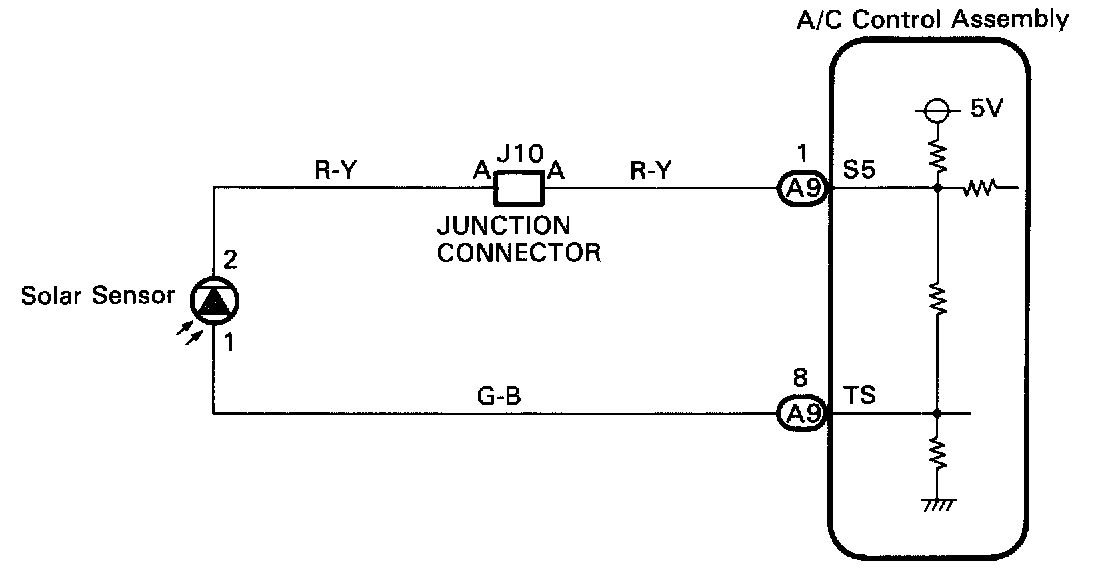

Wiring Diagram:

INSPECTION PROCEDURE (P) Preparation (C) Check

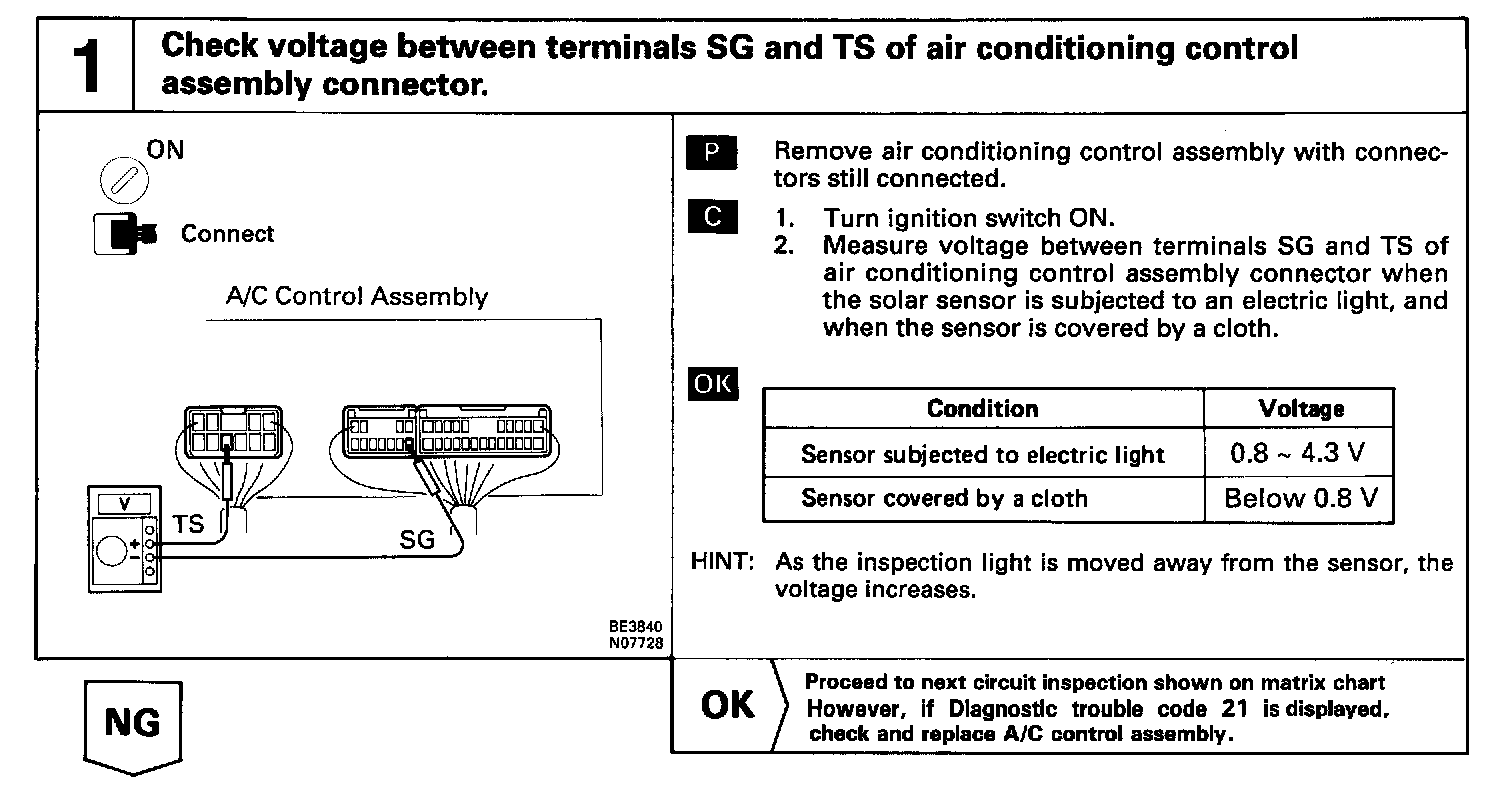

Step 1:

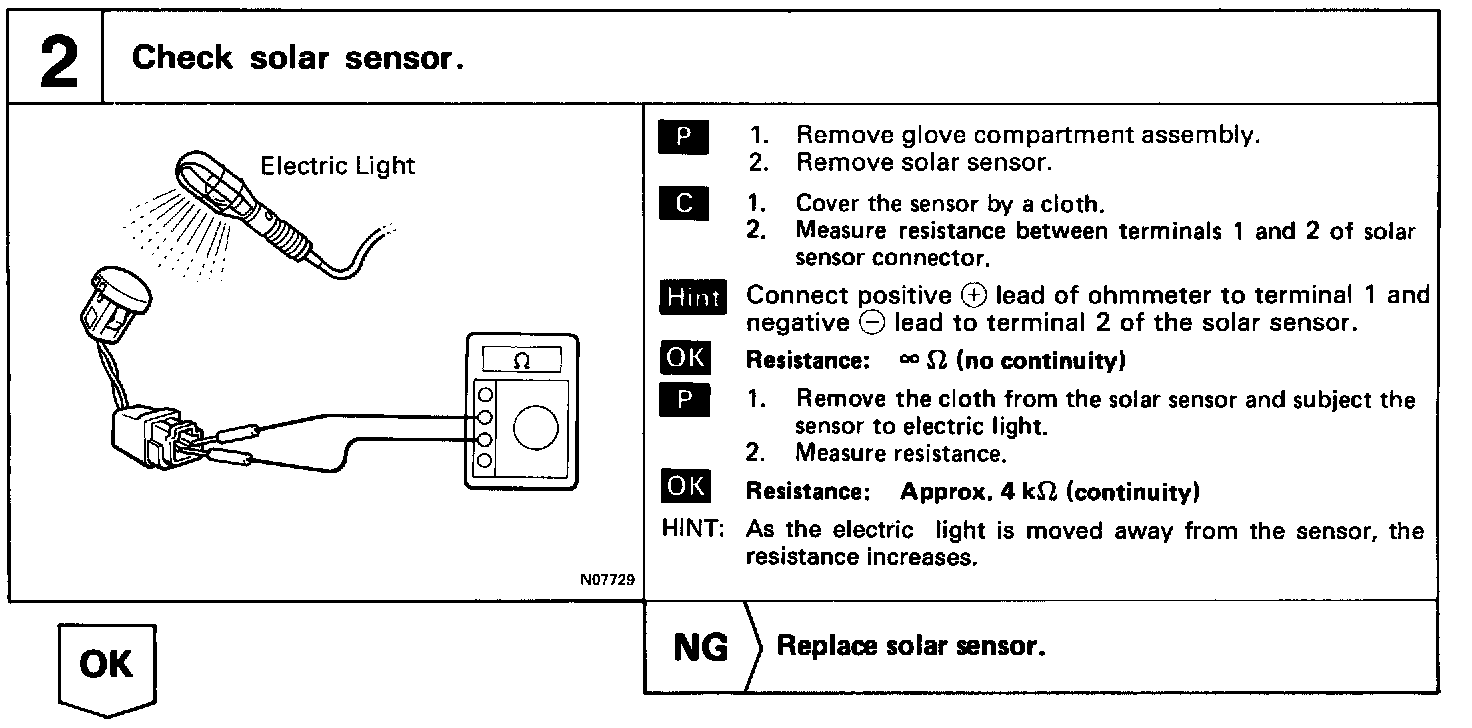

Step 2:

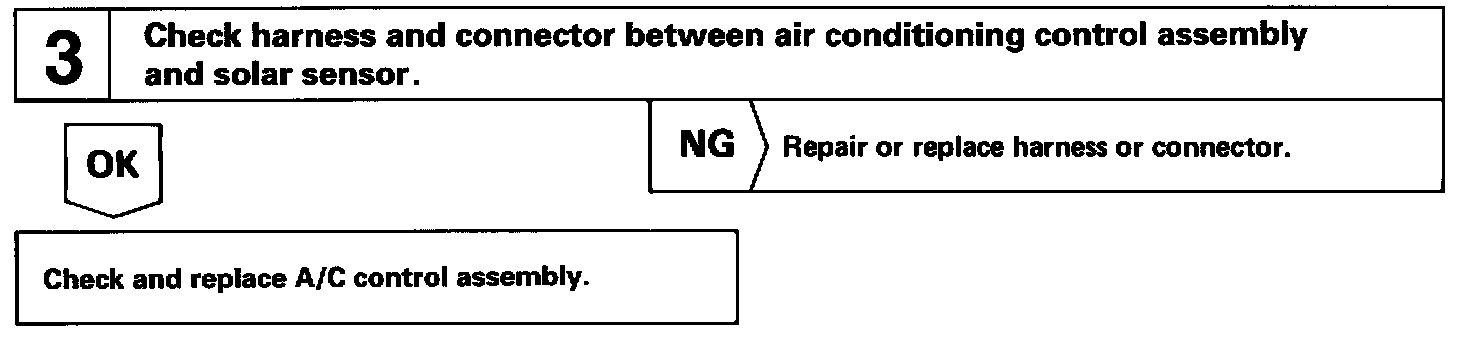

Step 3:
