DTC 14

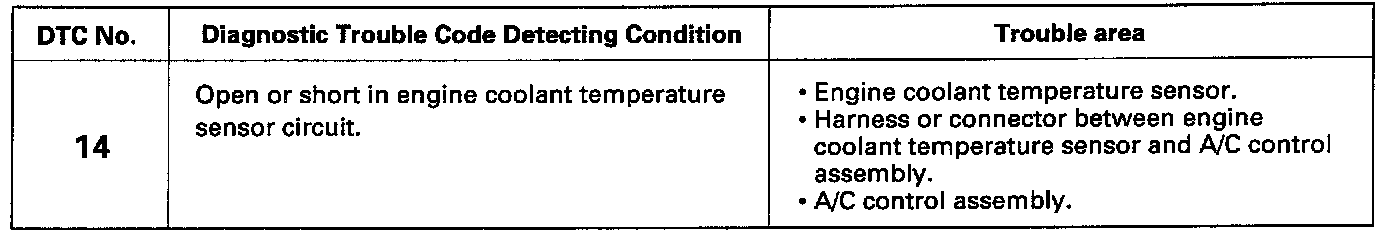

DTC 14 ENGINE COOLANT TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

This sensor detects the coolant temperature and sends the appropriate signals to the air conditioning control assembly. These signals are used for warm up control when the engine is cold.

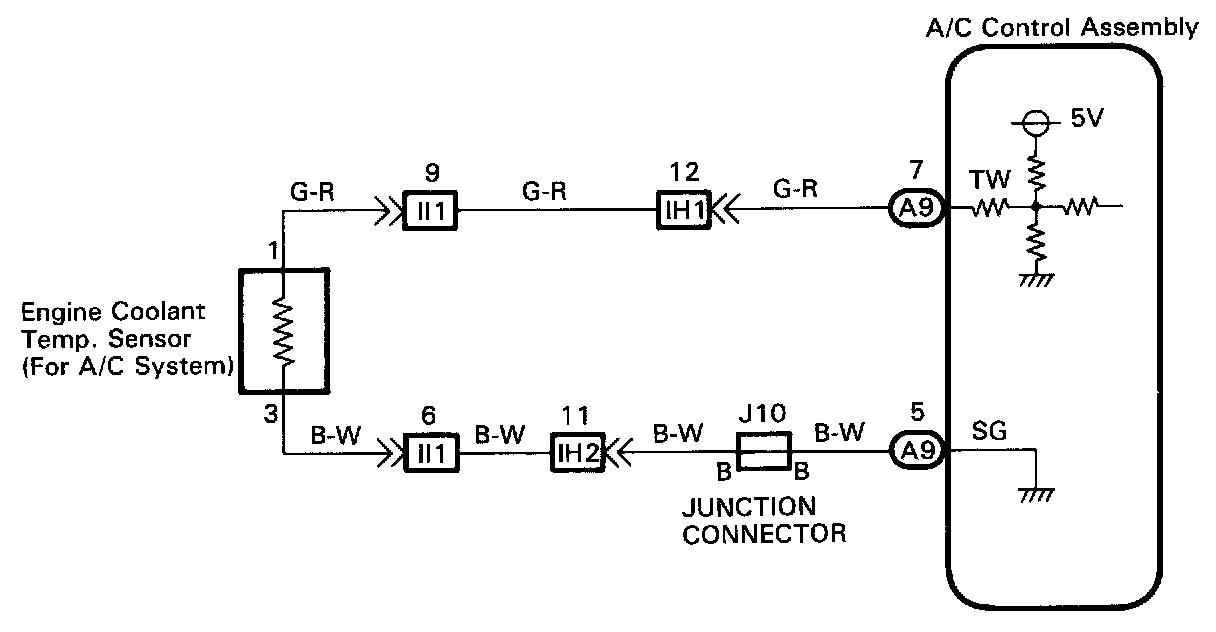

Wiring Diagram:

INSPECTION PROCEDURE (P) Preparation (C) Check

Step 1:

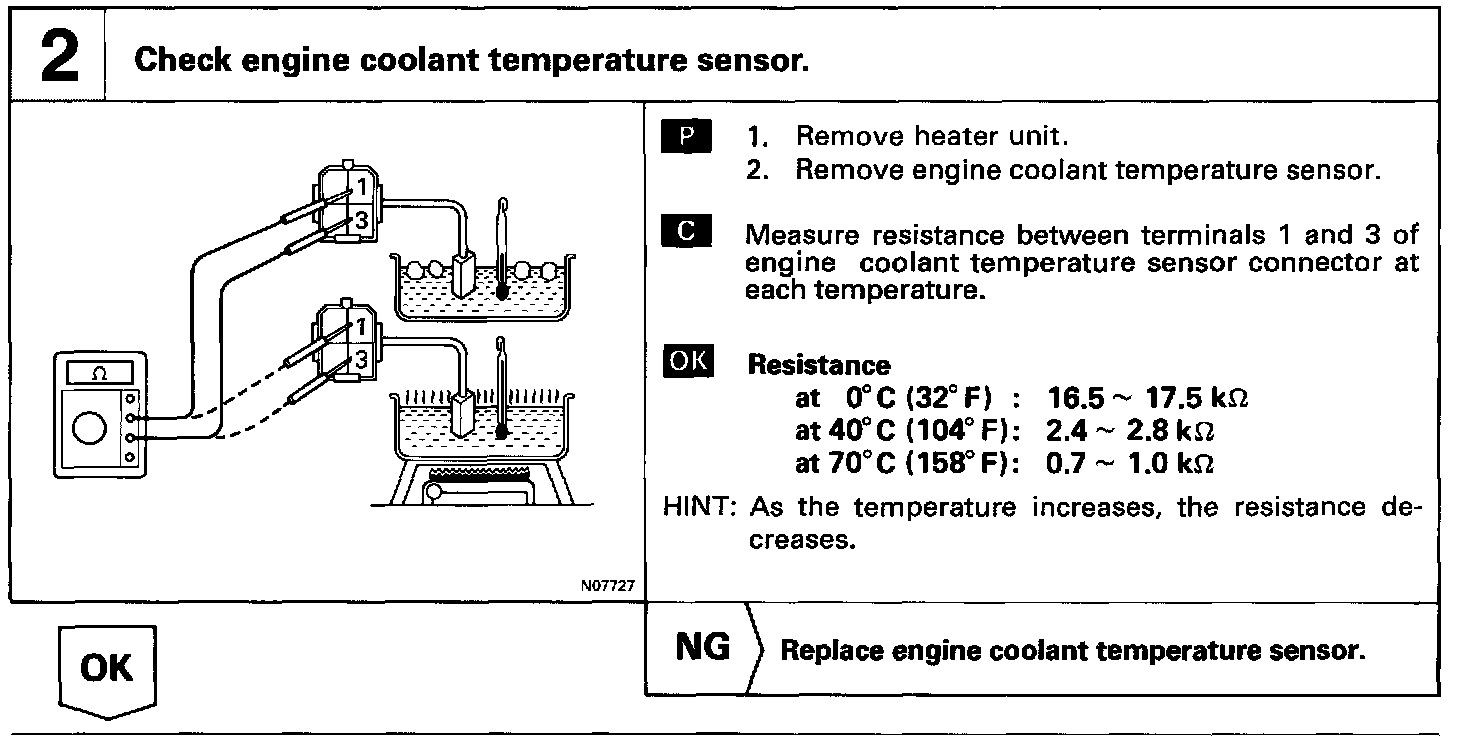

Step 2:

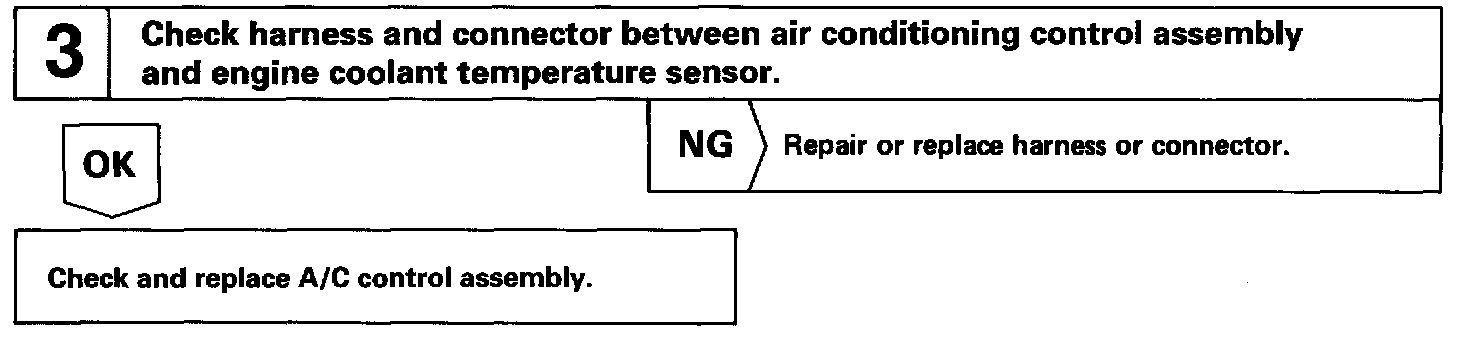

Step 3:
