DTC 12

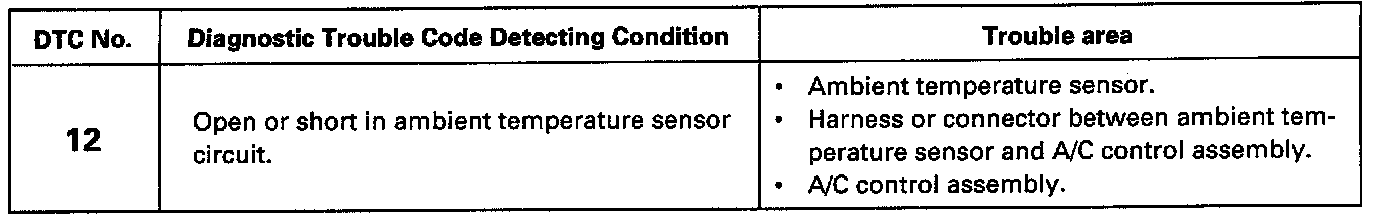

DTC 12 AMBIENT TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

This sensor detects the ambient temperature and sends the appropriate signals to the A/C control assembly.

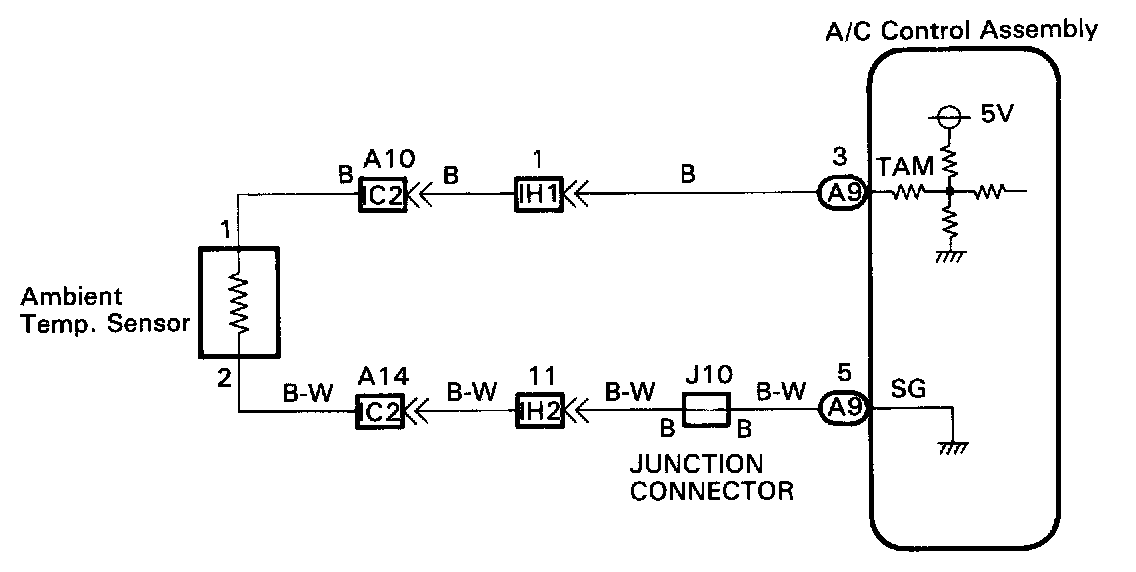

Wiring Diagram:

INSPECTION PROCEDURE (P) Preparation (C) Check

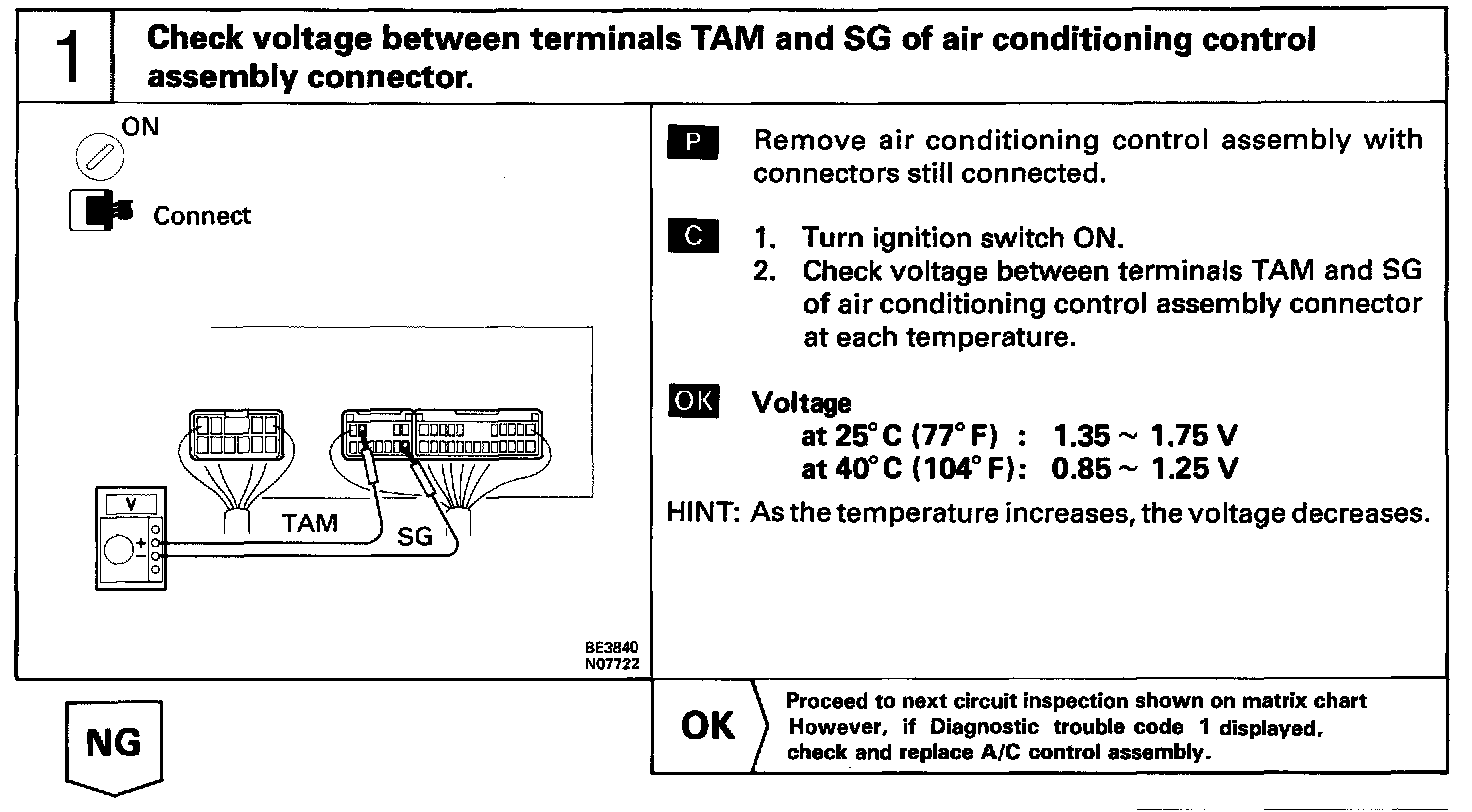

Step 1:

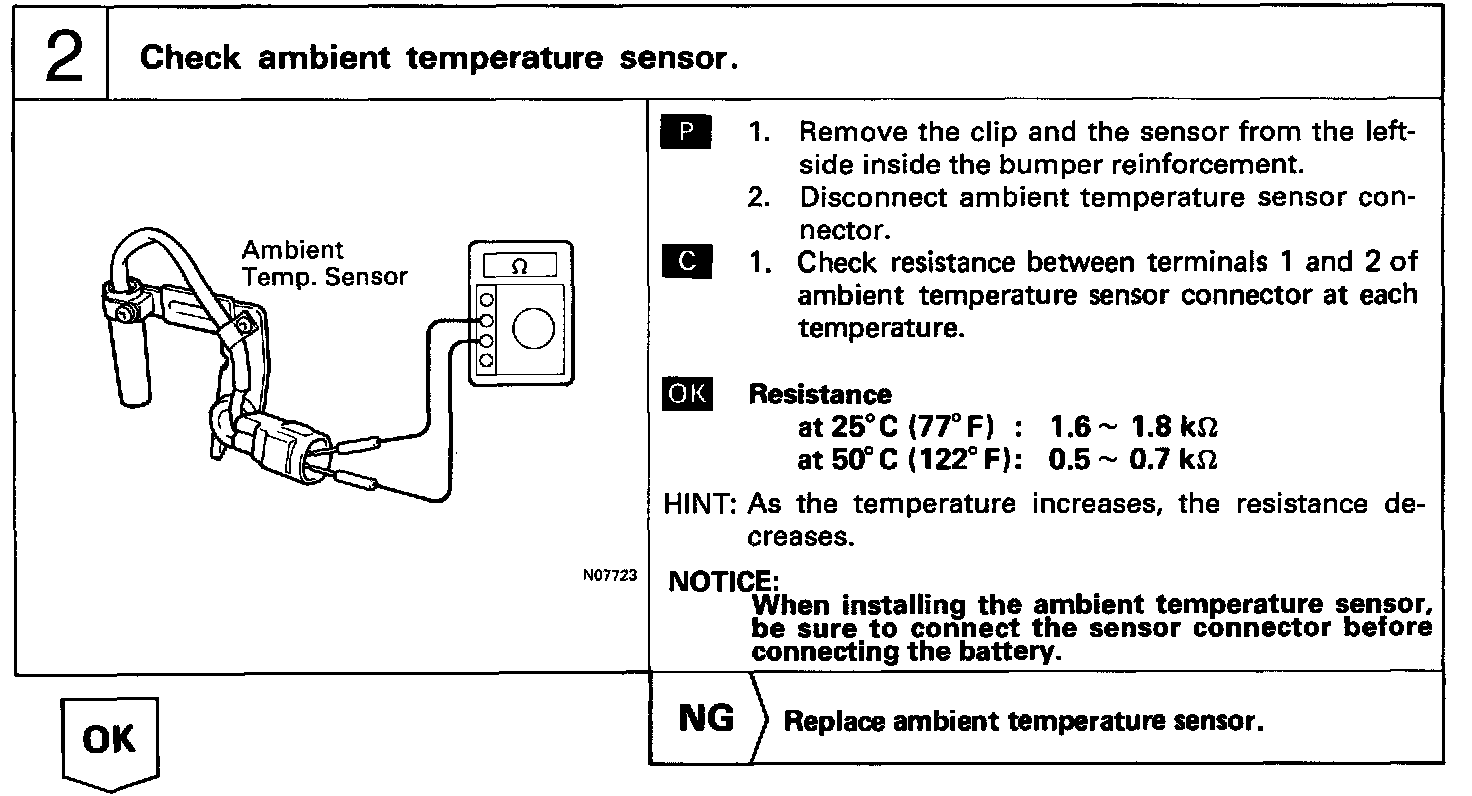

Step 2:

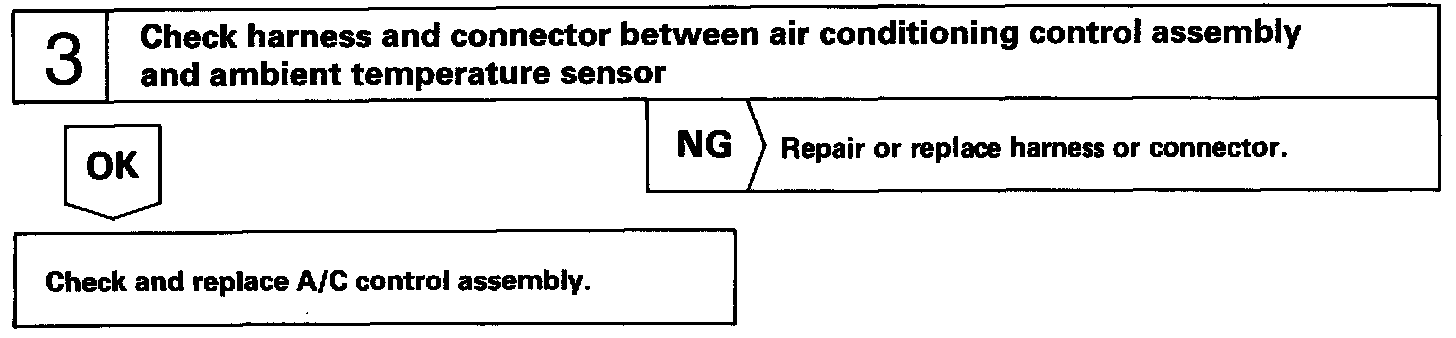

Step 3:
