Detecting Condition

NOTE: In this circuit, diagnoses can only be made in the test mode.

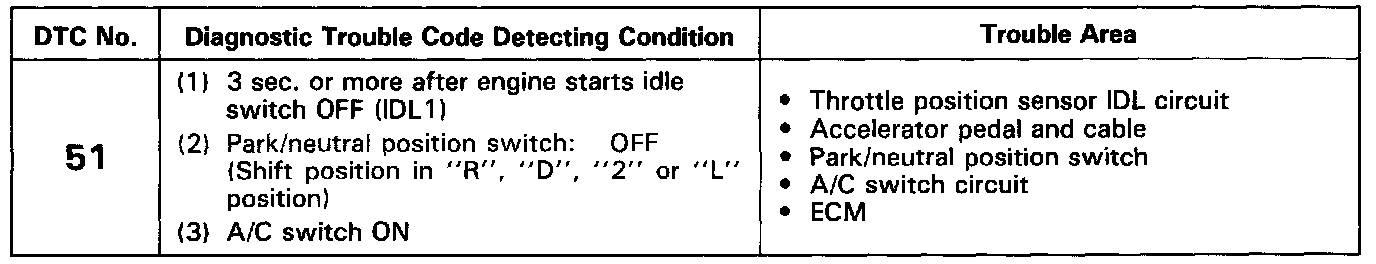

DETECTING CONDITION

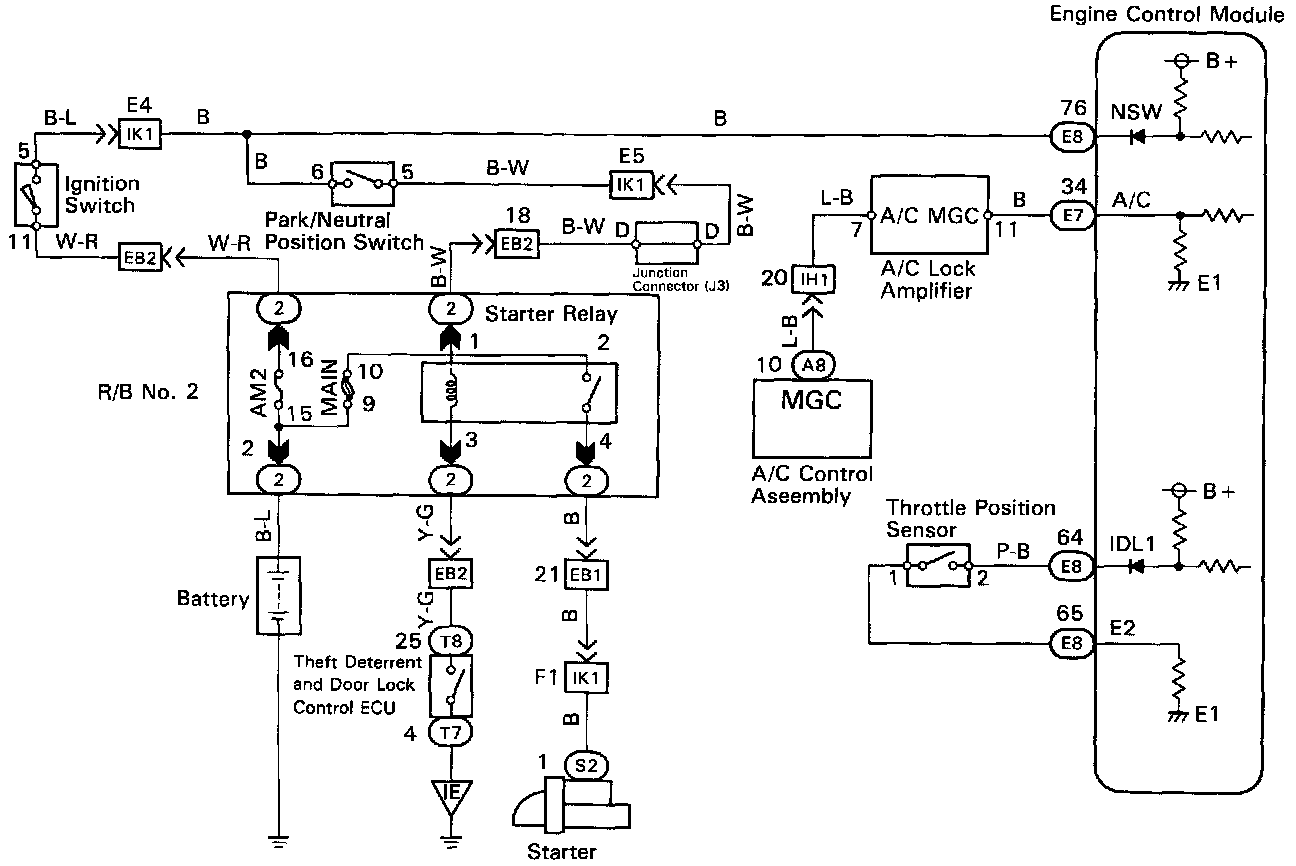

WIRING DIAGRAM
