Home
>>
Lexus
>>
1995
>>
GS 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Engine Control System
>>
DTC 42
>>
Detecting Condition
Detecting Condition
HINT:
In test mode, diagnostic trouble code 42 is output when vehicle speed is 5 km/h (3 mph) or below.

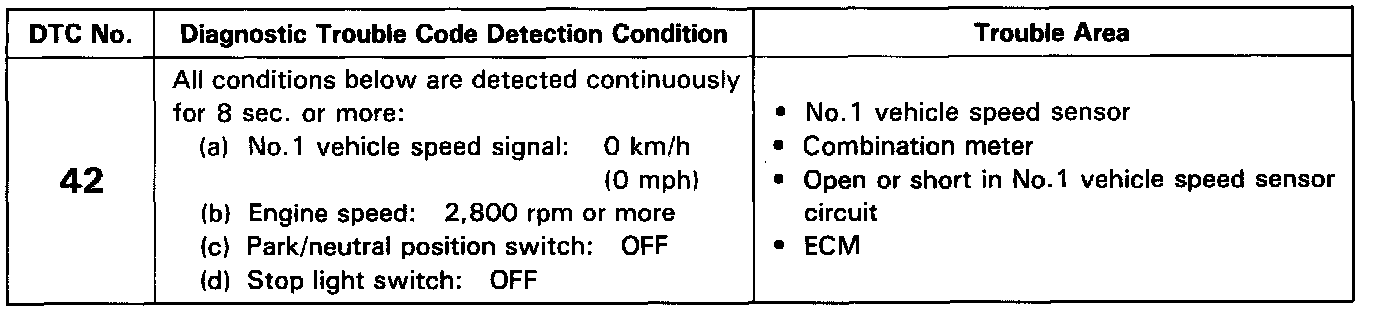

DETECTING CONDITION
WIRING DIAGRAM
