Symptom Related Diagnostic Procedures
HOW TO USE MATRIX CHARTSIf a normal code is displayed during the diagnostic trouble code check but the trouble still occurs, check the circuits for each symptom in the order given in the charts.
The Matrix Chart is divided into 3 sections:
- SECTION 1: Electronic Circuit Matrix Chart.
- SECTION 2: On-vehicle Repair Matrix Chart.
- SECTION 3: Off-vehicle Repair Matrix Chart.
When troubleshooting, check Section 1 first.
If instructions are given in Section 1 to proceed to Section 2 or 3, proceed as instructed.
1. If the instruction Proceed to next circuit inspection shown on matrix chart is given in the flow chart for each circuit, proceed to the circuit with the next highest number in the table to continue the check.
2. If the trouble still occurs even though there are no abnormalities in any of the other circuits, then check and replace the ECM.

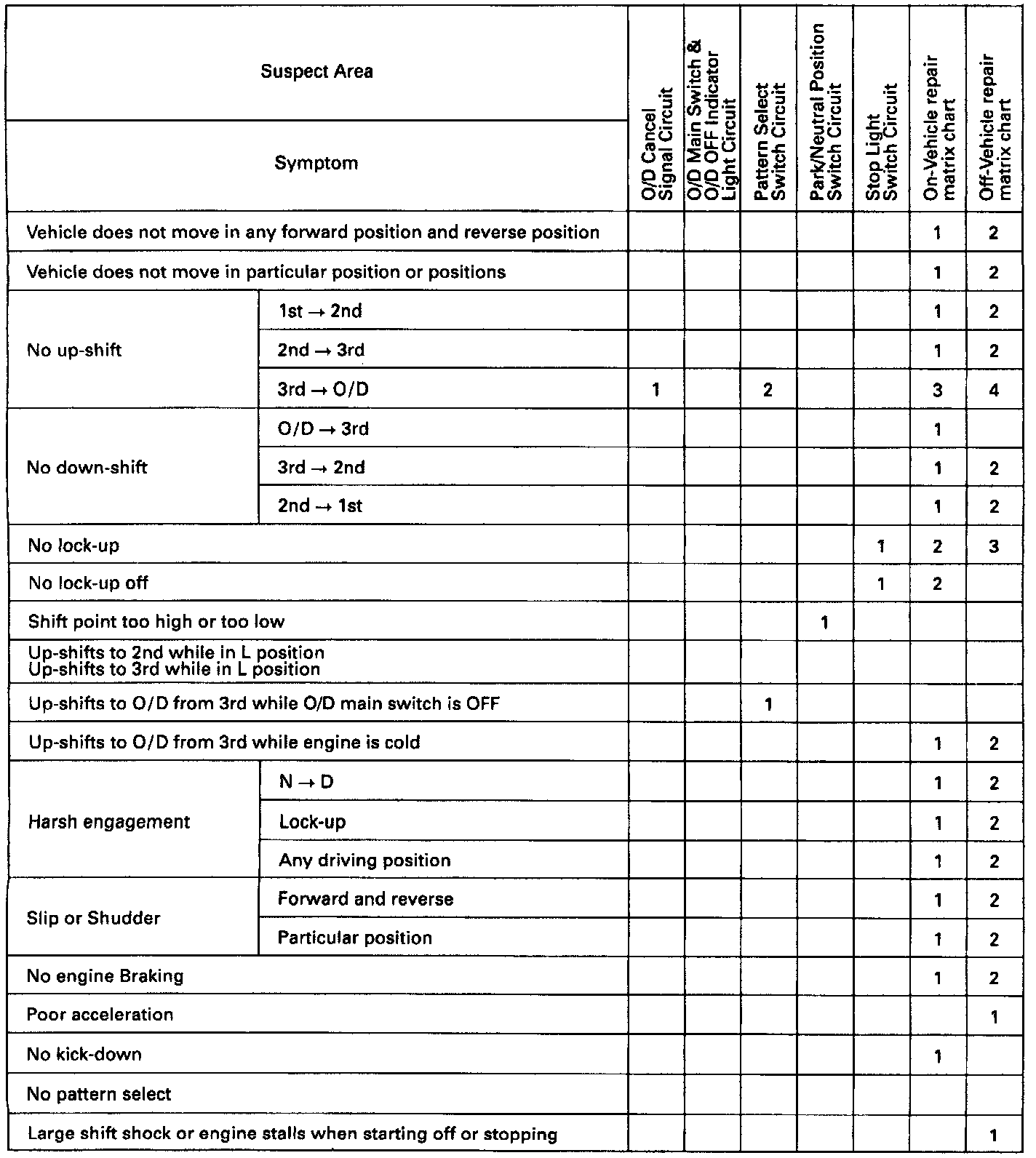

SECTION 1. ELECTRONIC CIRCUIT

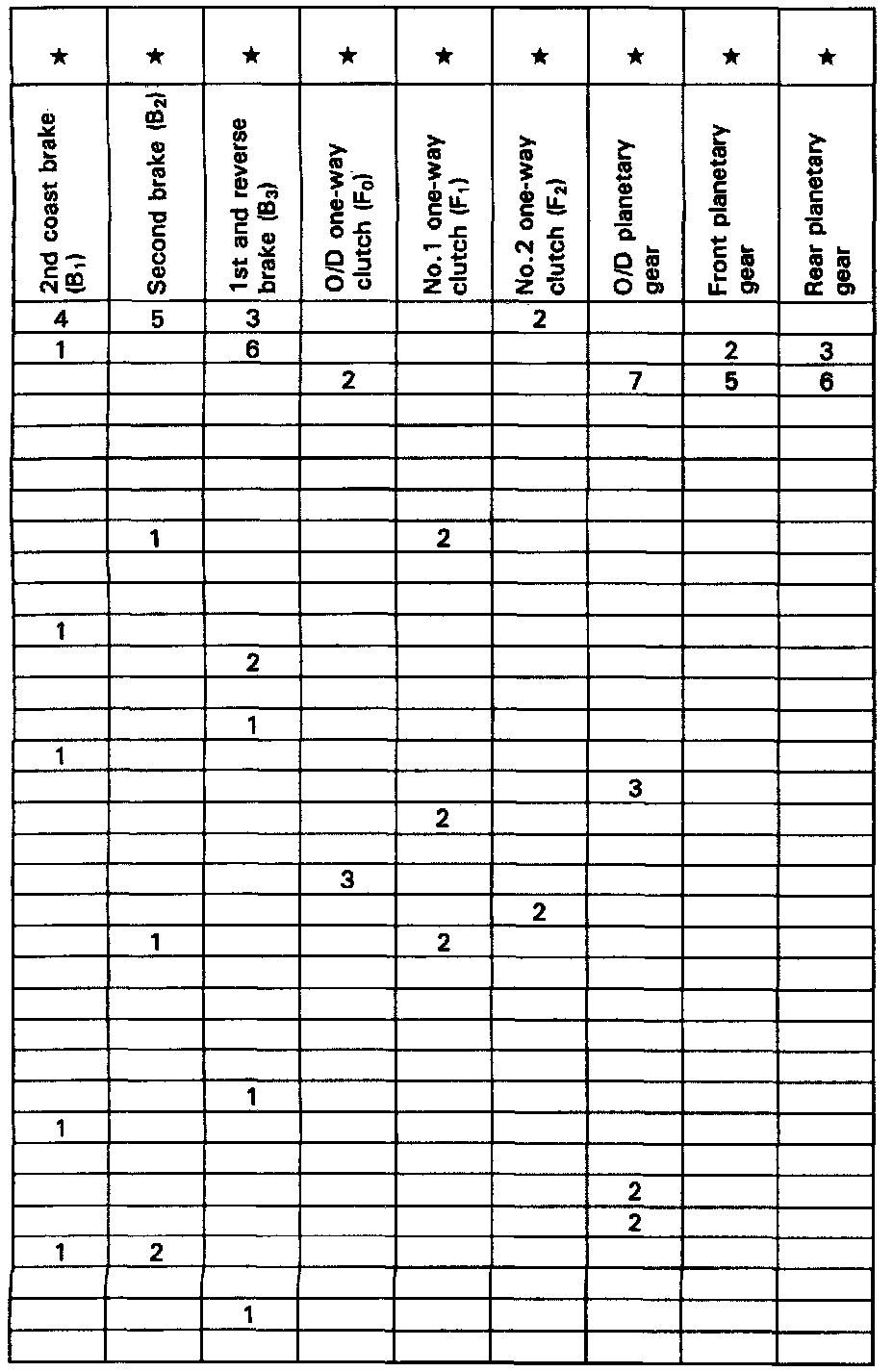

SECTION 2. ON-VEHICLE REPAIR

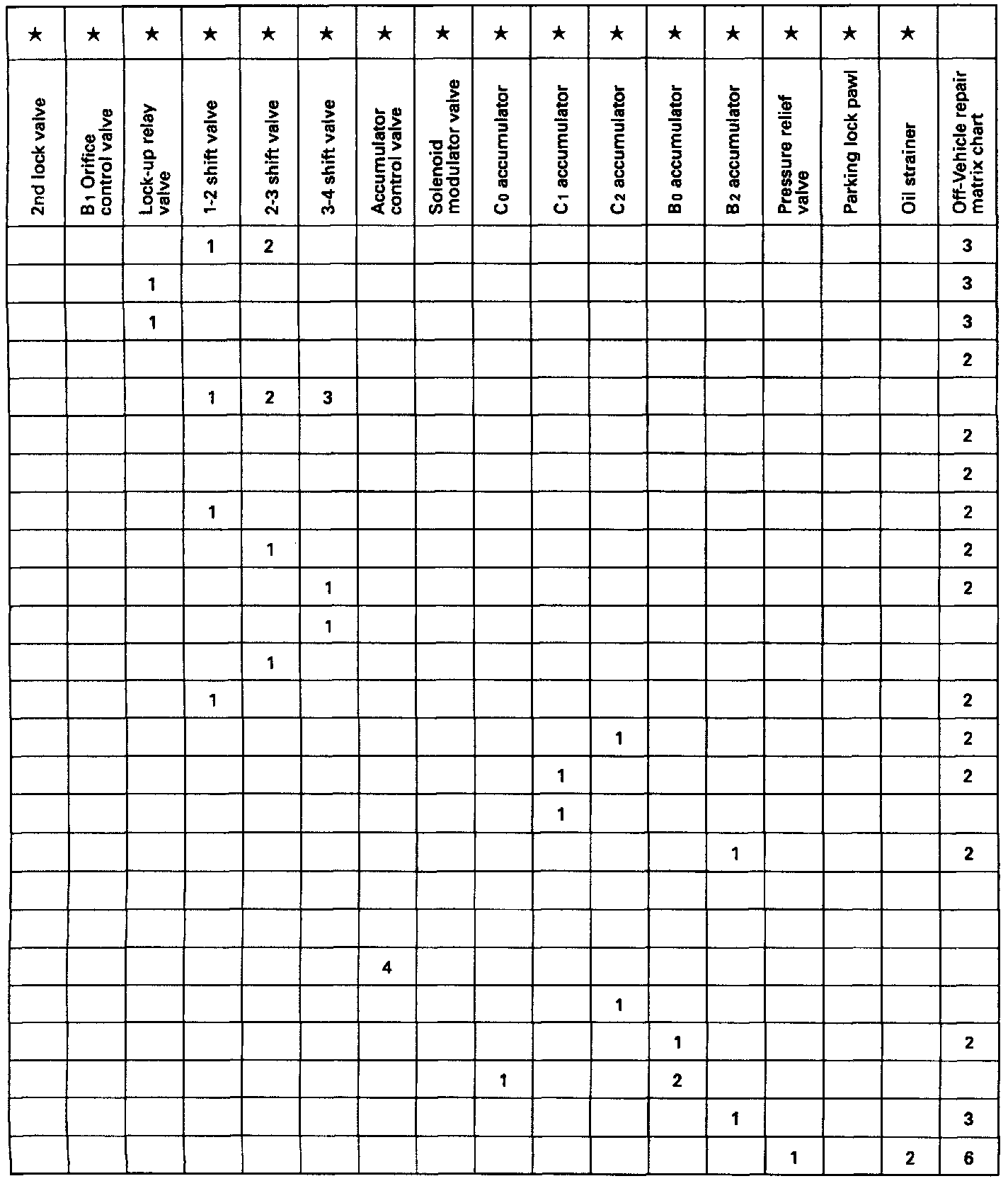

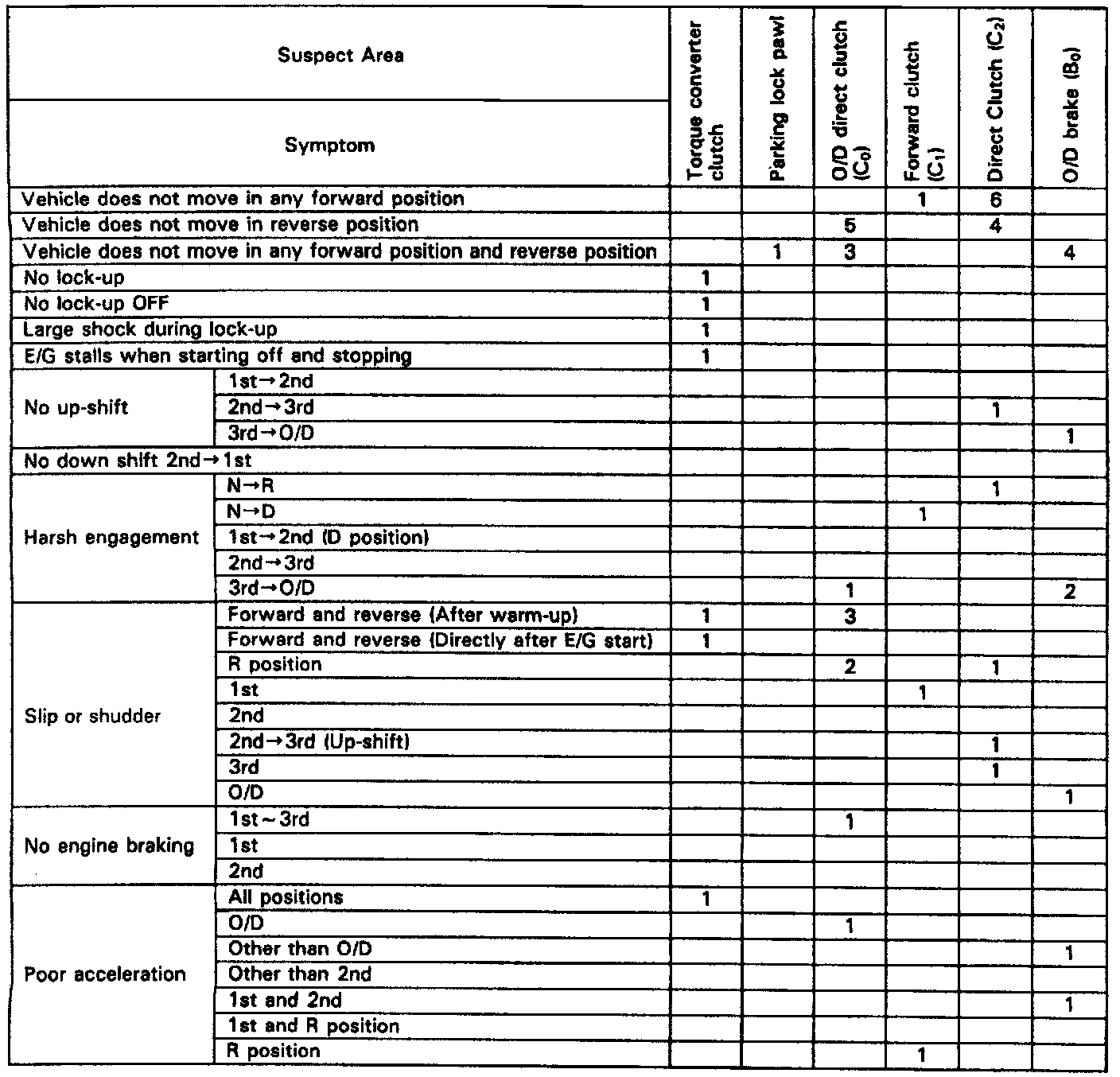

SECTION 3. OFF-VEHICLE REPAIR
