Suspension - Squeak/Groan Noises
SUSPENSIONSU95-002
FEBRUARY 24, 1995
ES 300
To reduce suspension squeak / groan noises, the following changes have been made:

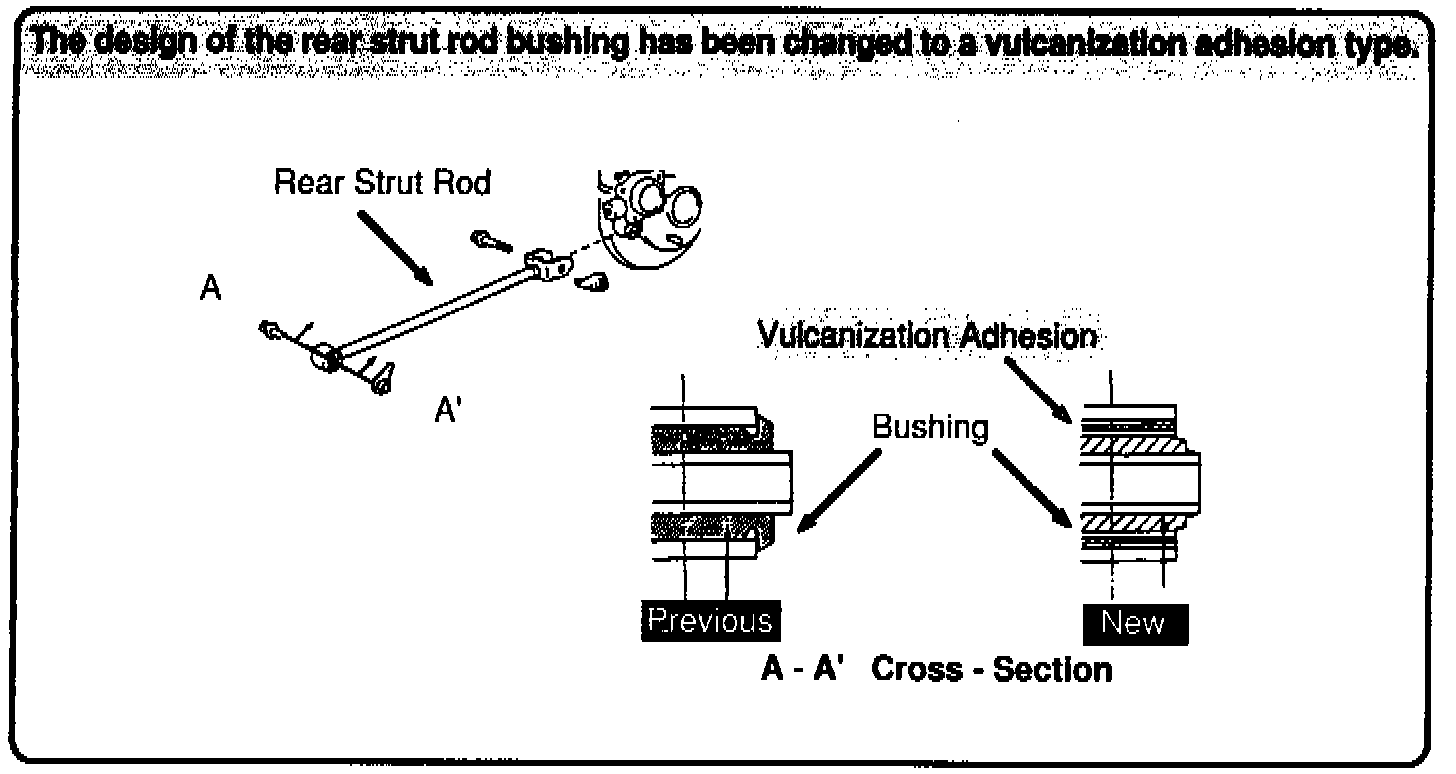

^ Rear Strut Rod Bushing - Design changed to vulcanization adhesion type
^ Rear Stabilizer Bar Bushing - Material changed to an improved self-lubricating type
^ Front Stabilizer Bar Bushing - Material changed to self-lubricating type

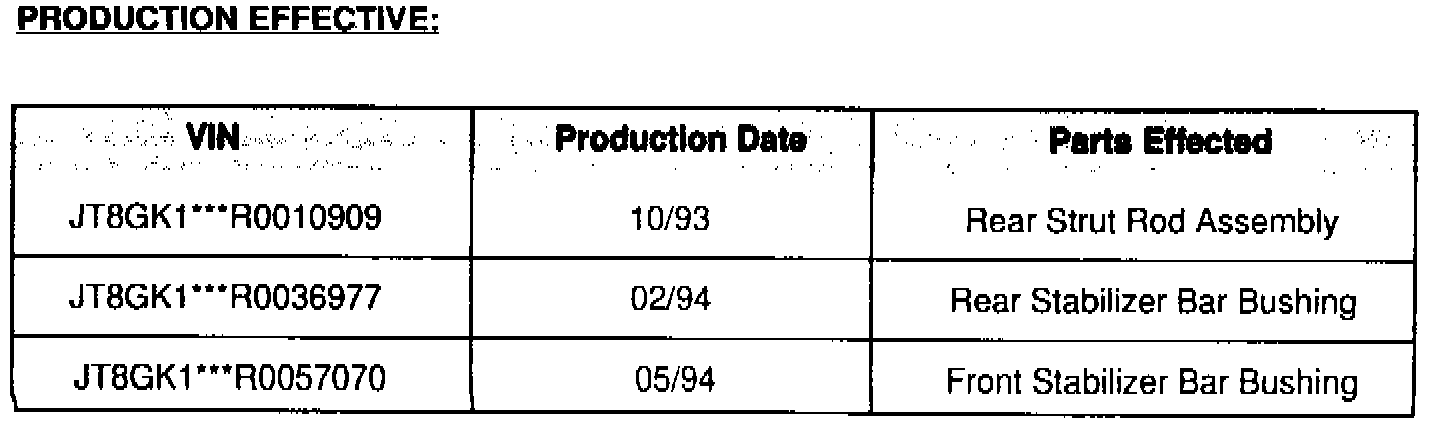

PRODUCTION EFFECTIVE

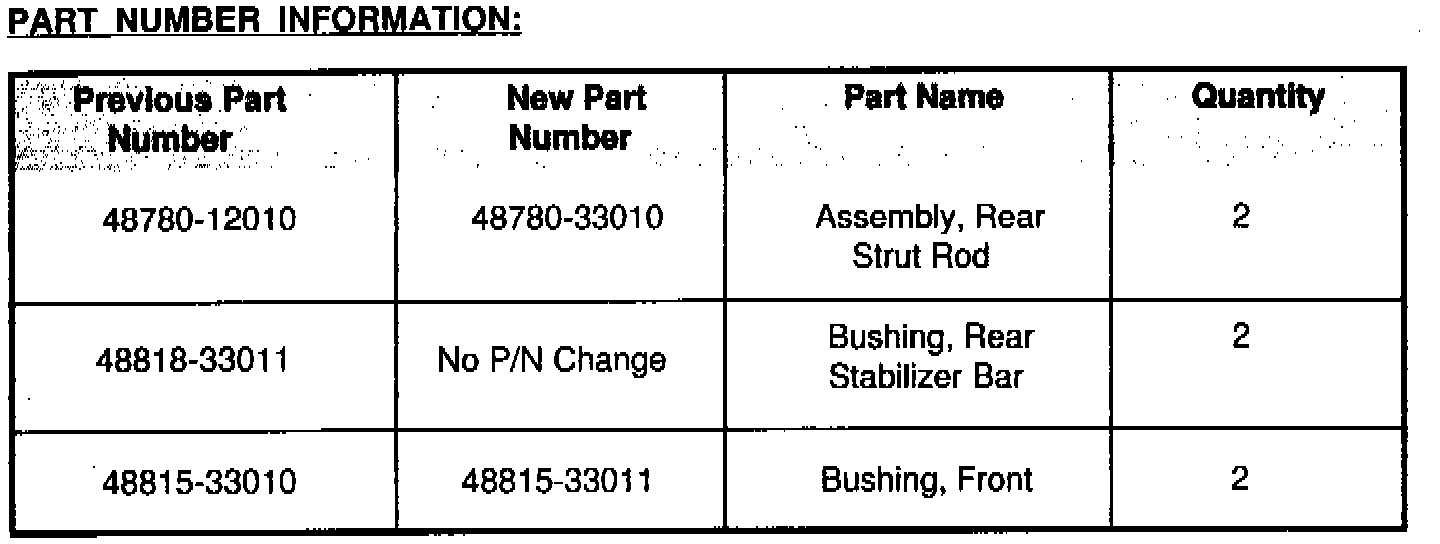

PART NUMBER INFORMATION
NOTE:
New parts can be used on vehicles built before and after production changes.
The new rear stabilizer bar bushing utilizes the same part number, but can be identified by an "S" emboss as illustrated.

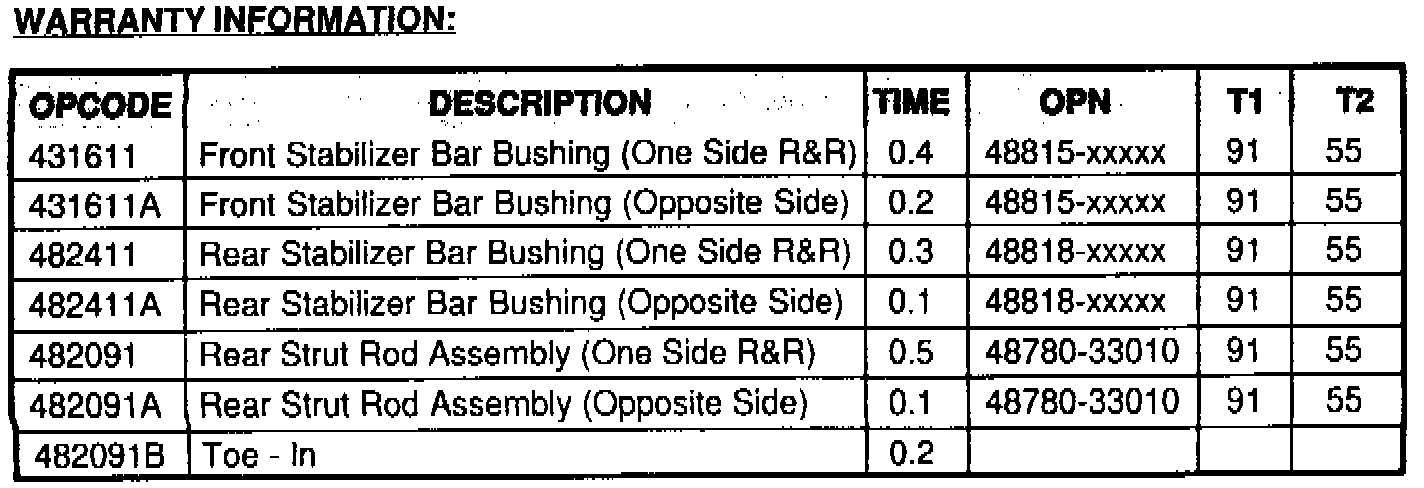

WARRANTY INFORMATION
