Ignition Coil: Locations

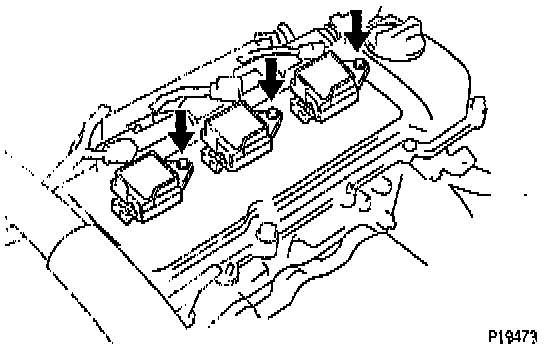

The ignition coils are mounted on the valve covers of each cylinder bank, on top of each spark plug.
