Fuel Tank: Testing and Inspection

PRECAUTIONS
1. Always use new gaskets when replacing the fuel tank or component parts.
2. Apply the proper torque to all parts tightened.

FUEL LINES AND CONNECTIONS INSPECTION

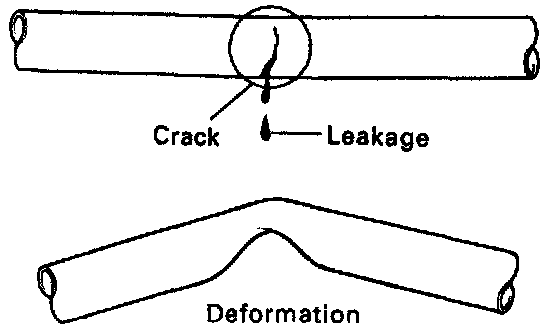

- Check the fuel lines for cracks or leakage. and all connections for deformation.
- Check the fuel tank vapor vent system hoses and connections for looseness, sharp bends or damage.




- Check the fuel tank for deformation, cracks, fuel leakage or tank band looseness.
- Check the filler neck for damage or fuel leakage.

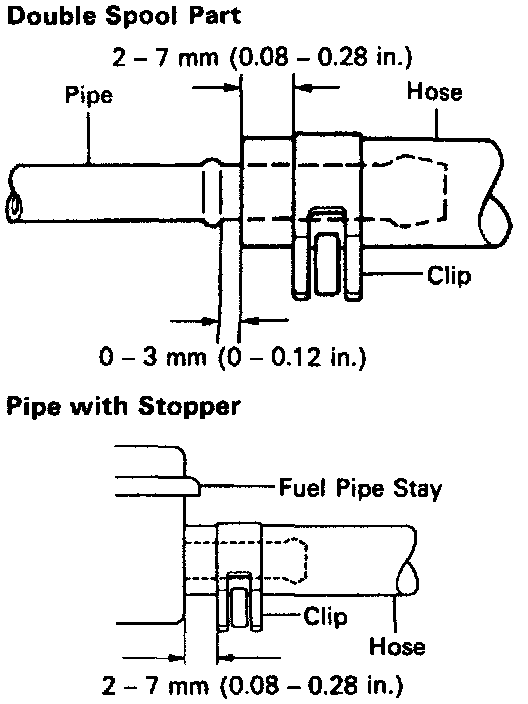

- Hose and pipe connections are as shown in the illustration.
- If a problem is found, repair or replace the parts as necessary.
