Oscilloscope Patterns and Waveforms

INSPECTION USING OSCILLOSCOPE
- With the engine idling, measure between terminals #10, #20, #30, #40, #50, #60) and E01 of ECM.

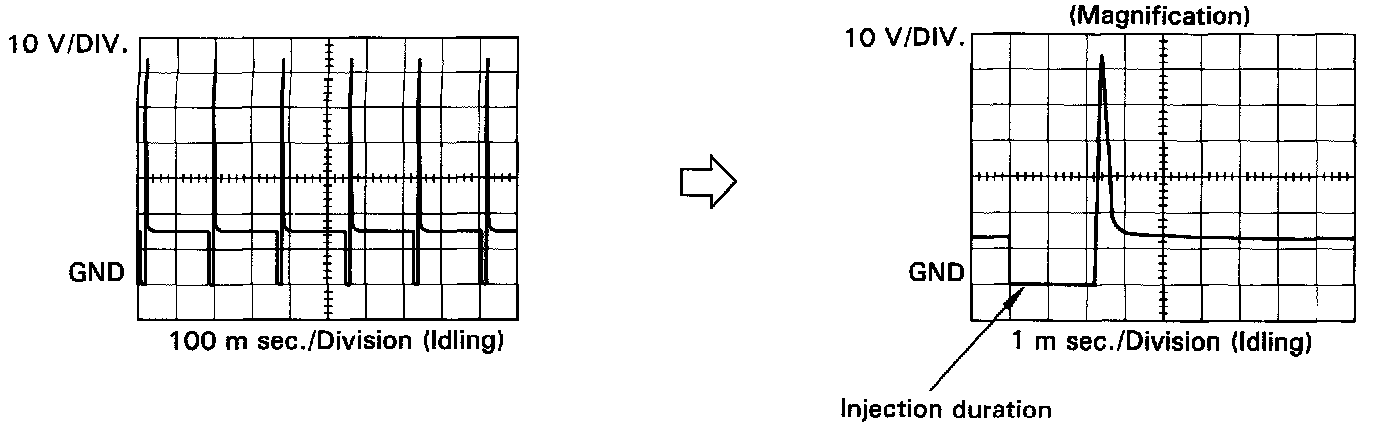

- The correct waveforms are as shown in the image.
