Emission Control Systems: Testing and Inspection

Diagnosis By Symptom:

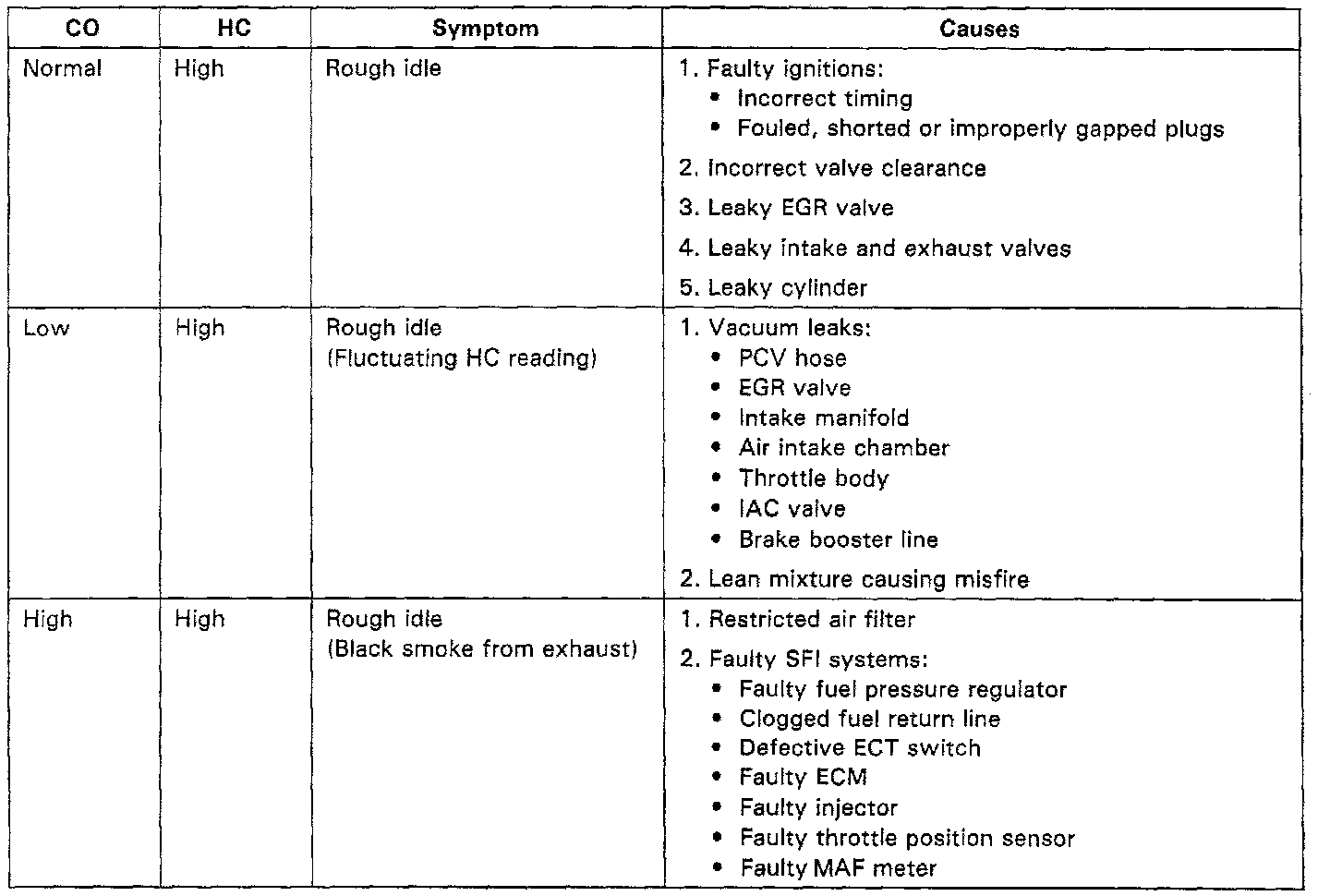

If the CO/HC concentration does not comply with regulations, troubleshoot in the order given in the chart. Inspect the possible causes, and then correct the applicable causes as necessary.
