A/C Cut Control Circuit
>>

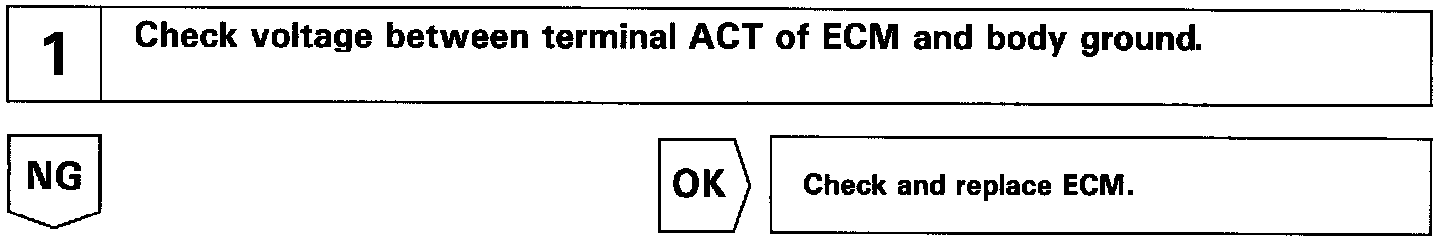

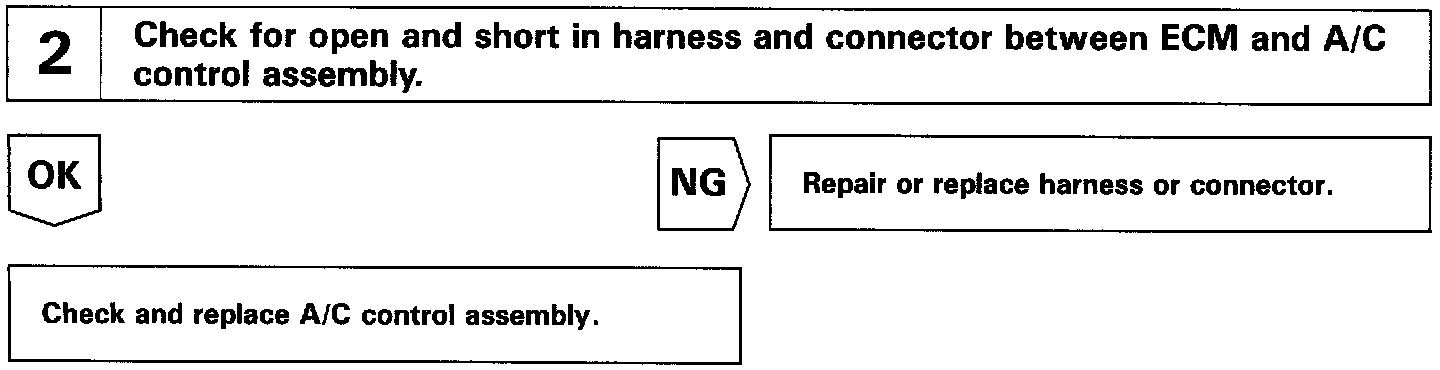

Inspection Procedure
Inspection Procedure

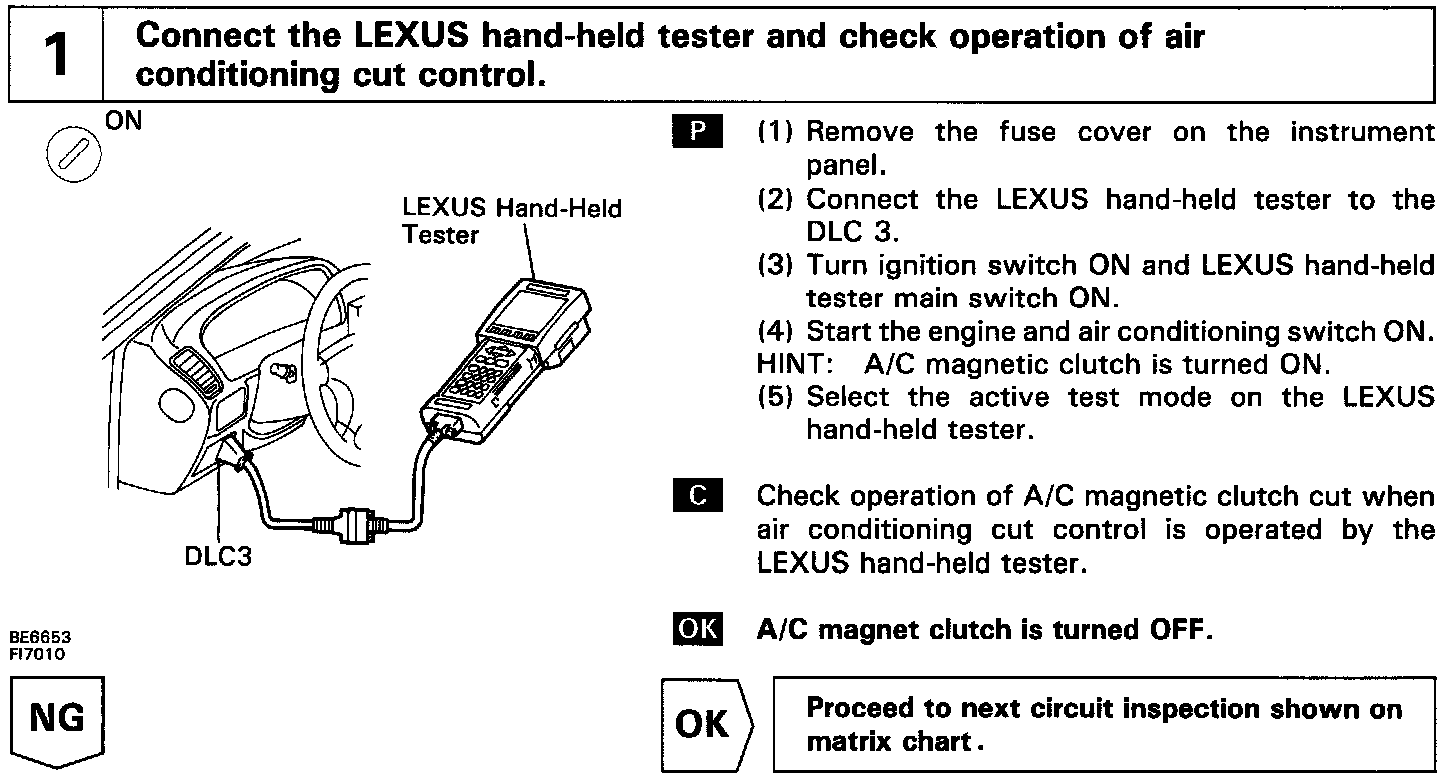

LEXUS HAND-HELD TESTER
NON-TROUBLE CODE CHARTS
OBD II SCAN TOOL (excluding LEXUS hand-held tester)
NON-TROUBLE CODE CHARTS
