IG Power Source Circuit

IG POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This is the power source for the air conditioning control assembly (contains the ECU) and servomotors, etc.

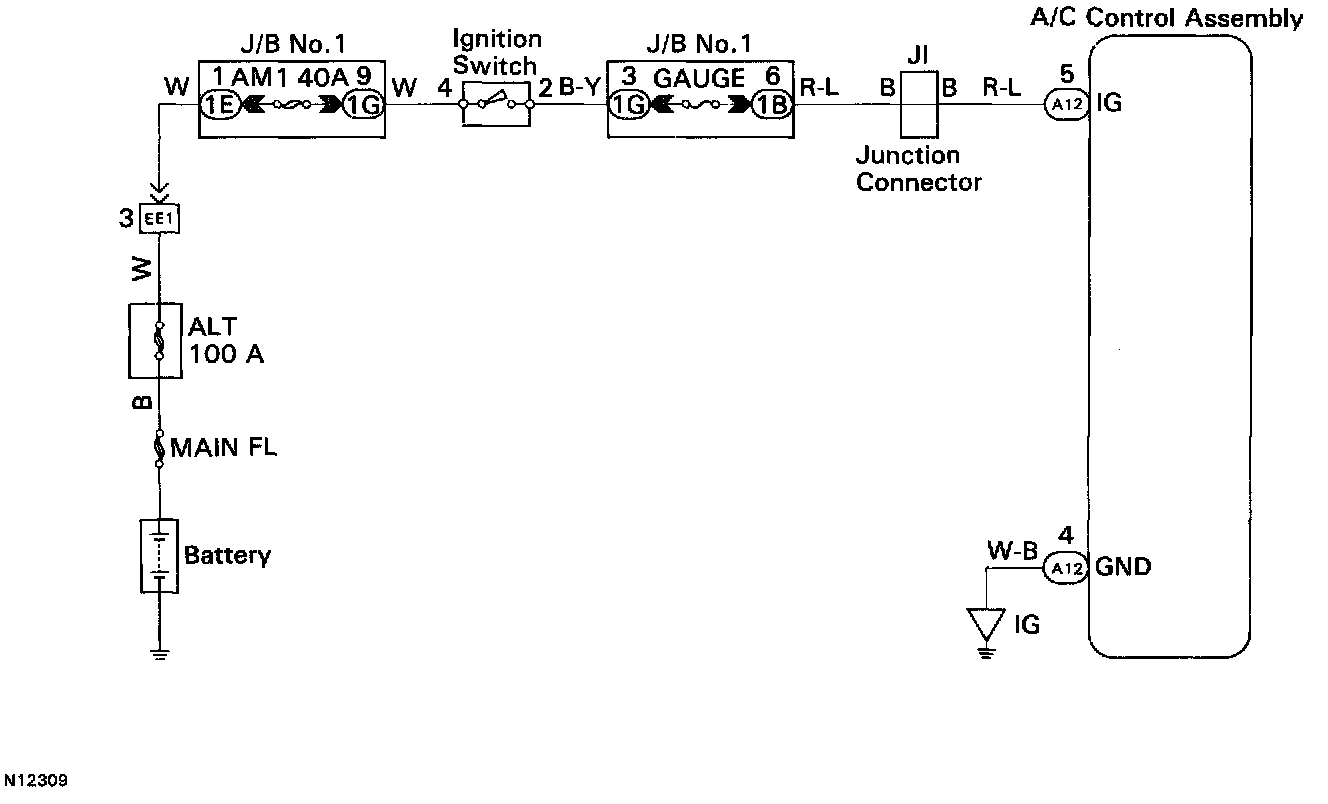

Wiring Diagram:





INSPECTION PROCEDURE

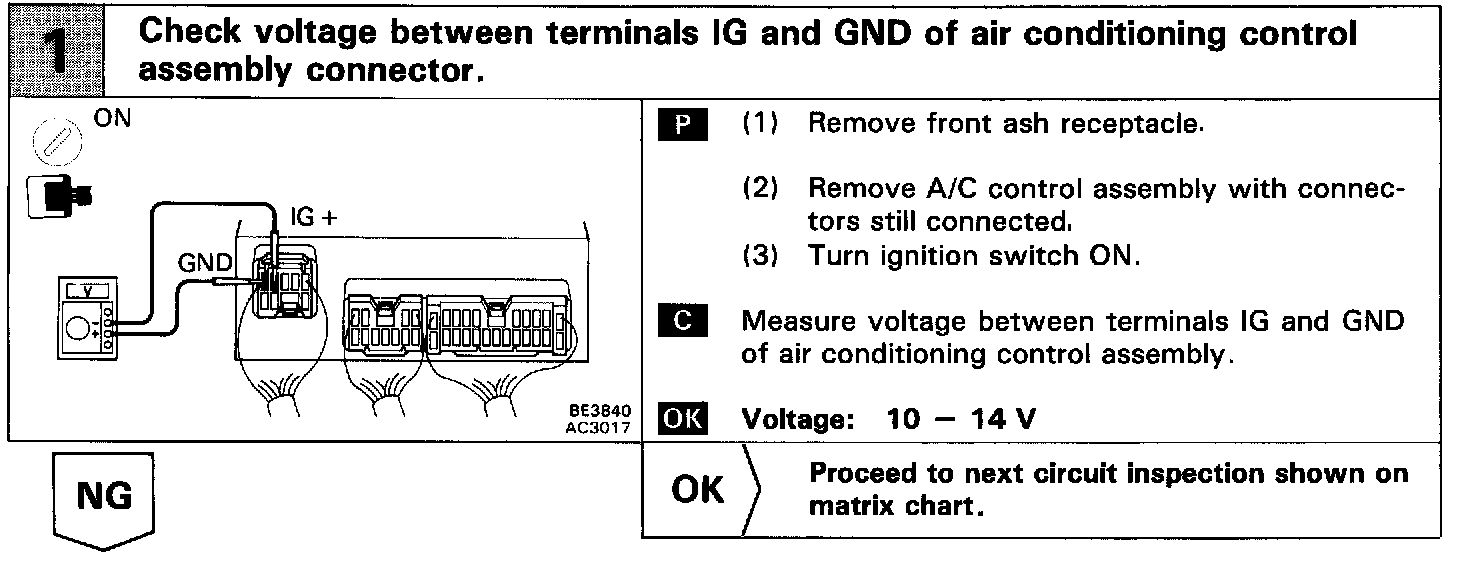

Step 1:

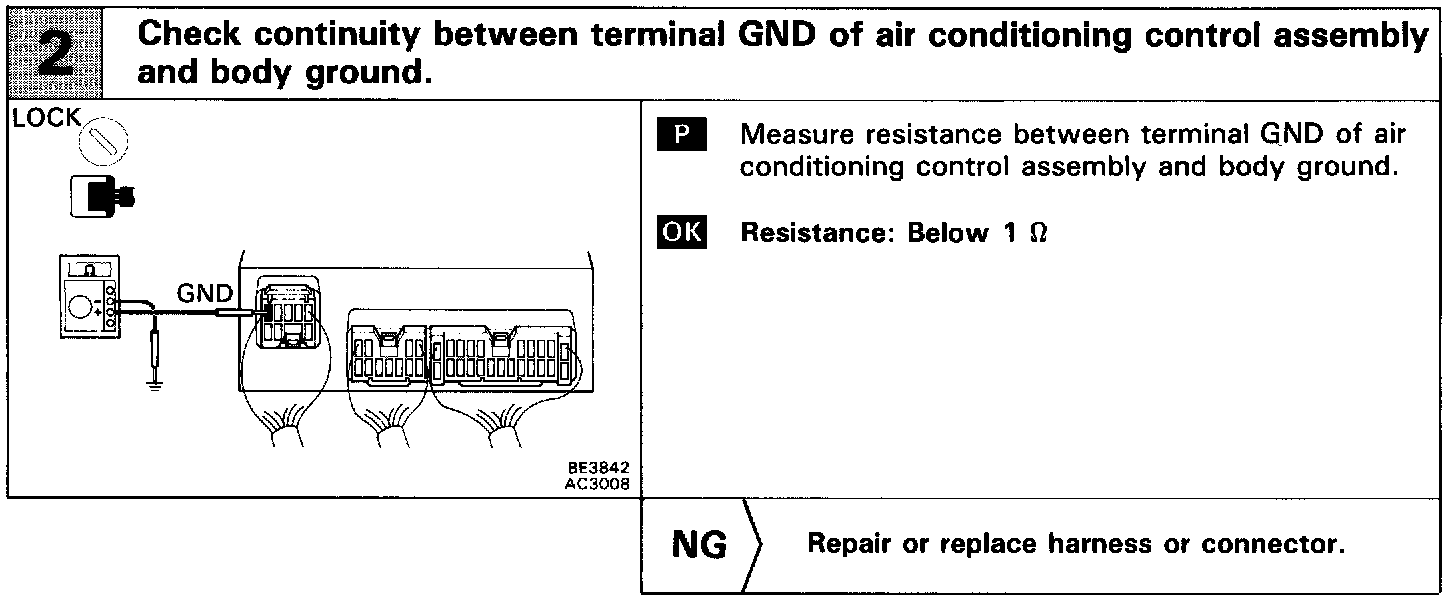

Step 2:

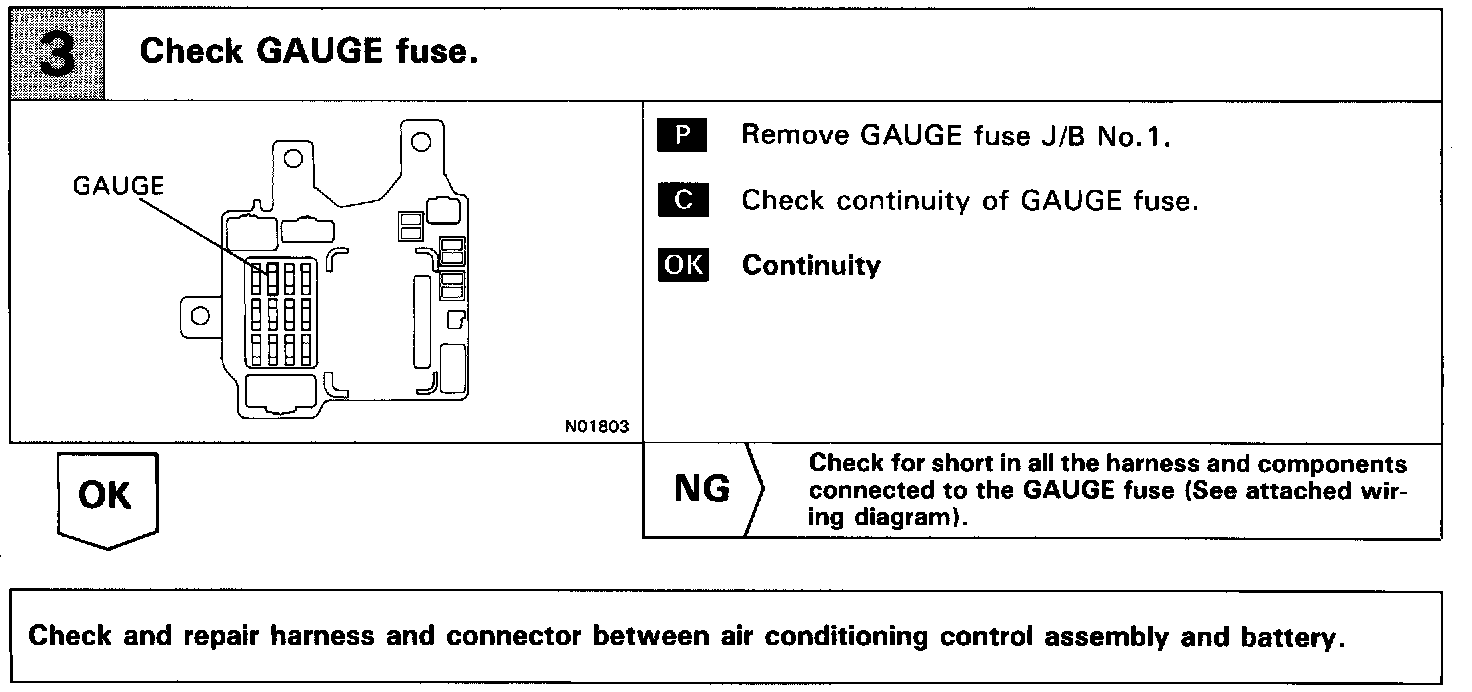

Step 3:
