Extra-Hi Relay Circuit

EXTRA-HI RELAY CIRCUIT

CIRCUIT DESCRIPTION

The extra-Hi relay is switched on by signals from the air conditioning control assembly.

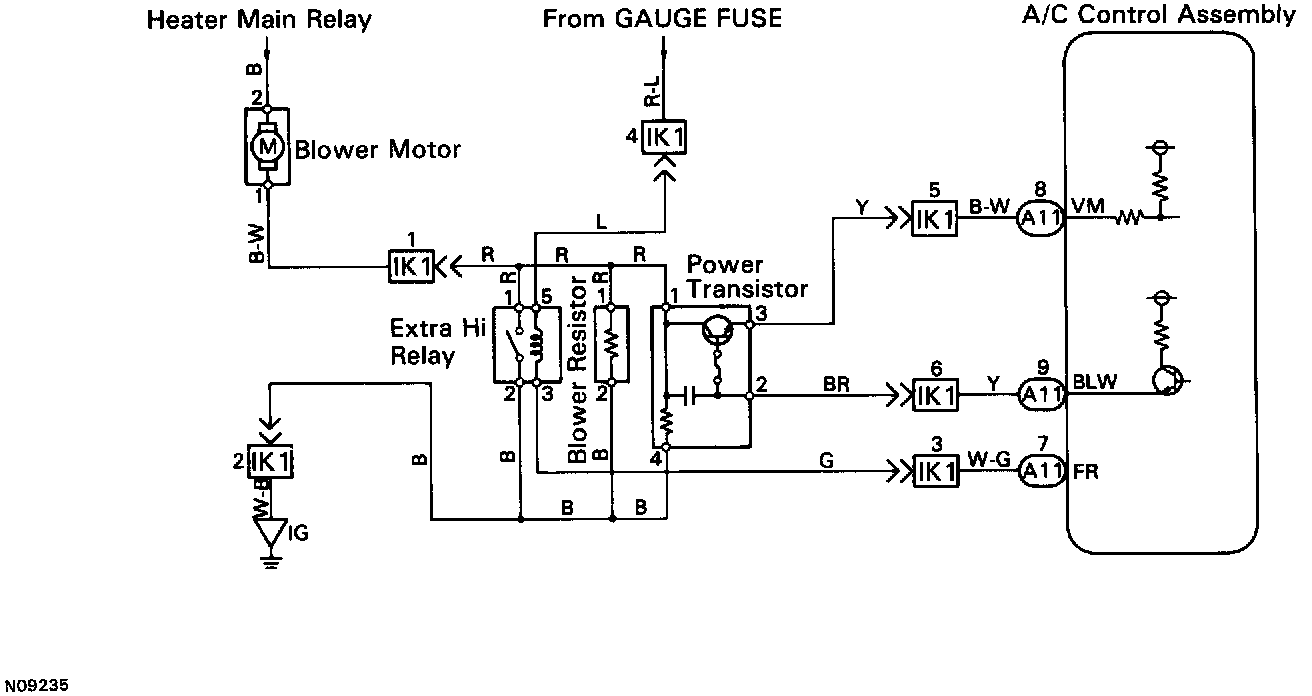

Wiring Diagram:





INSPECTION PROCEDURE

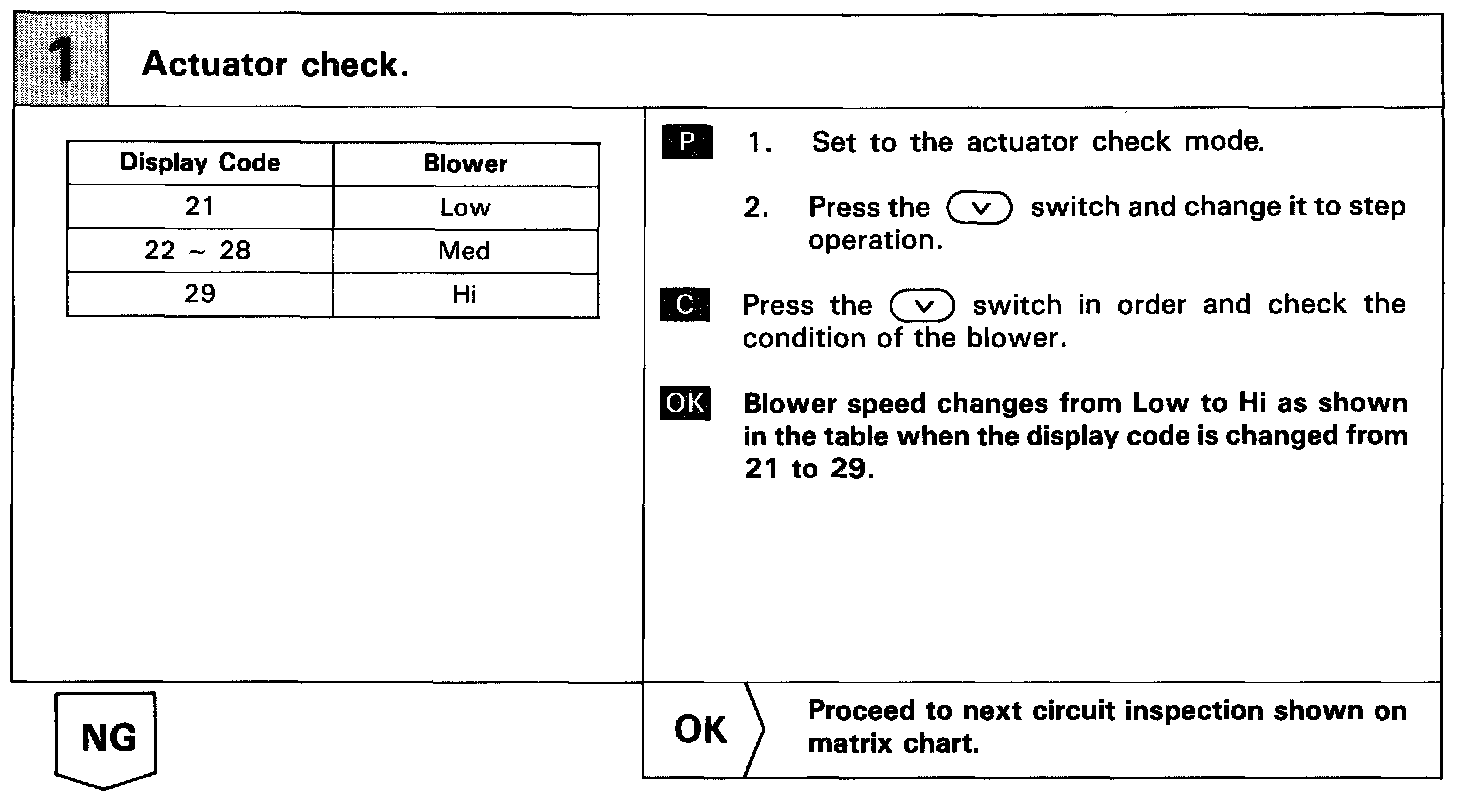

Step 1:

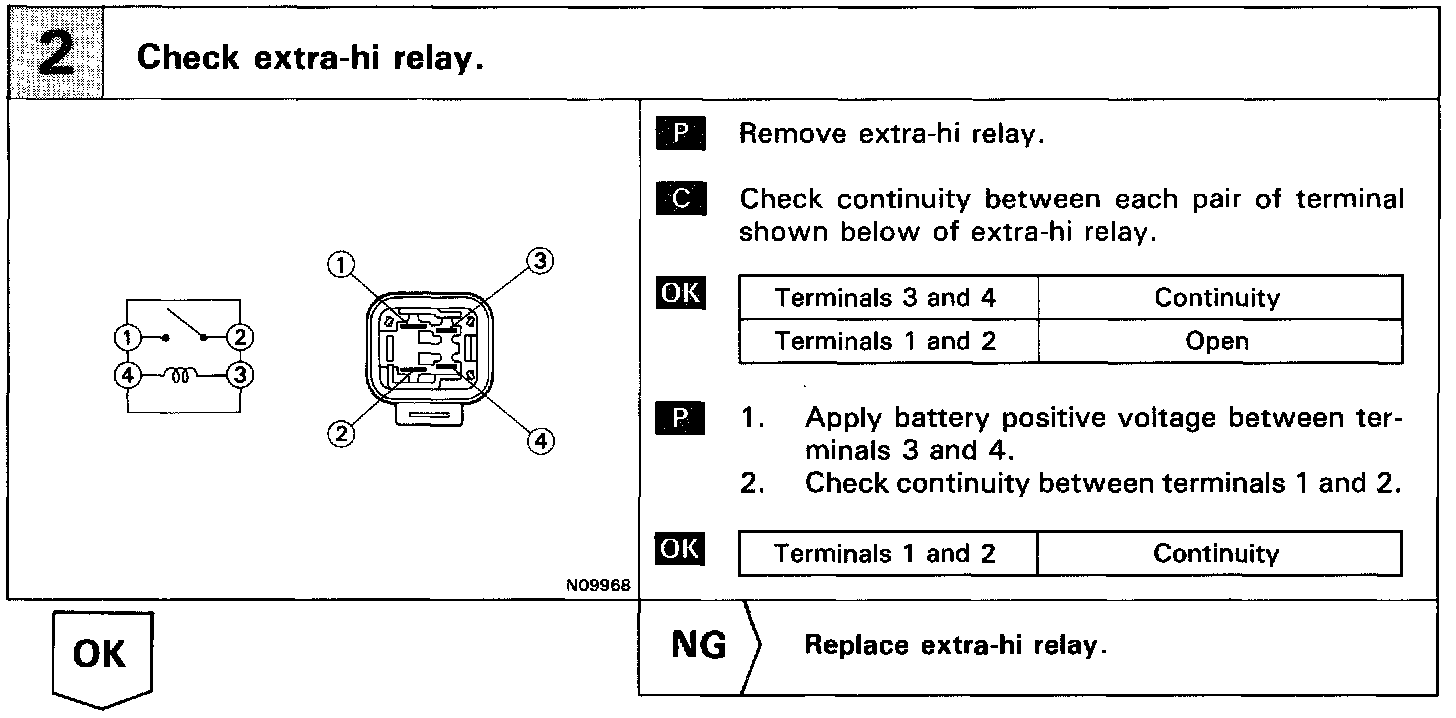

Step 2:

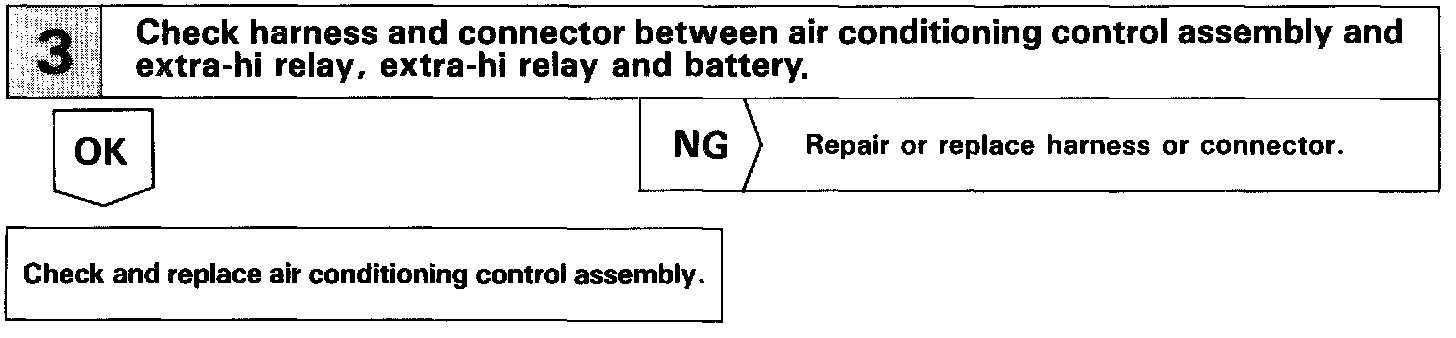

Step 3:
