Diagnosis Circuit

DIAGNOSIS CIRCUIT

CIRCUIT DESCRIPTION

This circuit sends signals to the ECU requesting output of diagnostic trouble codes.

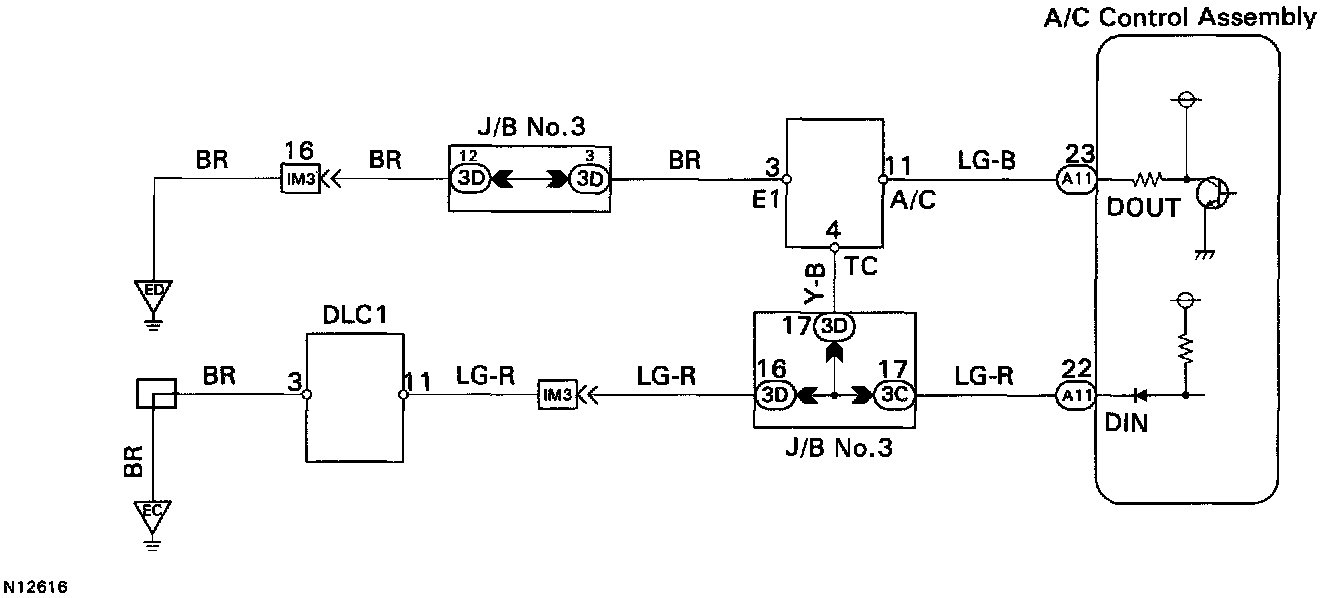

Wiring Diagram:





INSPECTION PROCEDURE

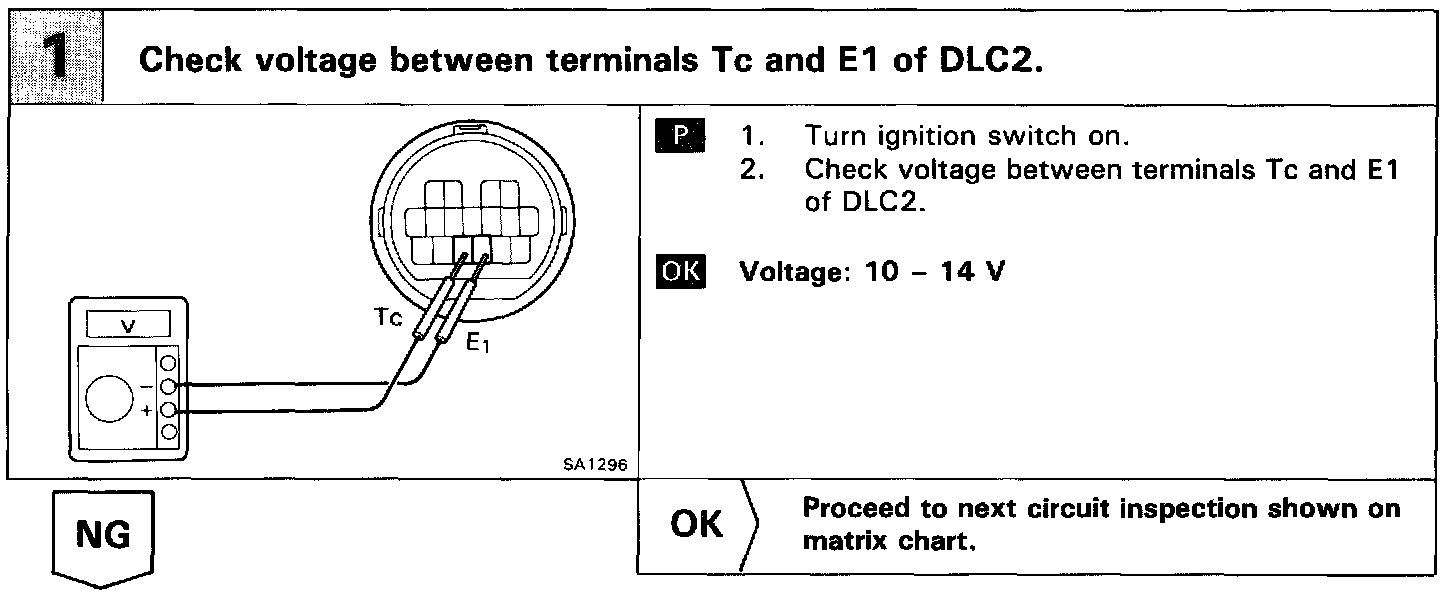

Step 1:

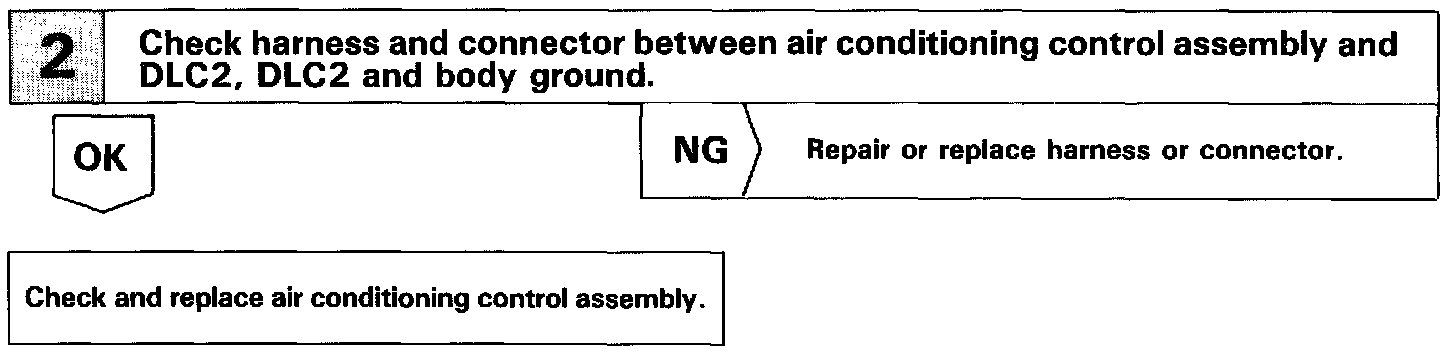

Step 2:
