Compressor Magnetic Clutch Circuit

COMPRESSOR CIRCUIT

CIRCUIT DESCRIPTION

The air conditioning control assembly outputs the magnetic clutch ON signal from terminal AC 1 to the ECM. When the ECM & TCM receives this signal, it sends a signal from terminal ACT and switches the A/C magnetic clutch relay on, thus turning on the A/C magnetic clutch.

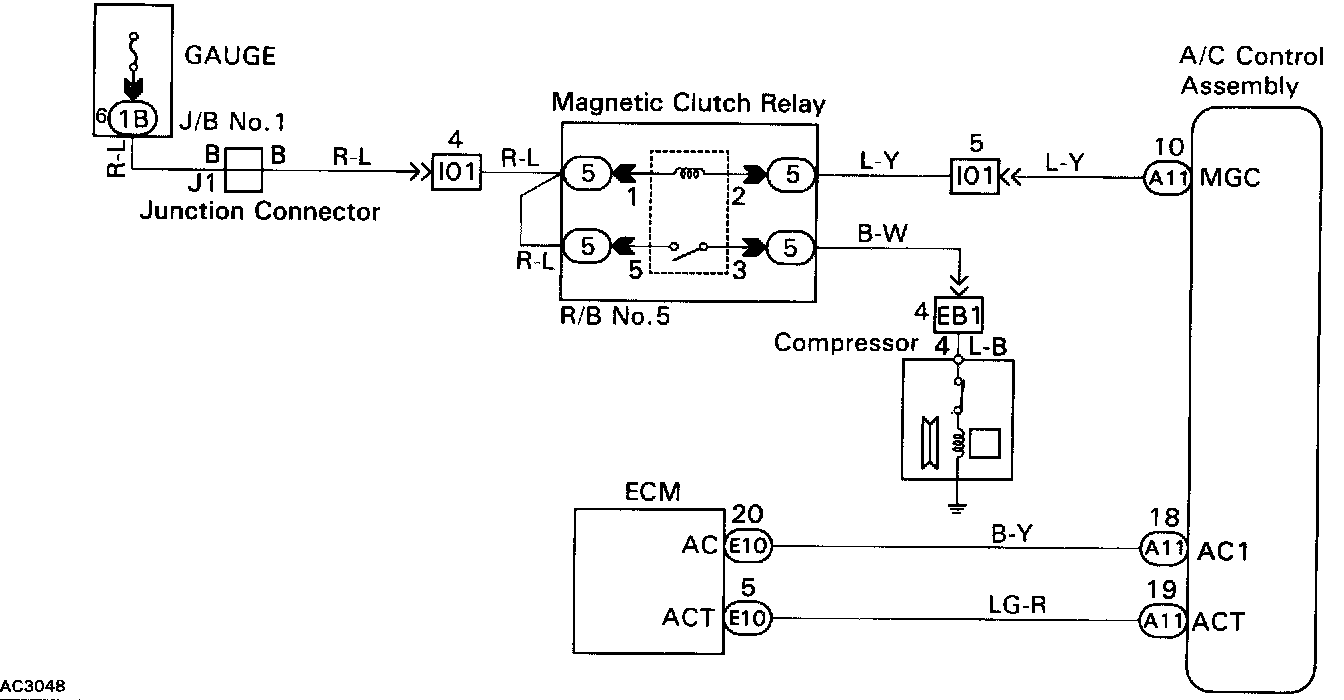

Wiring Diagram:

INSPECTION PROCEDURE

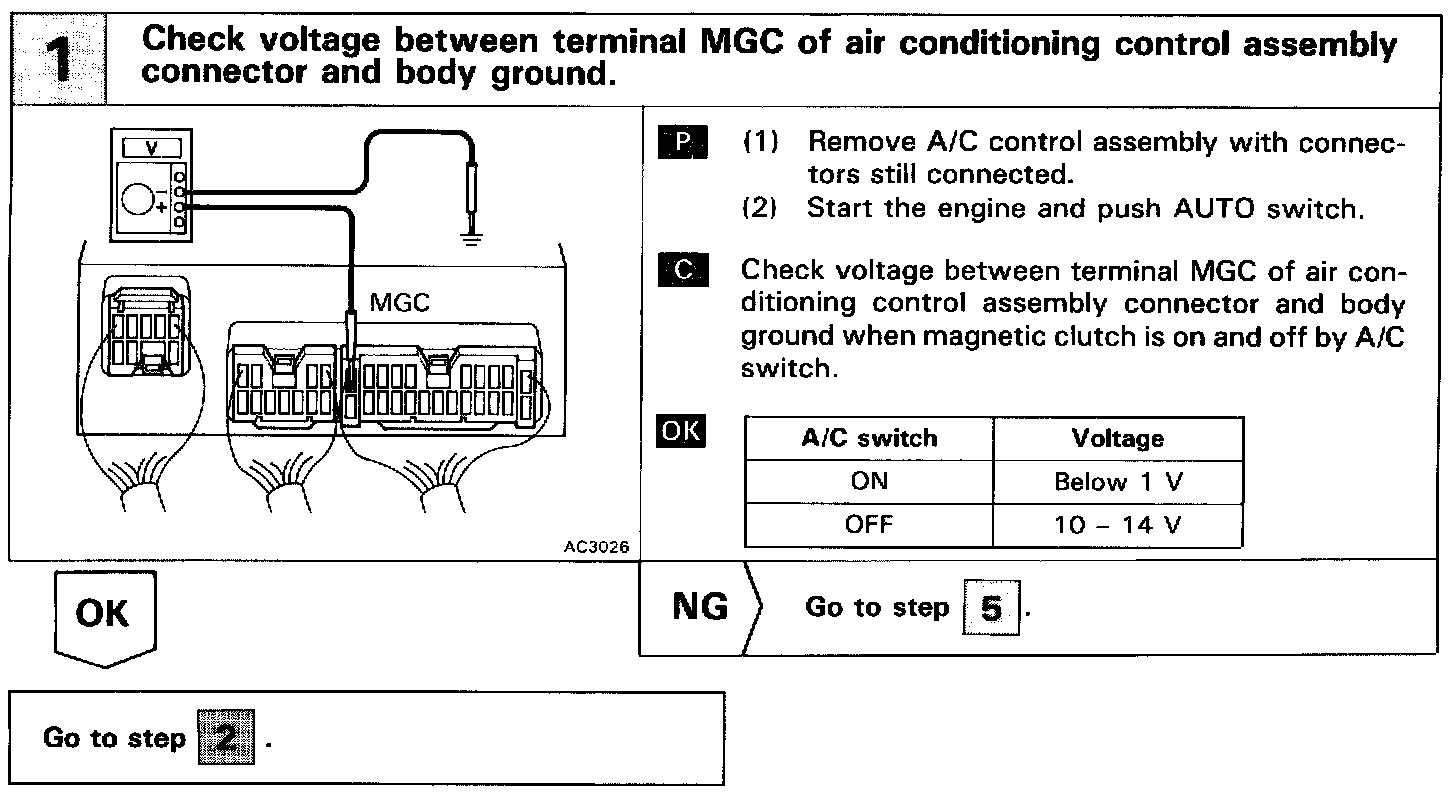

Step 1:

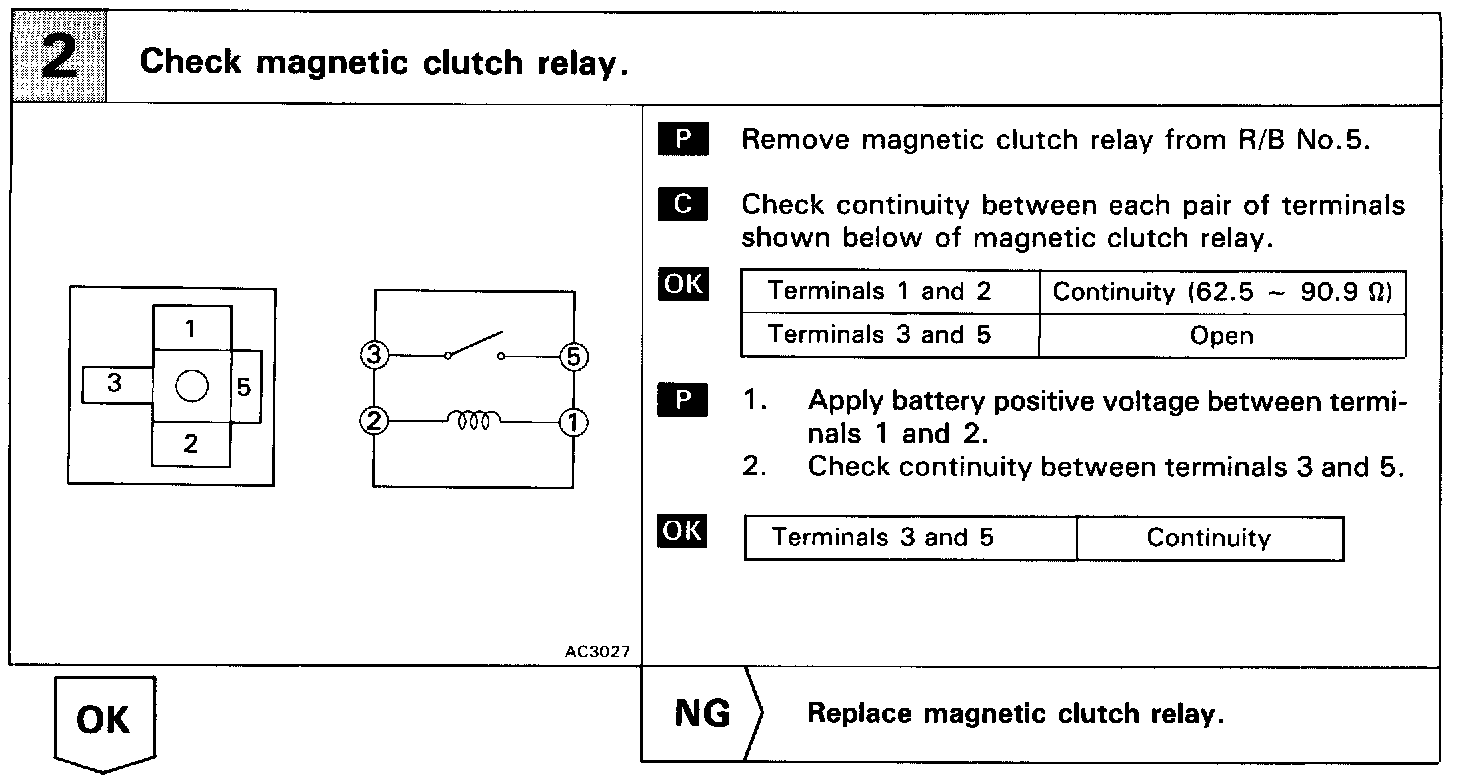

Step 2:

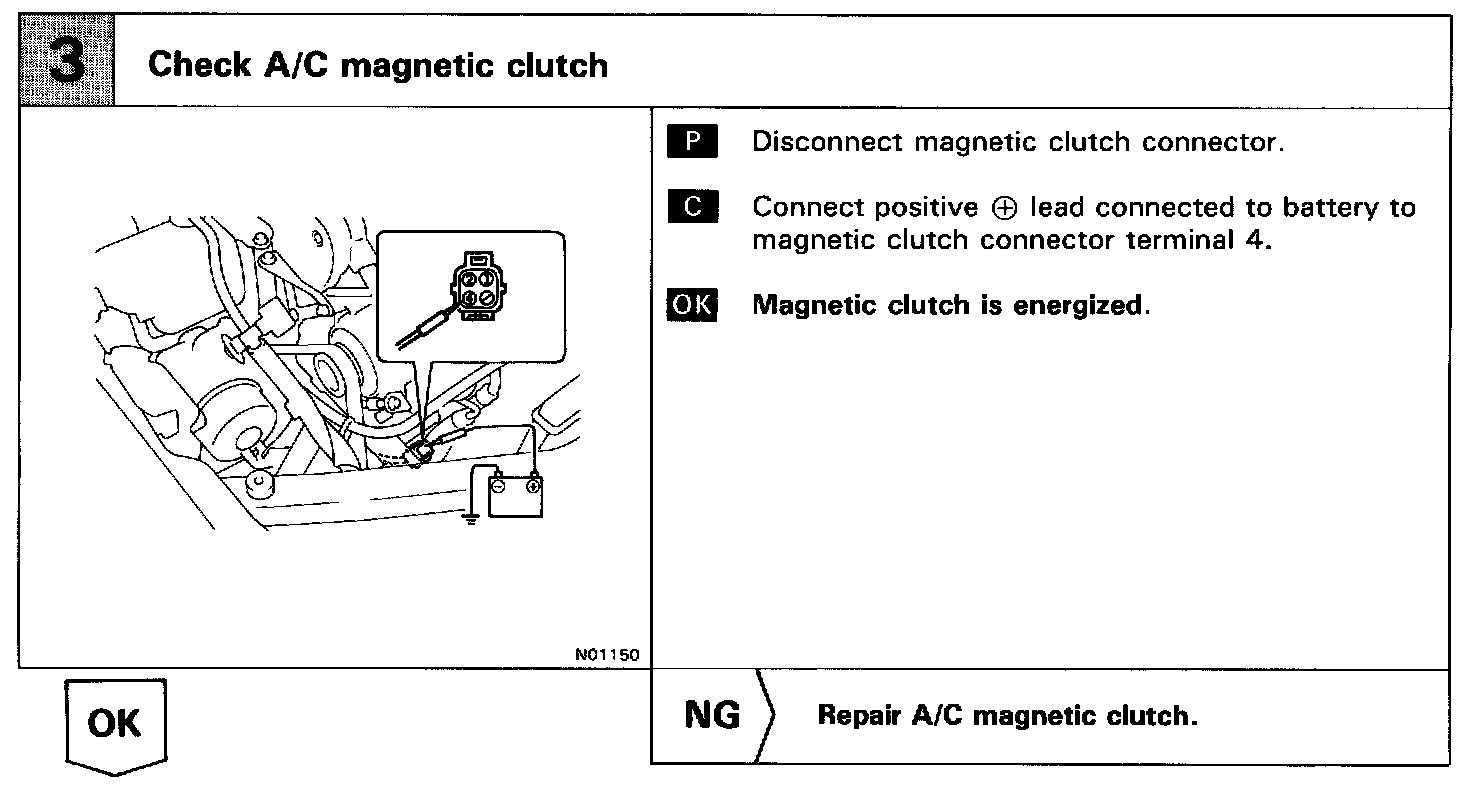

Step 3:

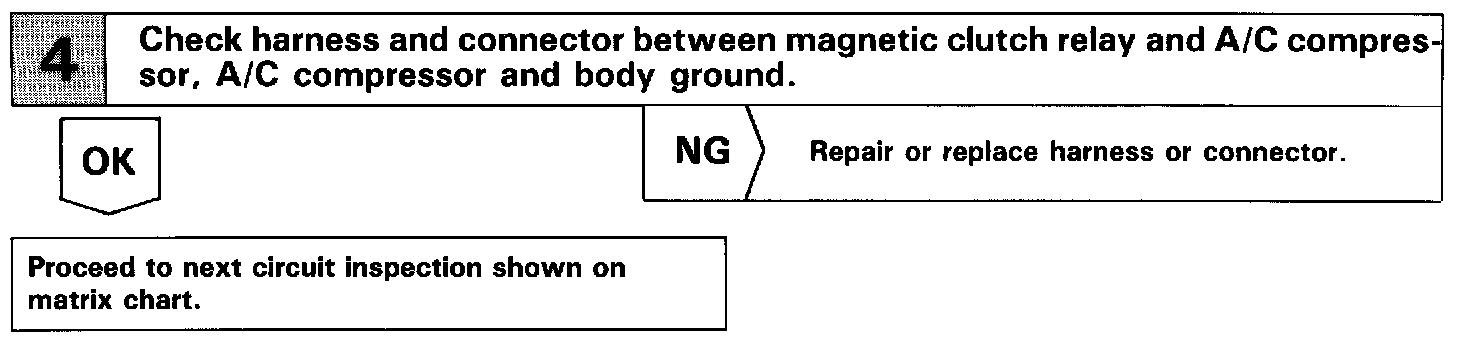

Step 4:

Step 5:

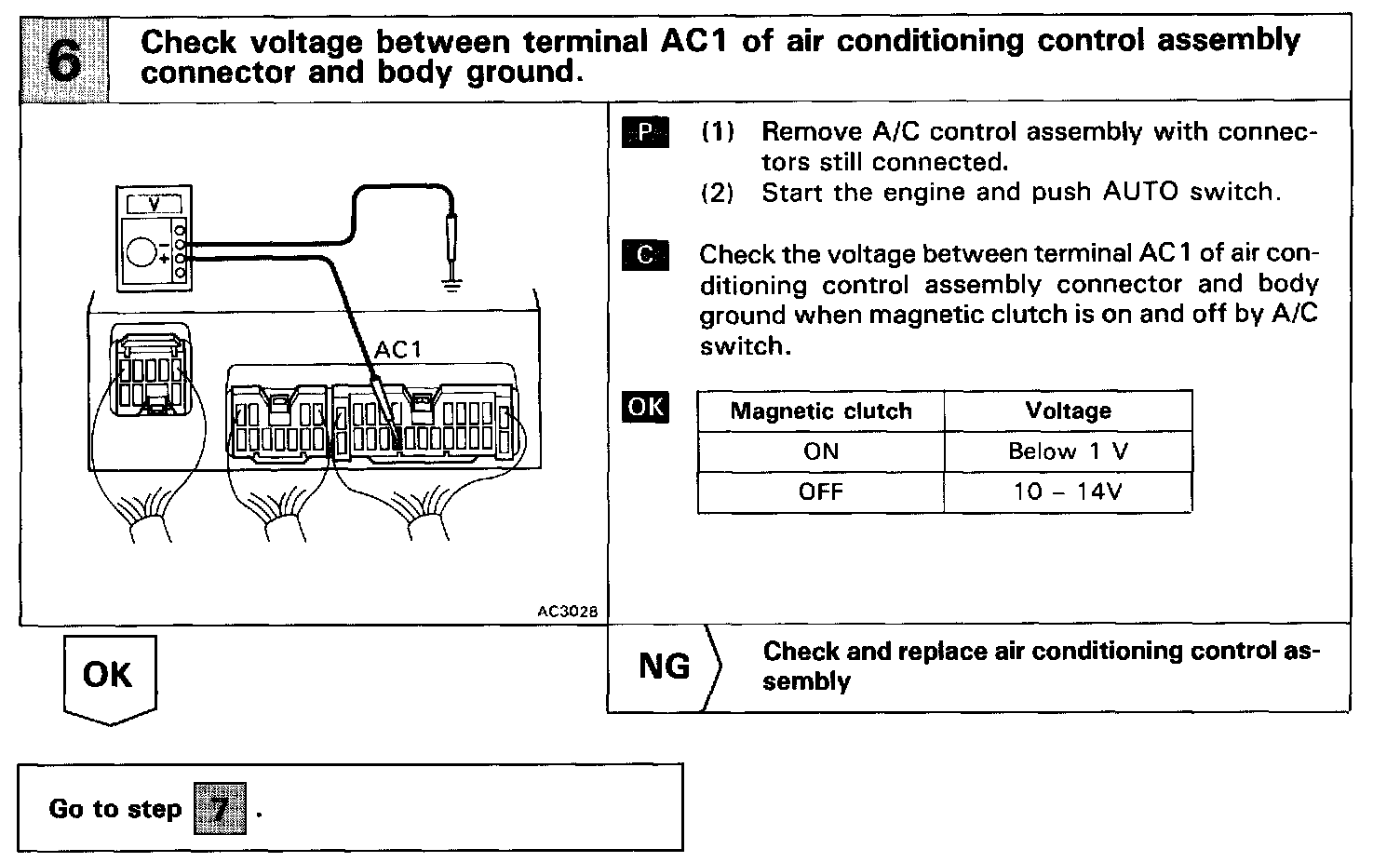

Step 6:

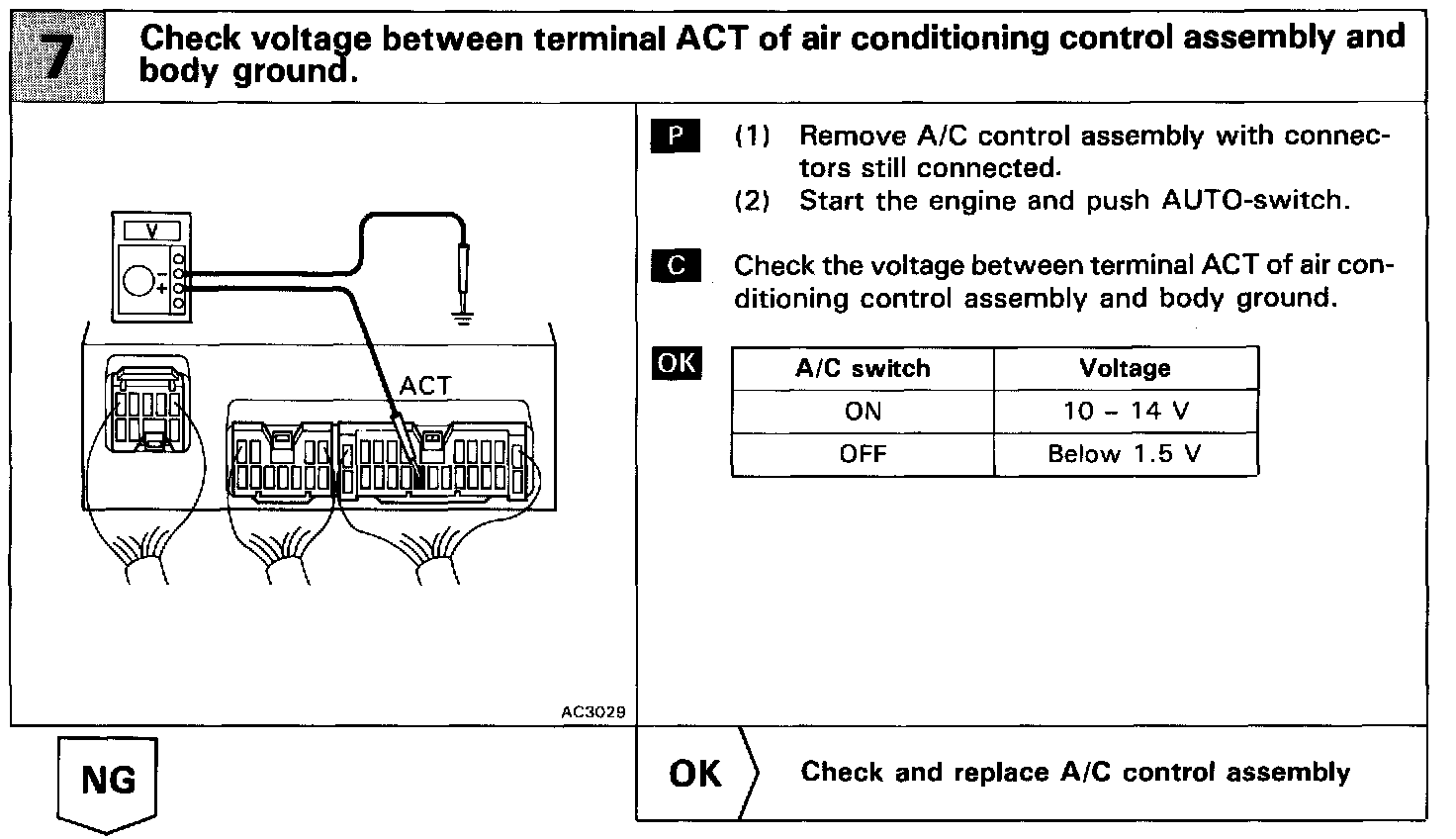

Step 7:

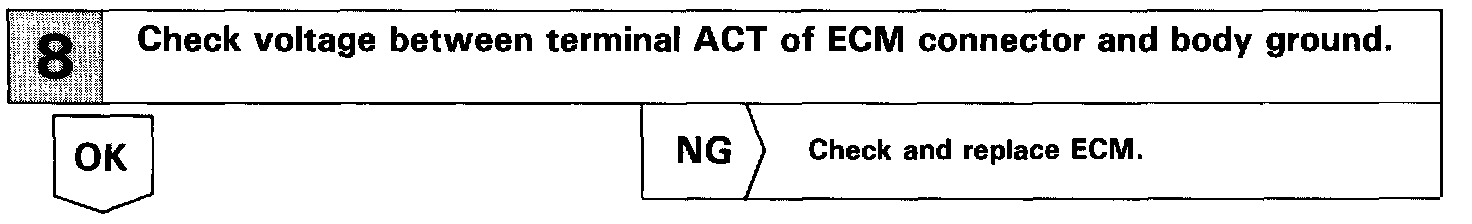

Step 8:

Step 9:
