Condenser HVAC: Service and Repair

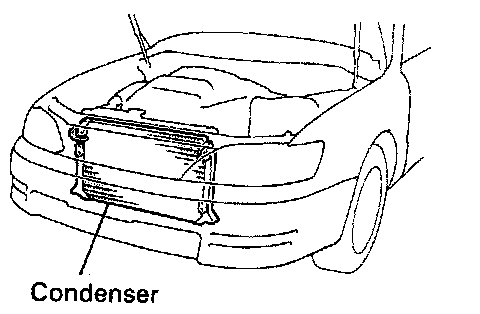

Condenser Removal

1.Discharge refrigerant from system
2.Remove upper cover
3.Remove cooling fan

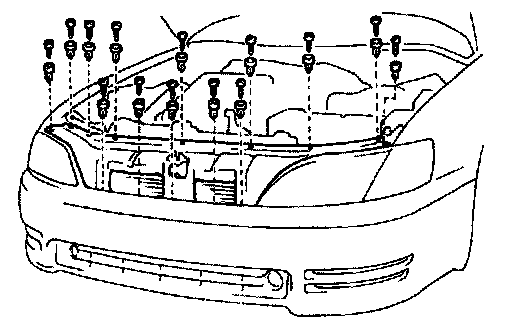

4.Using a screwdriver, remove the 14 clips in the upper support seal

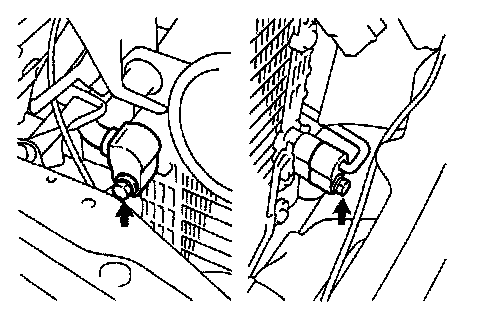

5.Remove liquid tube and discharge tube. Torque: 10Nm (100kgf-cm, 7 ft-lbf.)

Notice: Cap the fittings immediately to keep moisture out of the system.

6.Remove headlights on both sides

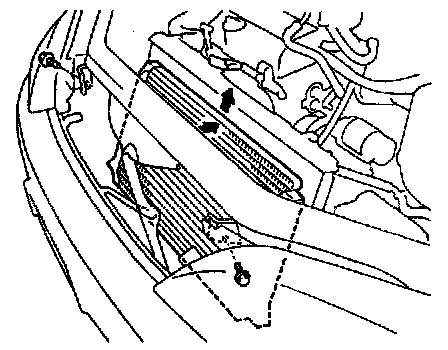

7.Remove the 2 bolts and lean the radiator backward then remove the condenser.


Condenser installation

Installation is in reverse order of removal.
