Wiring Diagram

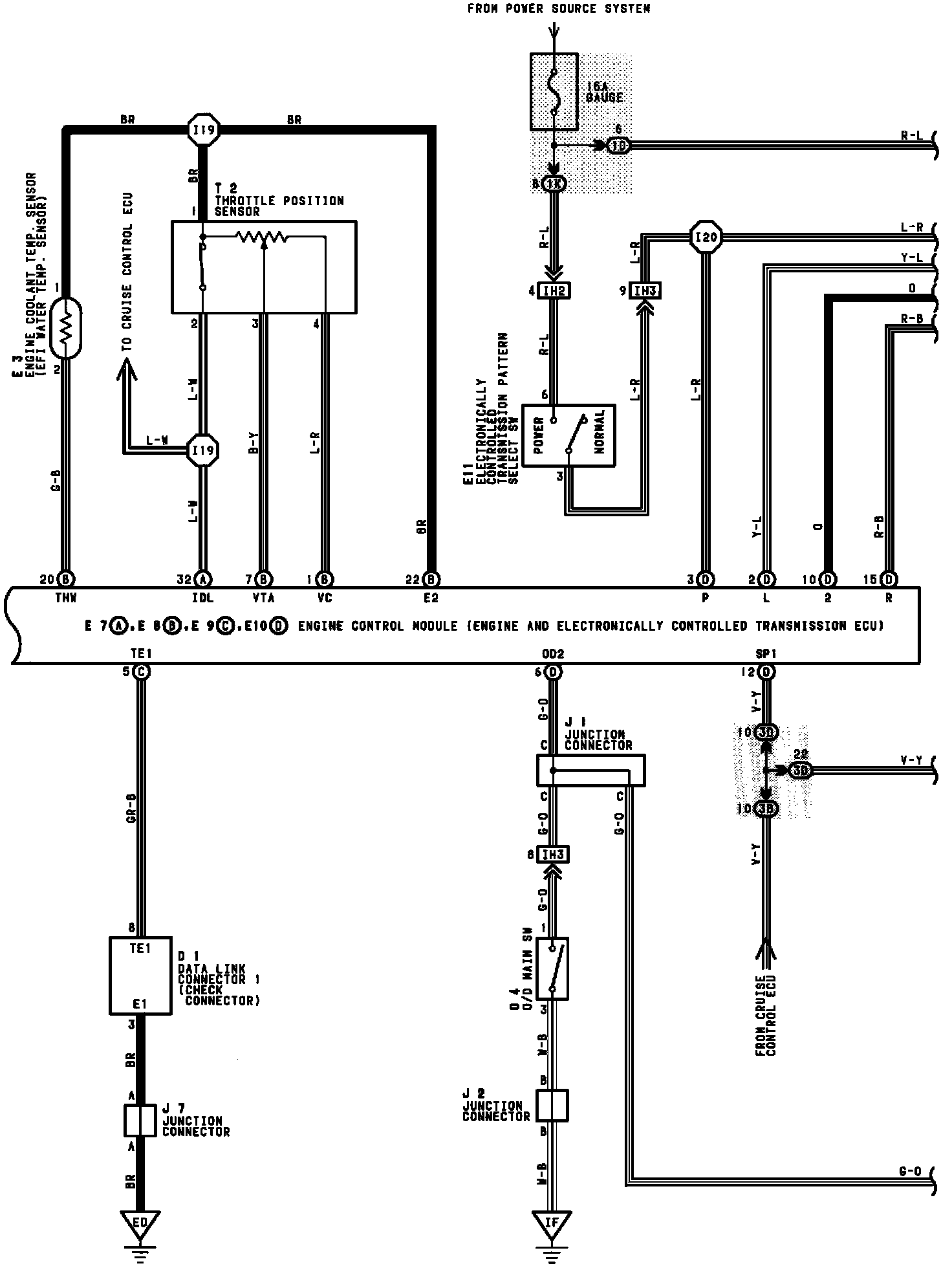

Electronically Controlled Transmission And A/T Indicator (Part 1 Of 3):

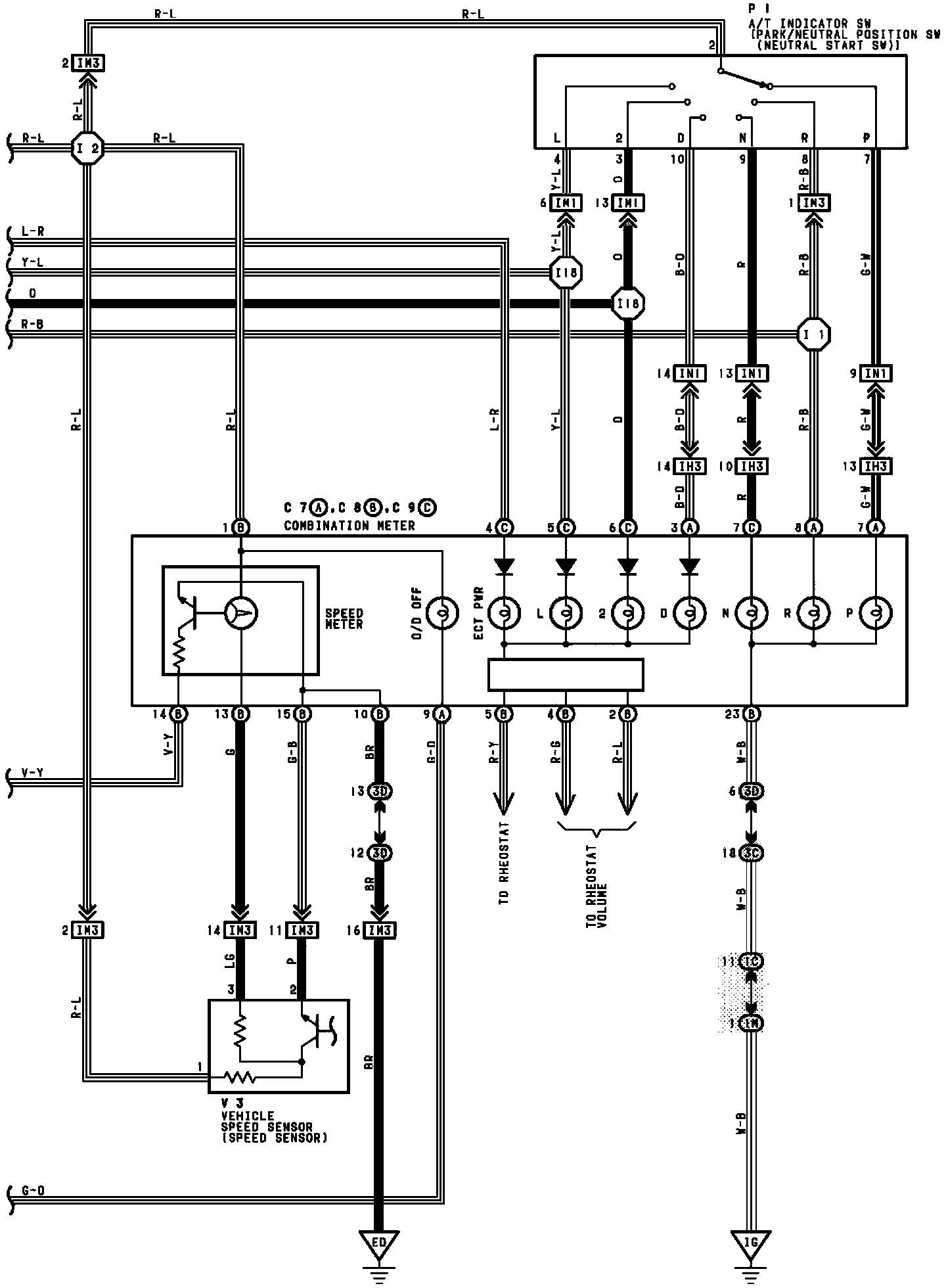

Electronically Controlled Transmission And A/T Indicator (Part 2 Of 3):

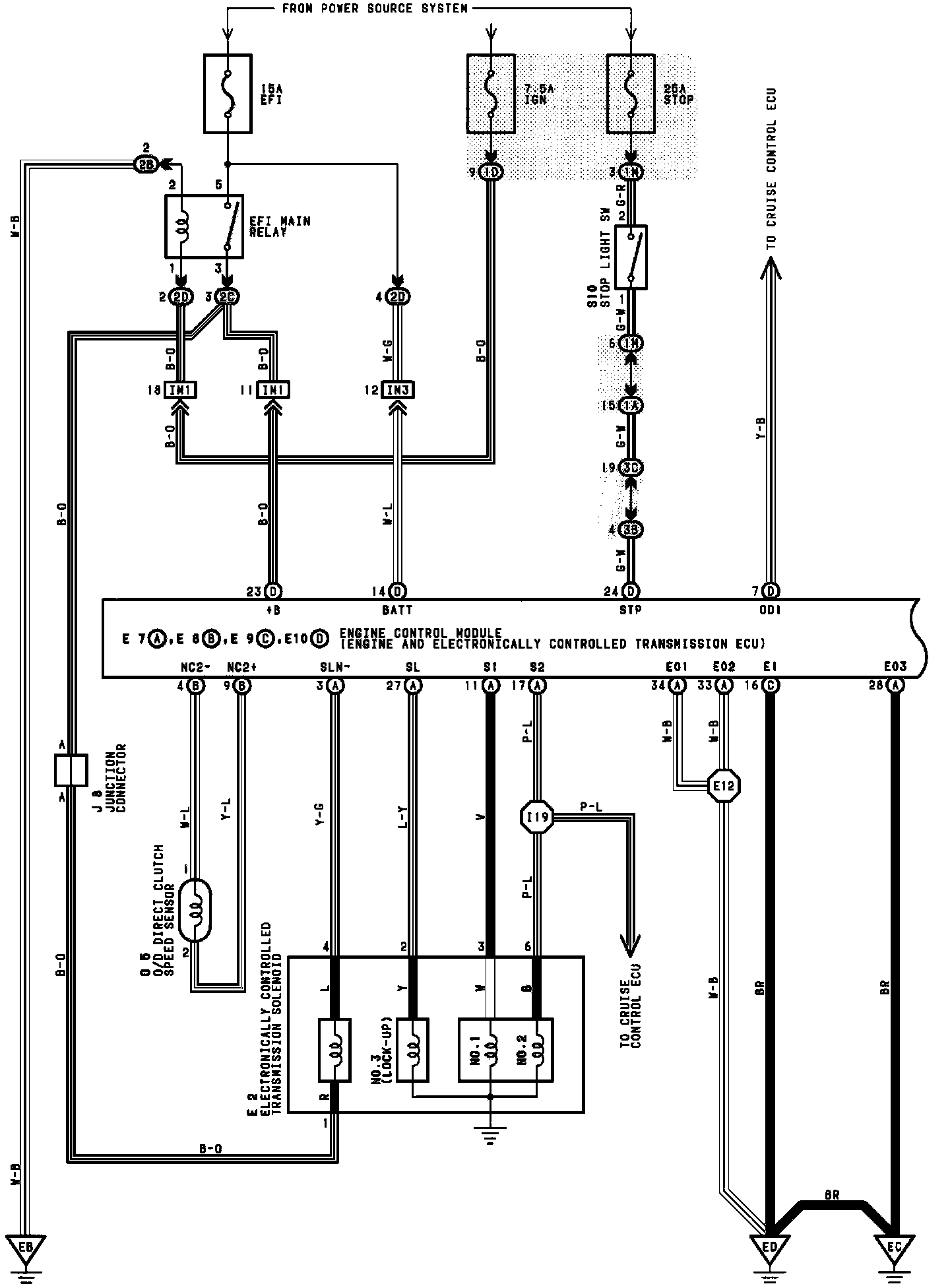

Electronically Controlled Transmission And A/T Indicator (Part 3 Of 3):

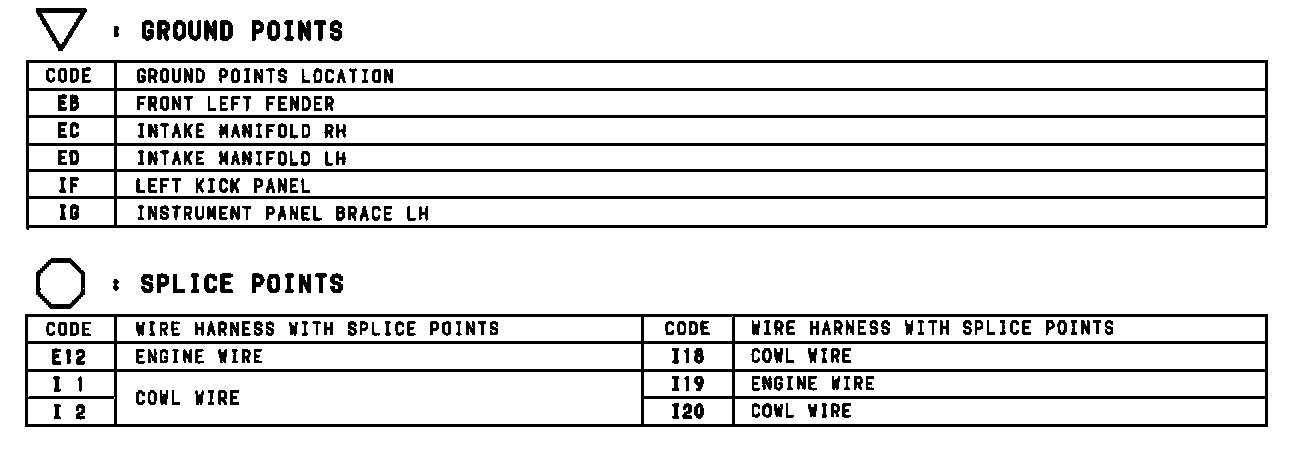

Diagram Legend (Part 1 Of 2):

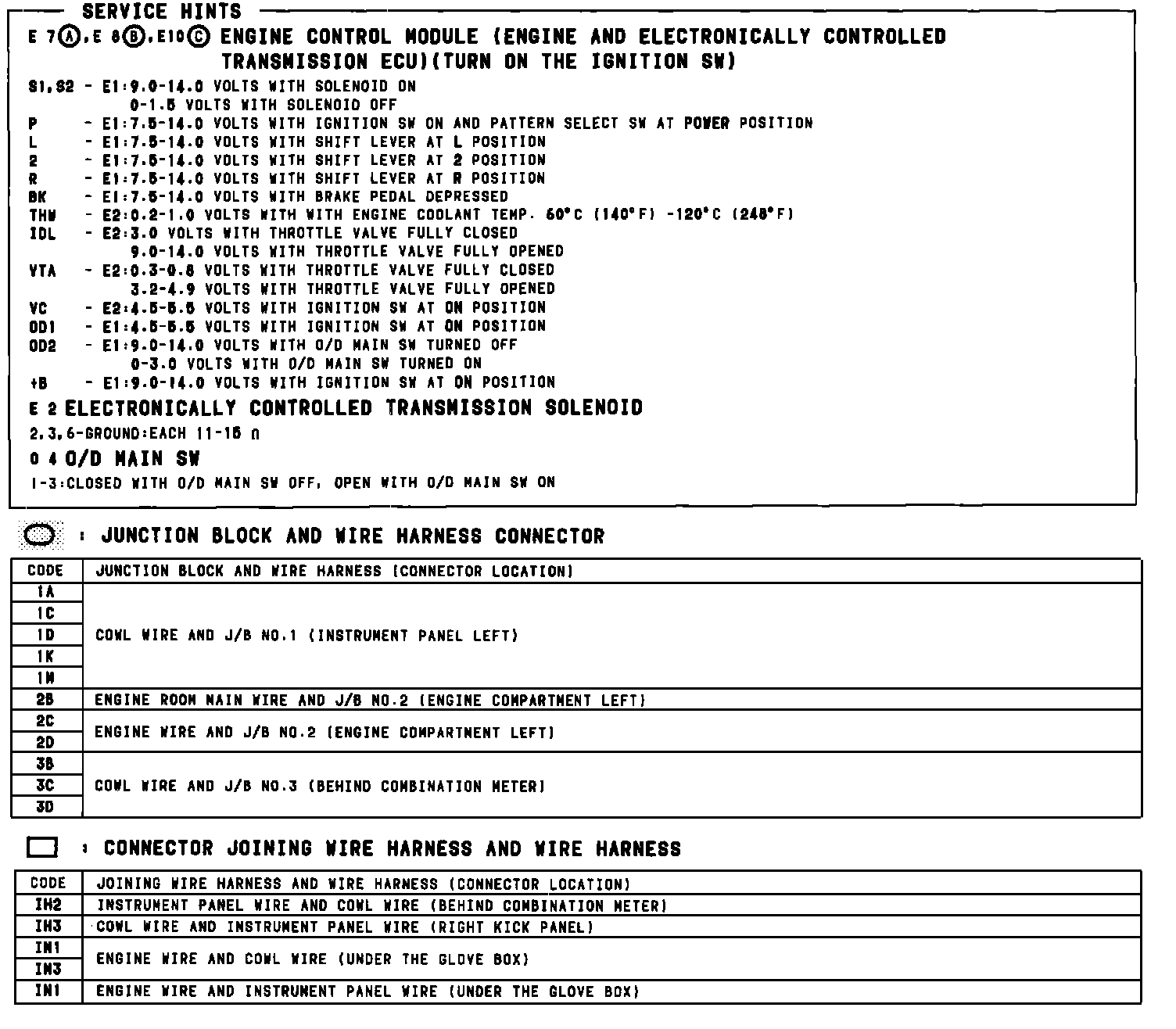

Diagram Legend (Part 2 Of 2):

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations


Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
