Body

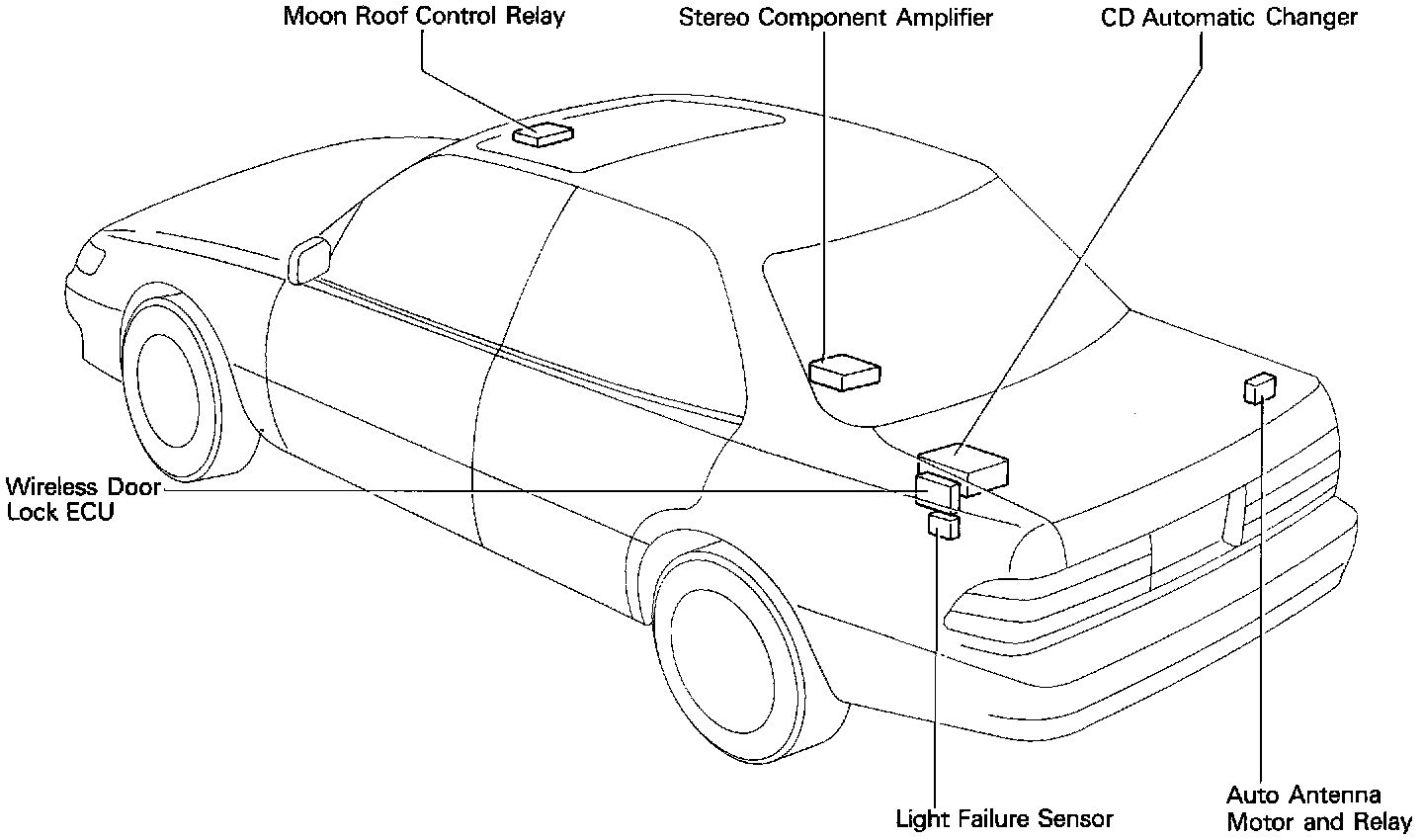

Locations-Body (Fig 18):






Auto Antenna Motor and Relay

CD Automatic Changer

Light Failure Sensor

Moon Roof Control Relay

Stereo Component amplifier

Wireless Door Lock ECU
