Instrument Panel / Center Console

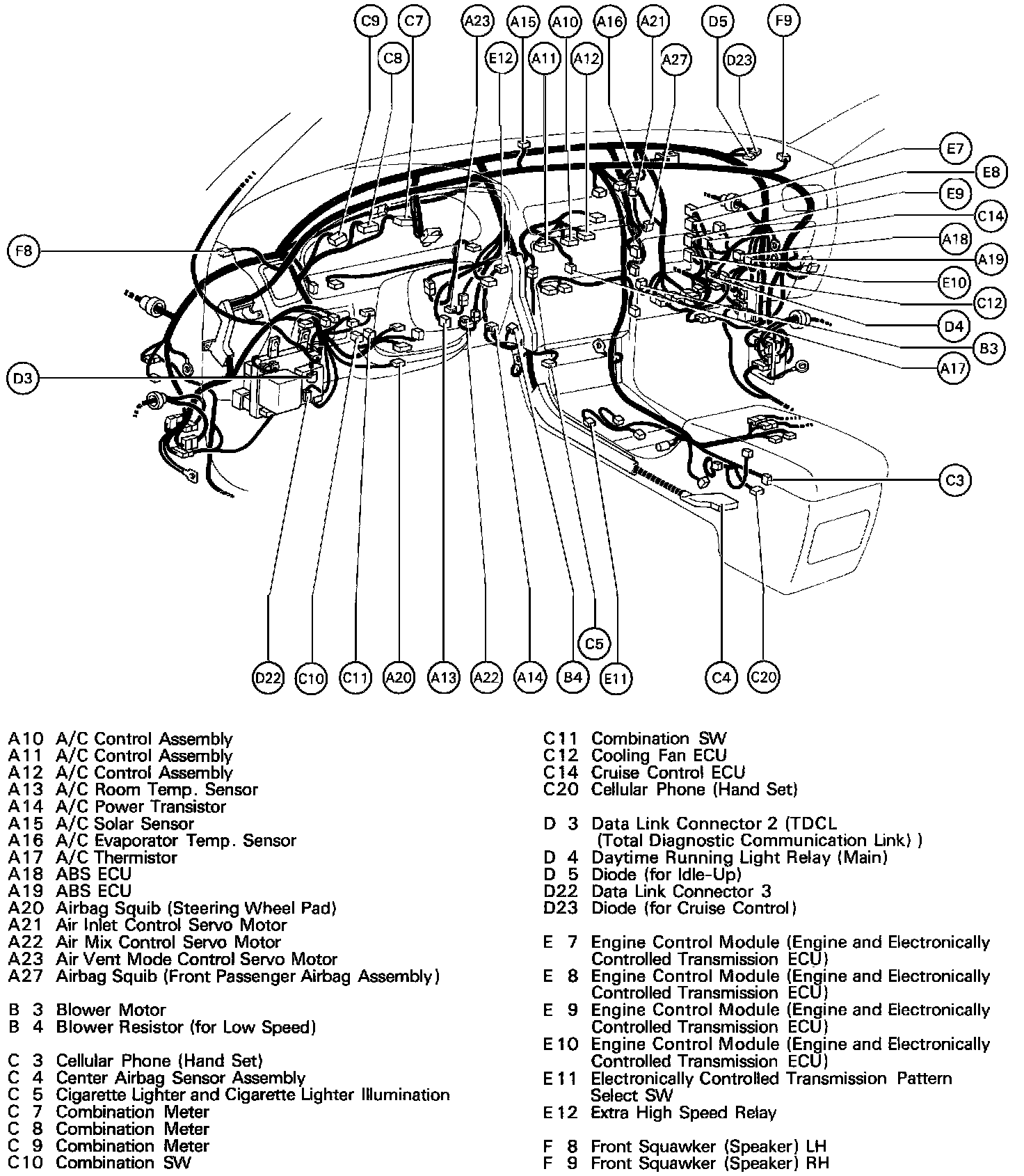

Position Of Parts In Instrument Panel (Part 1 Of 2) (Fig 30):

A10 A/C Control Assembly
A11 A/C Control Assembly
A12 A/C Control Assembly
A13 A/C Room Temp. Sensor
A14 A/C Power Transistor
A15 A/C Solar Sensor
A16 A/C Evaporator Temp. Sensor
A17 A/C Thermistor
A18 ABS ECU
A19 ABS ECU
A20 Airbag Squib (Steering Wheel Pad)
A21 Air Inlet Control Servo Motor
A22 Air Mix Control Servo Motor
A23 Air Vent Mode Control Servo Motor
A27 Airbag Squib (Front Passenger Airbag Assembly)

B 3 Blower Motor
B 4 Blower Resistor (for Low Speed)

C 3 Cellular Phone (Hand Set)
C 4 Center Airbag Sensor Assembly
C 5 Cigarette Lighter and Cigarette Lighter Illumination
C 7 Combination Meter
C 8 Combination Meter
C 9 Combination Meter
C10 Combination SW
C11 Combination SW
C12 Cooling Fan ECU
C14 Cruise Control ECU
C2O Cellular Phone (Hand Set)

D 3 Data Link Connector 2 TDCL (Total Diagnostic Communication Link)
D 4 Daytime Running Light Relay (Main)
D 5 Diode (for Idle-Up)
D22 Data Link Connector 3
D23 Diode (for Cruise Control)

E 7 Engine Control Module (Engine and Electronically Controlled Transmission ECU)
E 8 Engine Control Module (Engine and Electronically Controlled Transmission ECU)
E 9 Engine Control Module (Engine and Electronically Controlled Transmission ECU)
E10 Engine Control Module (Engine and Electronically Controlled Transmission ECU)
E11 Electronically Controlled Transmission Pattern Select SW
E12 Extra High Speed Relay

F 8 Front Squawker (Speaker) LH
F 9 Front Squawker (Speaker) RH

Position Of Parts In Instrument Panel (Part 2 Of 2) (Fig 31):

G 3 Glove Box Light
G 4 Glove Box Light SW

H 9 Hazard SW
H10 Headlight Cleaner SW
H11 Heated Oxygen Sensor (Bank 1 Sensor 2)

I10 Ignition Key Cylinder Light
I11 Ignition SW and Unlock Warning SW
I12 Integration Relay

J 1 Junction Connector
J 2 Junction Connector
J 3 Junction Connector
J 4 Junction Connector (for SRS System)
J 7 Junction Connector
J 8 Junction Connector

K 3 Key Interlock Solenoid

L 1 Luggage Compartment Door Opener Main SW

0 4 O/D Main SW and A/T Indicator Light (Shift Lever)

P 3 PPS ECU
P 4 Parking Brake SW

R 1 Radio and Player
R 2 Radio and Player
R 3 Remote Control Mirror SW
R 4 Rheostat
R 5 Rheostat Volume and Theft Deterrent Indicator Light

S 5 Seat Heater SW (for Driver's Seat)
S 6 Seat Heater SW (for Passenger's Seat)
S 7 Shift Lock ECU
S B Stereo Component Amplifier
S 9 Stereo Component Amplifier
S10 Stop Light SW

T 3 Theft Deterrent and Door Lock ECU
T 4 Theft Deterrent and Door Lock ECU
T 5 Trip SW

W 5 Wiper Control Relay
W 6 Wireless Door Lock Main SW
