Moonroof Panel - Modified Mounting Studs

BODY
B095-007
DECEMBER 08, 1995
ES 300

Title:
MOONROOF PANEL SERVICE TIPS

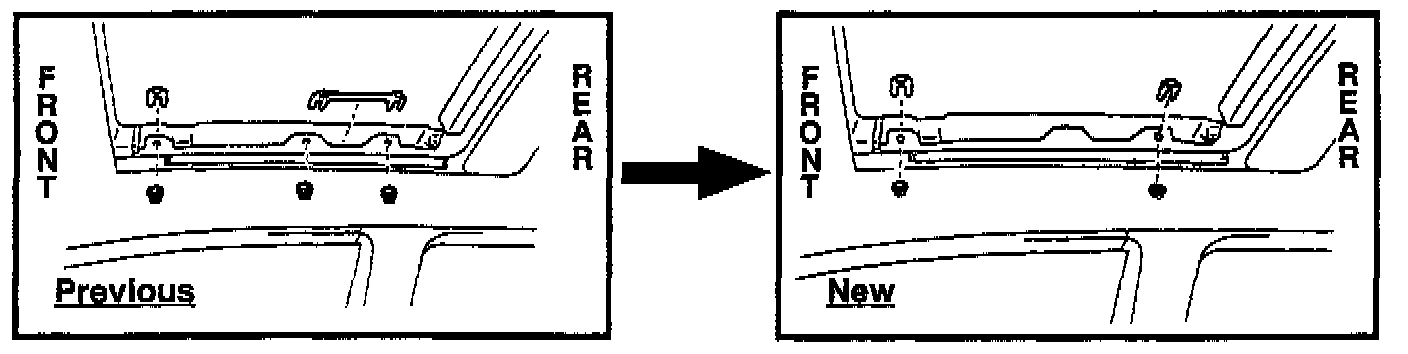

To limit internal stress on the moonroof panel glass, the six mounting studs have been reduced to four (see illustration).





PRODUCTIVE EFFECTIVE:
* Use torque setting values contained in table.

NOTE:
The 4 and 6 stud moonroof panels are completely interchangeable and the part numbers have not been changed.

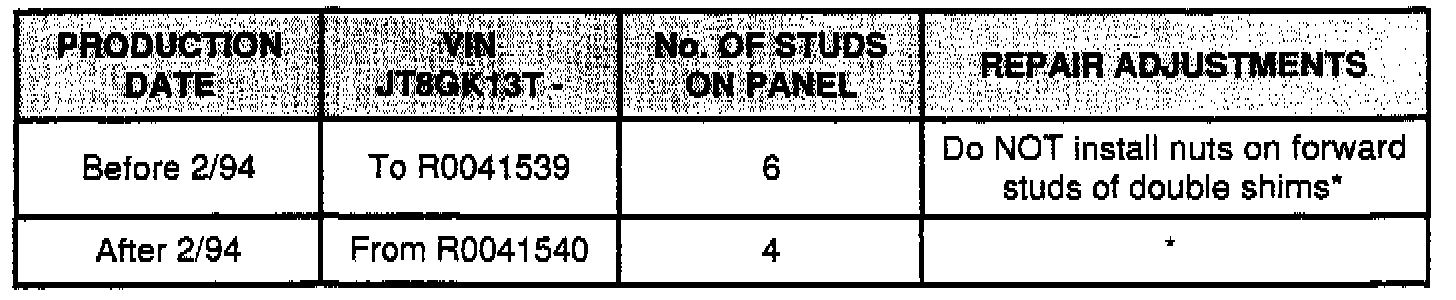

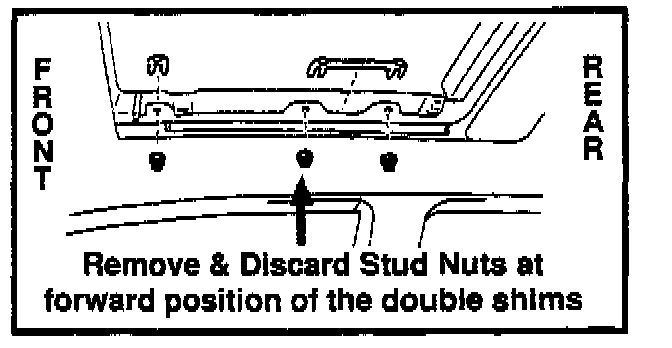

If adding or removing moonroof shims from a 6 stud moonroof panel (vehicles built prior to 2/94, VIN # JT8GK13T - R0041540) Discard stud nuts at forward position of the double shims.





Torque settings for the stud nuts securing the moonroof have been revised as shown.

Call the Technical Hotline at 1-(800)-446-4740 for addition information.
