Detecting Condition

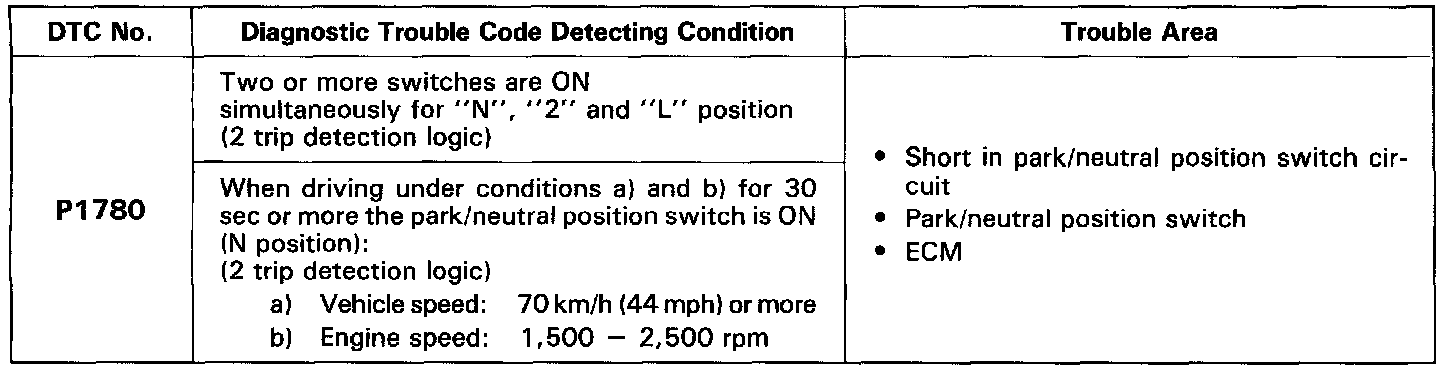

DETECTING CONDITION

HINT: After confirming DTC P1780 use the LEXUS hand-held tester to confirm the PNP switch signal from "CURRENT DATA".




WIRING DIAGRAM
