Detecting Condition

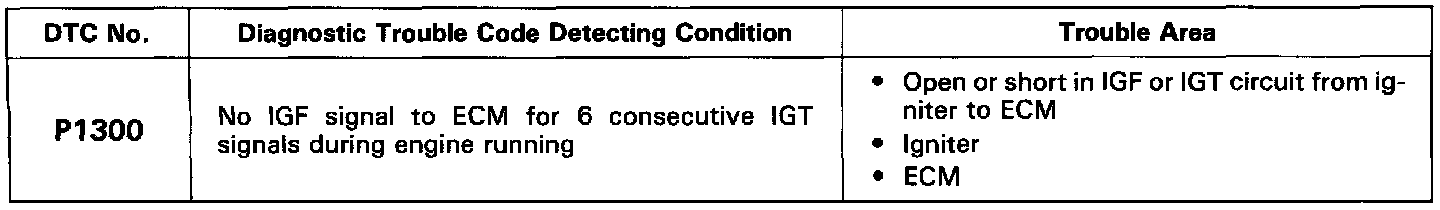

DETECTING CONDITION




WIRING DIAGRAM




INSPECTION USING OSCILLOSCOPE
- During idling, check waveform between terminal IGT1, IGT and E1 of ECM.

INT: The IGT2, IGT3, IGT4, IGT5 and IGT6 signal waveforms are the same as the lGT1 signal waveform.
