Engine Control System

DTC PO77O Shift Solenoid E Malfunction (Shift Solenoid Valve SL)




SYSTEM DESCRIPTION

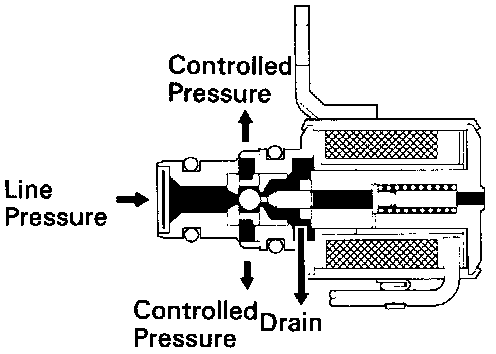

The ECM uses the signals from the NC2 revolution sensor and crankshaft position sensor to monitor the engagement condition of the lock-up clutch. Then the ECM compares the engagement condition of the lock-up clutch with the lock-up schedule in the ECM memory to detect mechanical trouble of the shift solenoid valve SL, valve body and torque converter clutch.

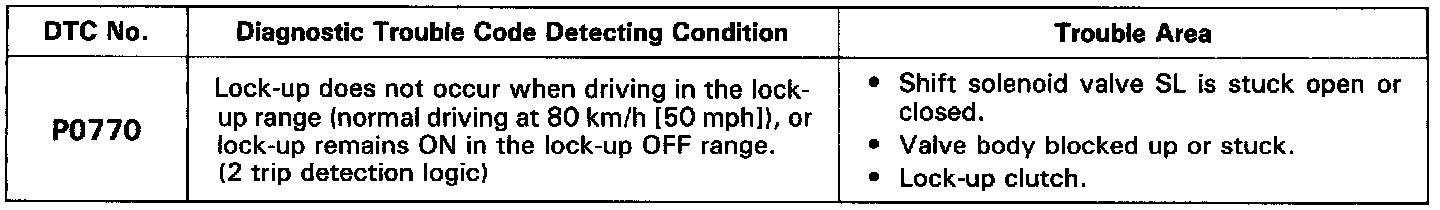

DETECTING CONDITION







INSPECTION PROCEDURE
