Inspection Procedure

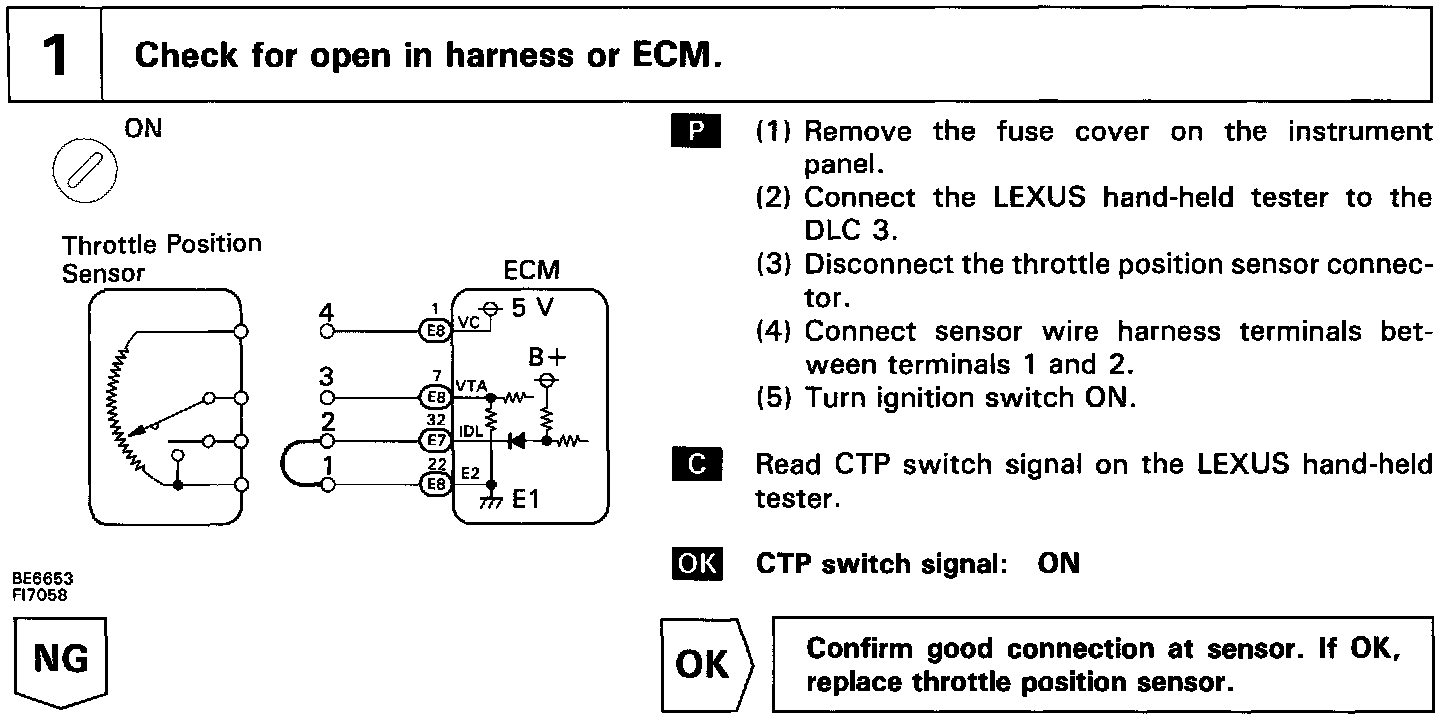

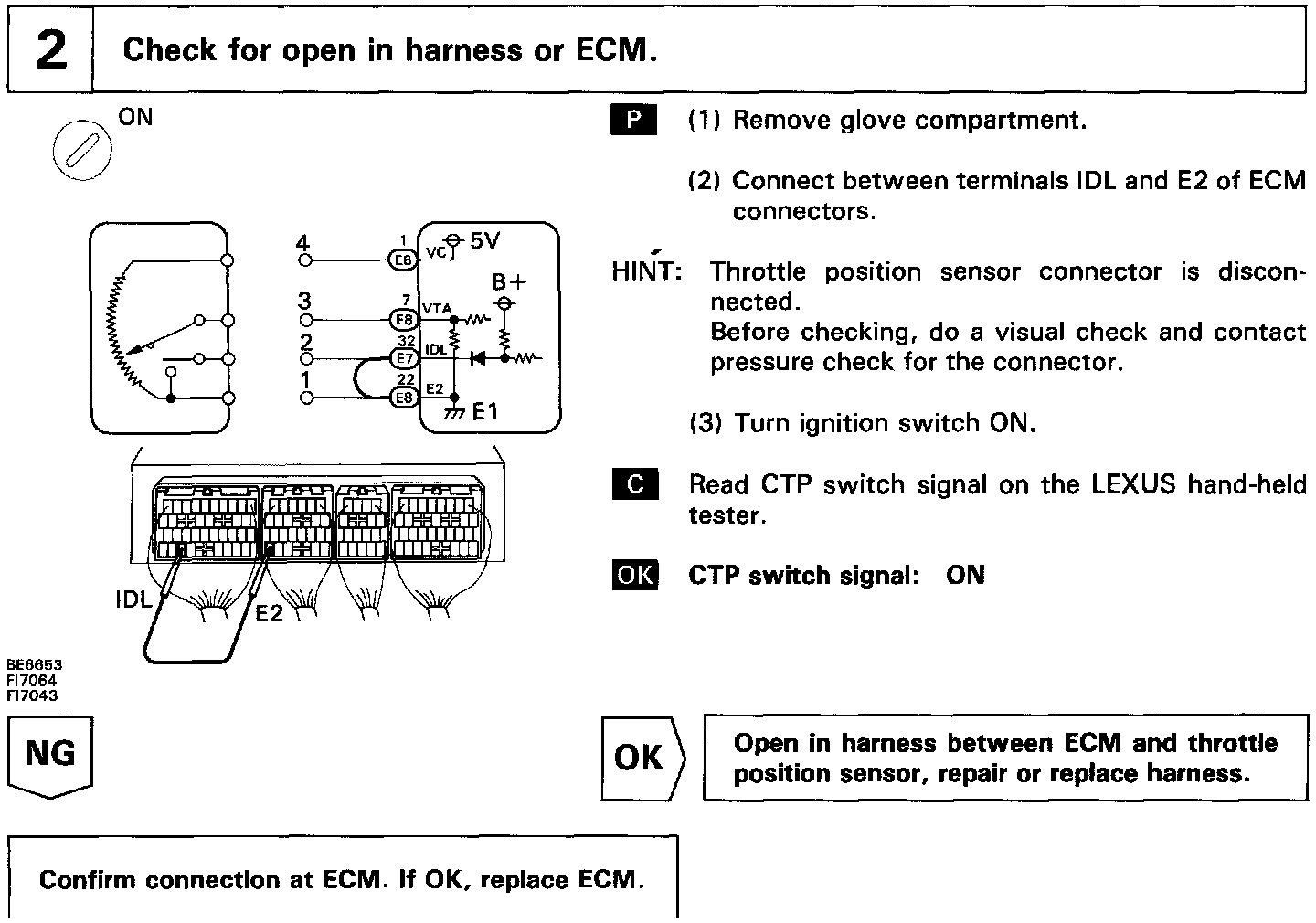

LEXUS HAND-HELD TESTER







TROUBLE CODE CHARTS

HINT: If diagnostic trouble codes PO110, PO115 and PO120 are output simultaneously, E2 (sensor ground) may be open.

OBD II SCAN TOOL (excluding LEXUS hand-held tester)







TROUBLE CODE CHARTS
