Detecting Condition

DETECTING CONDITION

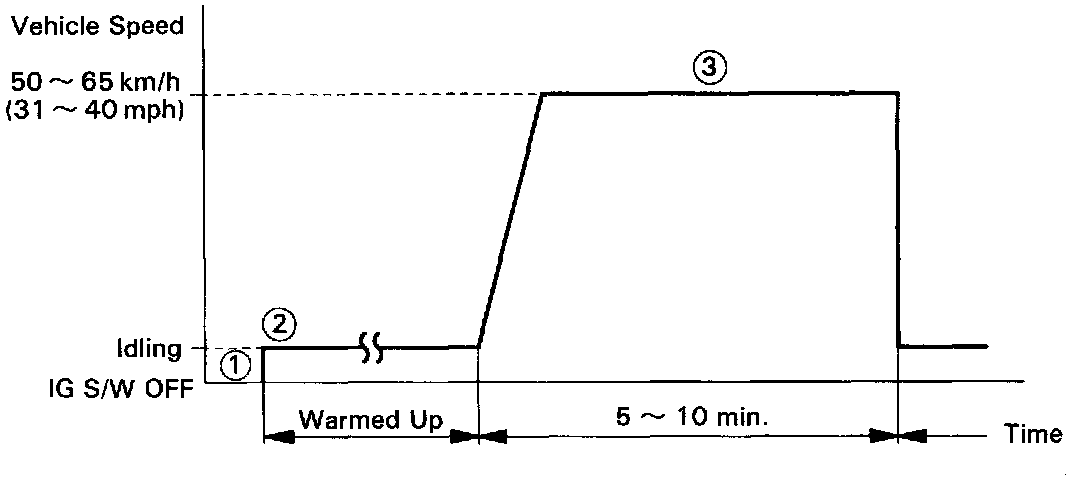

SYSTEM CHECK DRIVING PATTERN
- Connect the OBD II scan tool or LEXUS hand-held tester to the DLC3.
- Start and warm up the engine with all accessories switched OFF.
- Drive the vehicle at 50-65 km/h (31-40mph) for 5-10 min.

HINT: If a malfunction exists, the MIL will light up during step 3.
