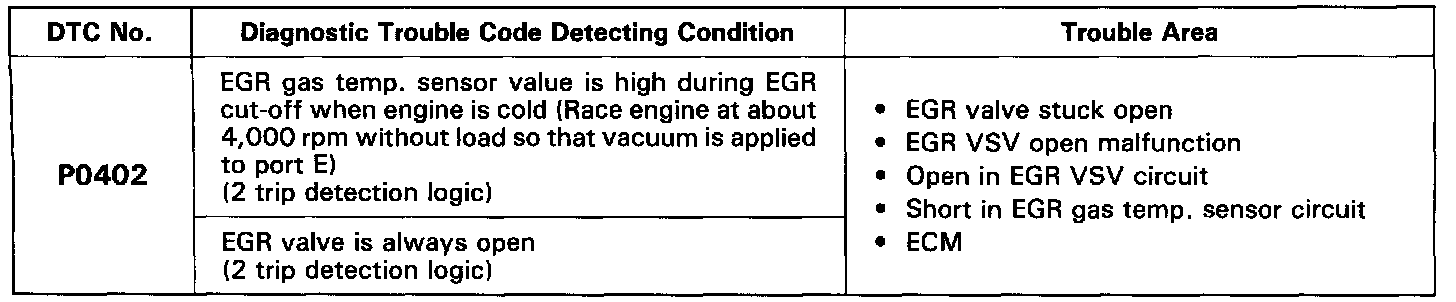

P0402
>>
Detecting Condition
Detecting Condition
DETECTING CONDITION
See DTC PO4O1 for System Check Driving Pattern and Wiring Diagram.
