P0133
>>

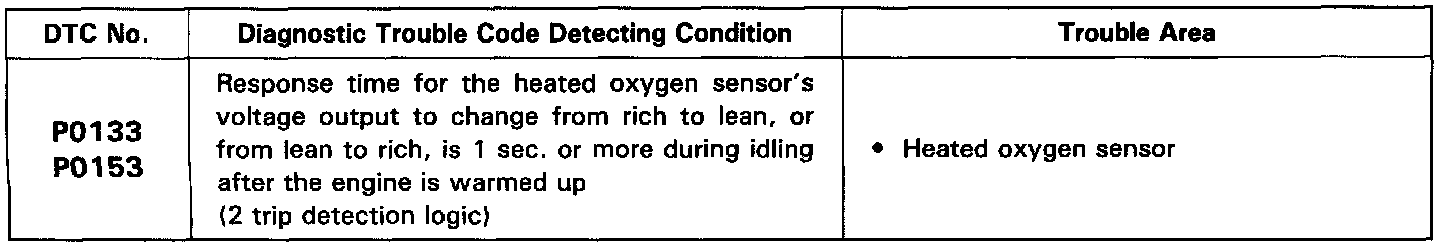

Detecting Condition
Detecting Condition
DETECTING CONDITION
HINT:
Bank 1 refers to the bank that includes cylinder No.1. Bank 2 refers to the bank that does not include cylinder No.1. Sensor 1 refers to the sensor closer to the engine body.
