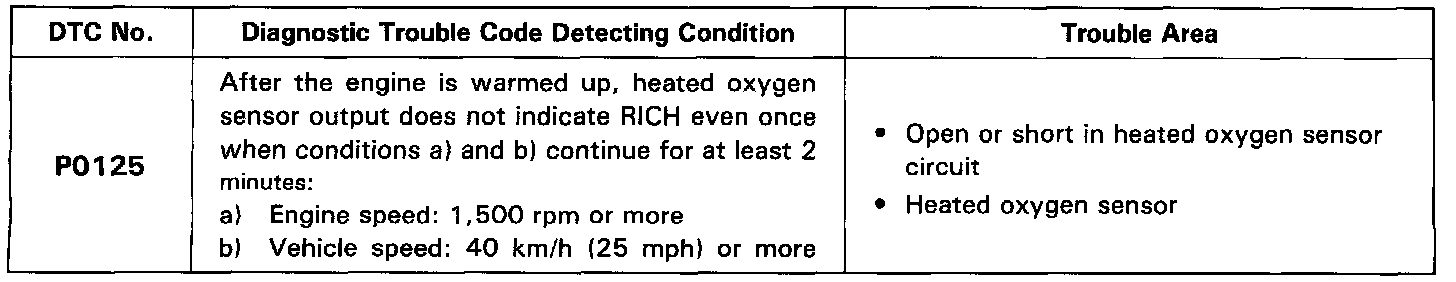

Detecting Condition

DETECTING CONDITION

HINT: After confirming DTC PO125 use the OBD II scan tool or LEXUS hand-held tester to confirm voltage output of heated oxygen sensor from current data. If voltage output of heated oxygen sensor is 0 Volts, heated oxygen sensor circuit may be open or short.

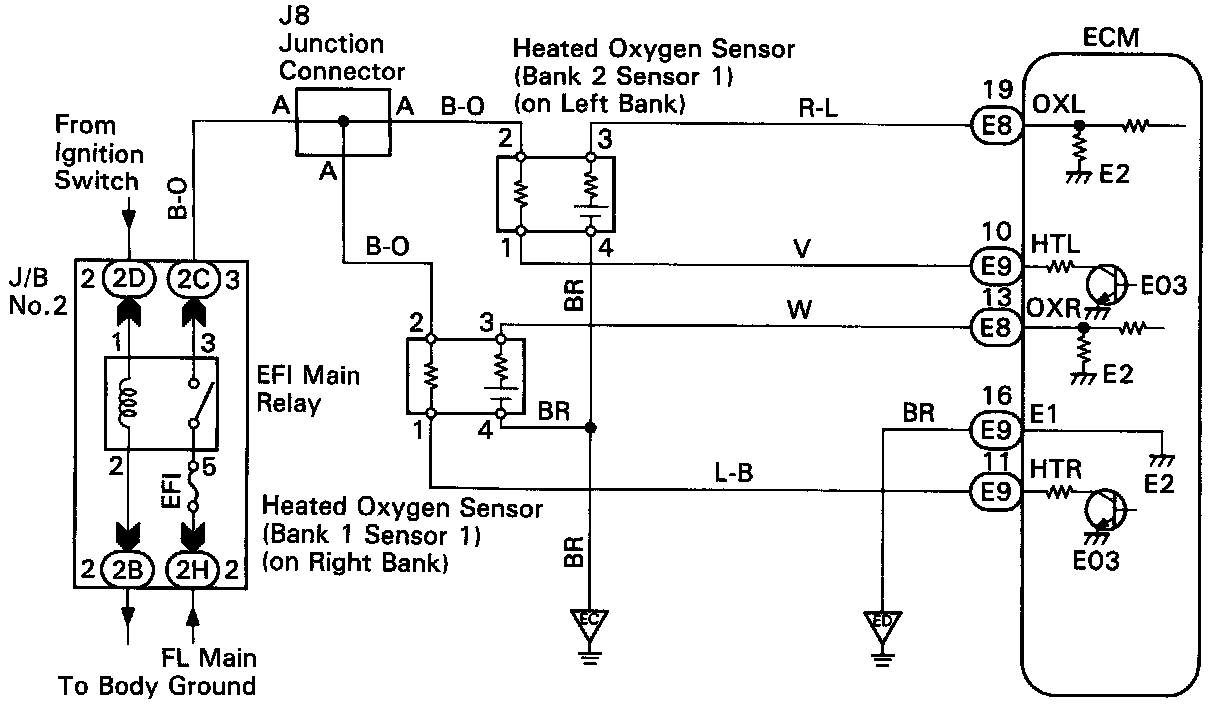

WIRING DIAGRAM
