Inspection Procedure

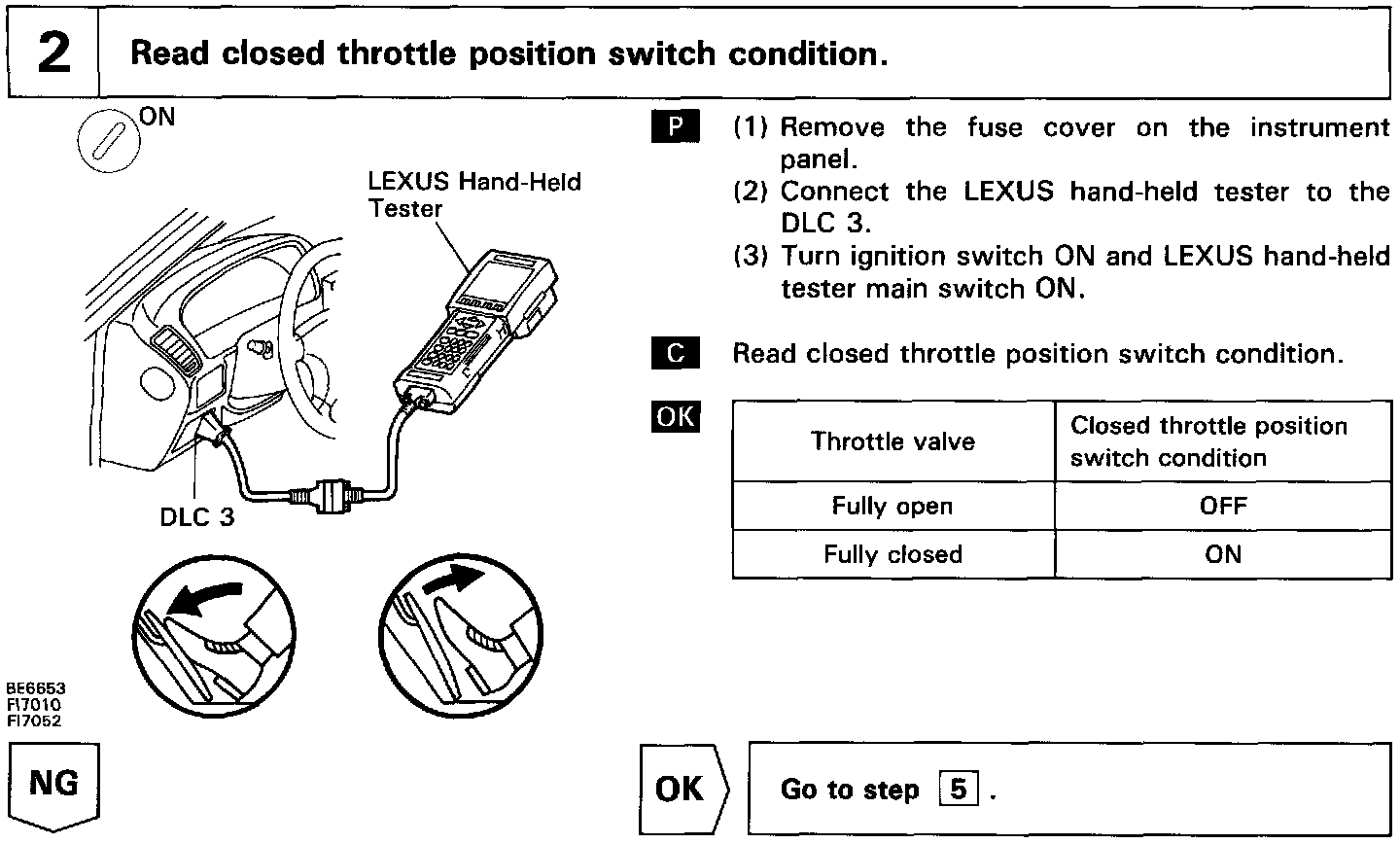

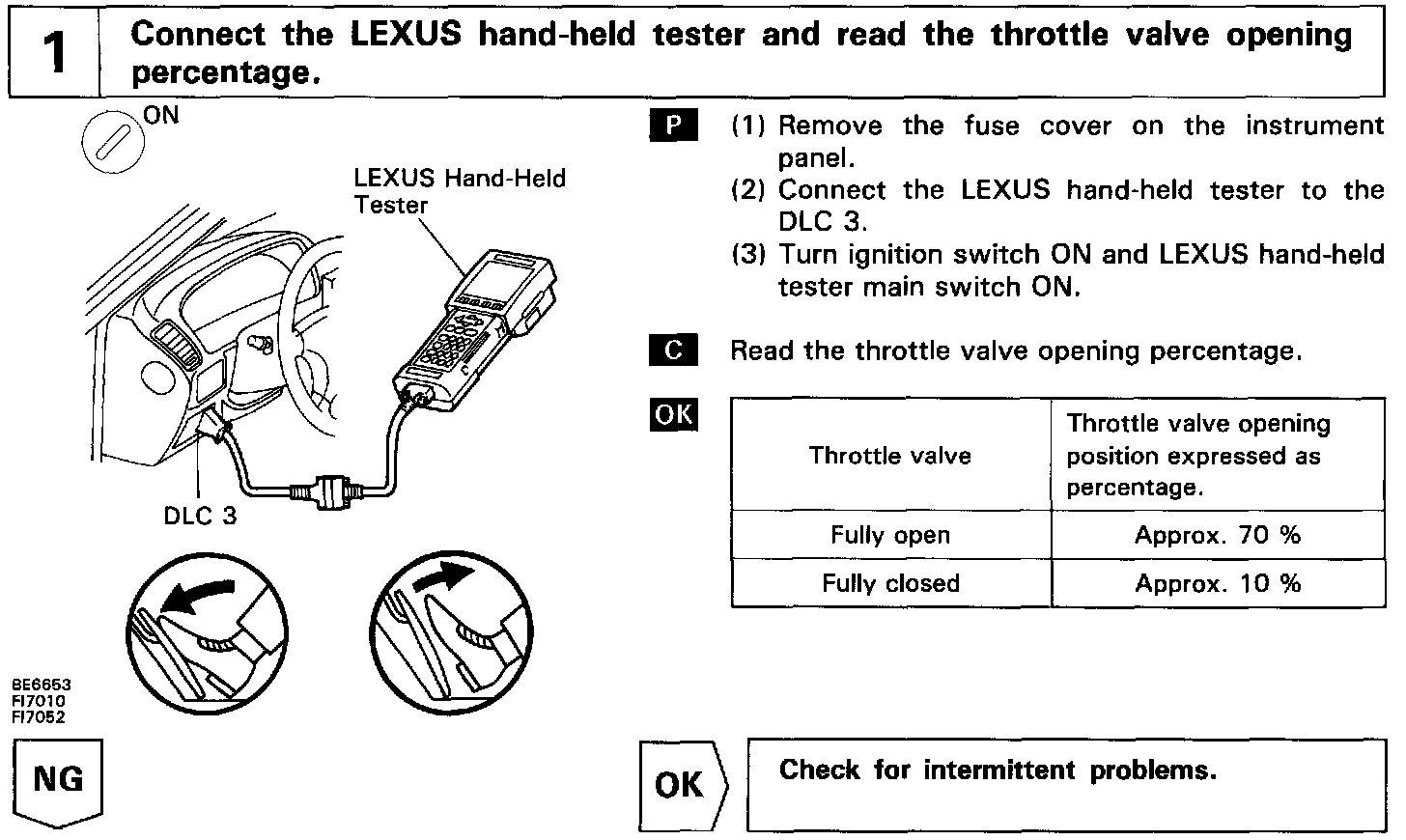

LEXUS HAND-HELD TESTER:

HINT: If diagnostic trouble codes PO110, PO115, and PO120 are output simultaneously, E2 (sensor ground) may be open.



















TROUBLE CODE CHARTS

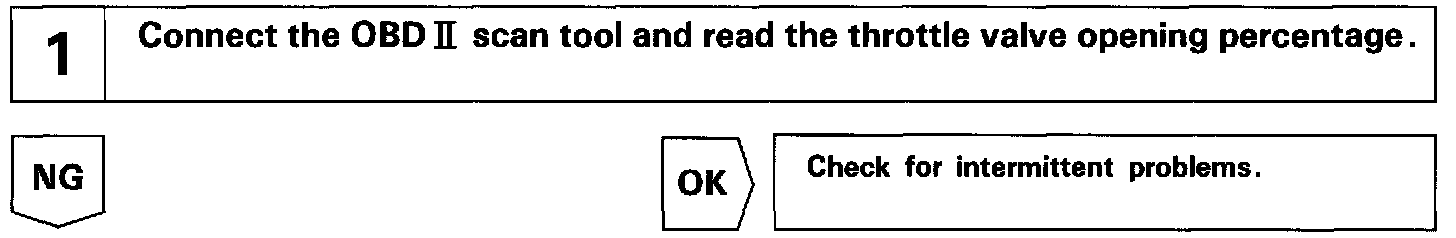

OBD II SCAN TOOL (EXCLUDING LEXUS HAND-HELD TESTER):

HINT: If diagnostic trouble codes PO110, PO115, and PO120 are output simultaneously, E2 (sensor ground) may be open.
OBD II scan tool (excluding LEXUS hand-held tester)



















TROUBLE CODE CHARTS
