Detecting Condition

HINT: After confirming DTC PO110 use the OBD II scan tool or LEXUS hand-held tester to confirm the intake air temperature from "CURRENT DATA".

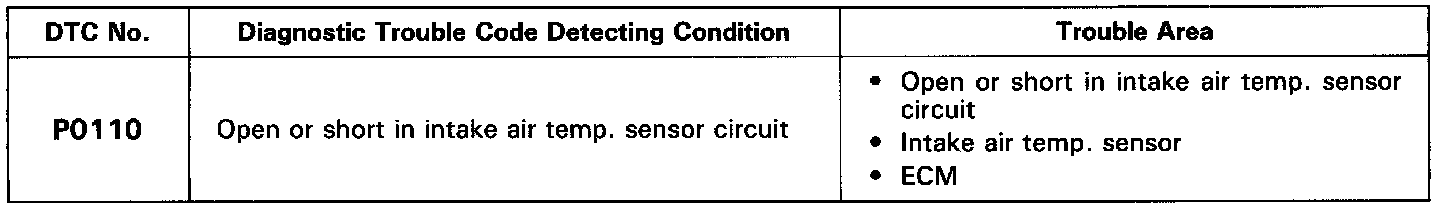

DETECTING CONDITION




WIRING DIAGRAM
