FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
1995
>>
ES 300 V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P0100
>>
Inspection Procedure
Inspection Procedure

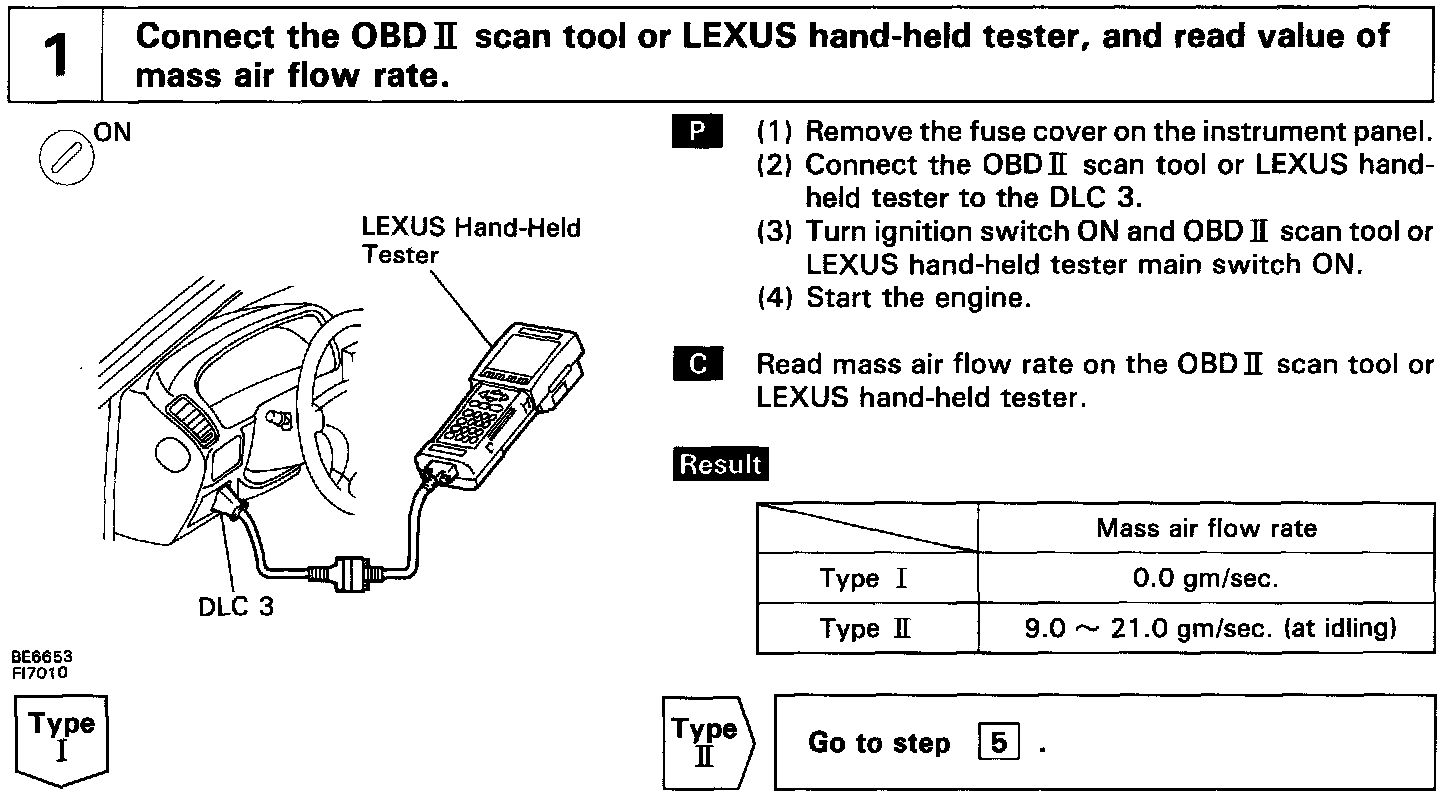

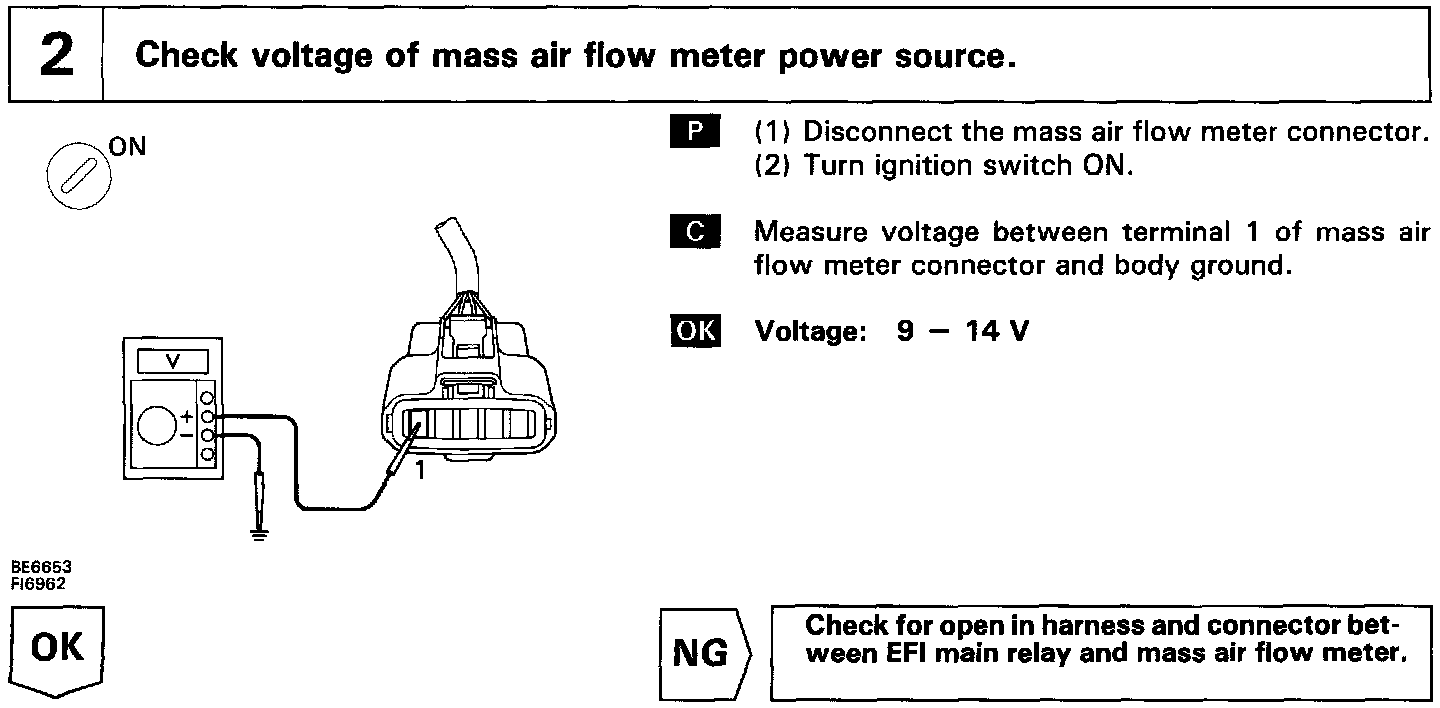

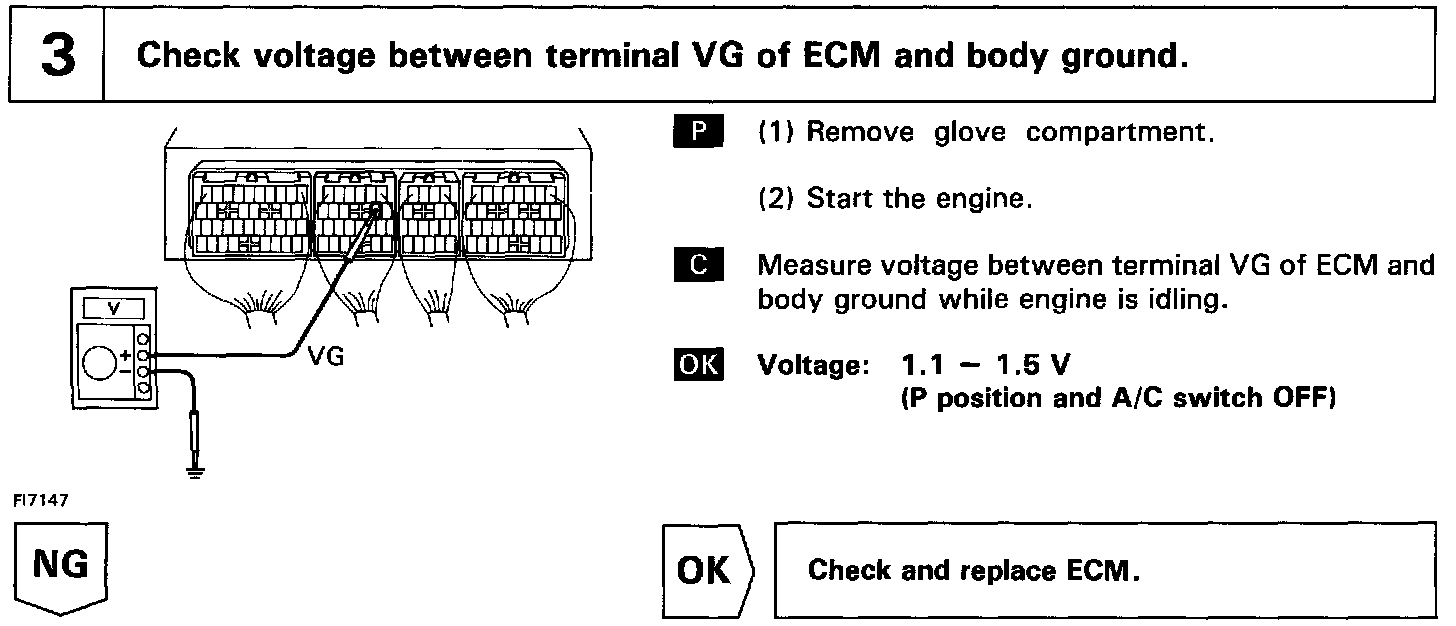

INSPECTION PROCEDURES 1 Thru 3

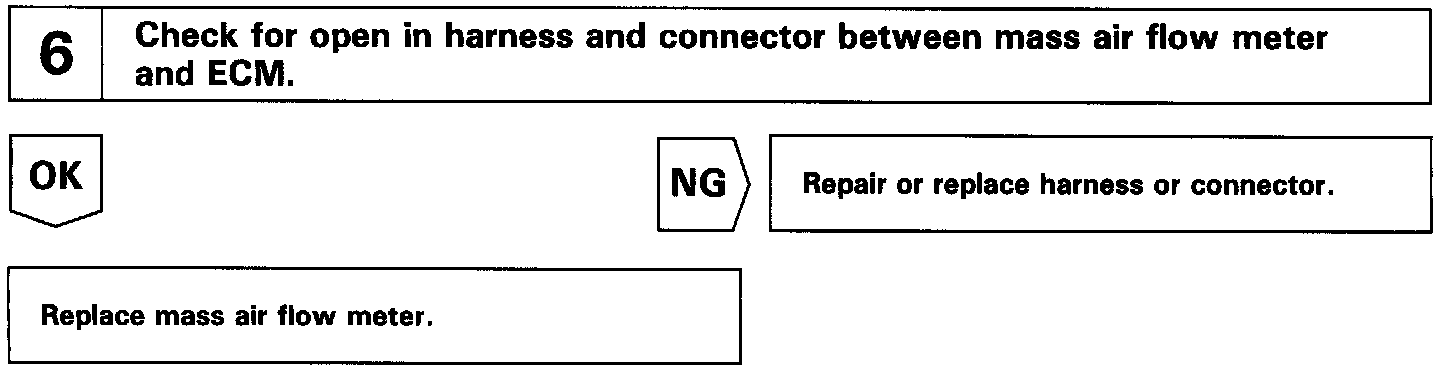

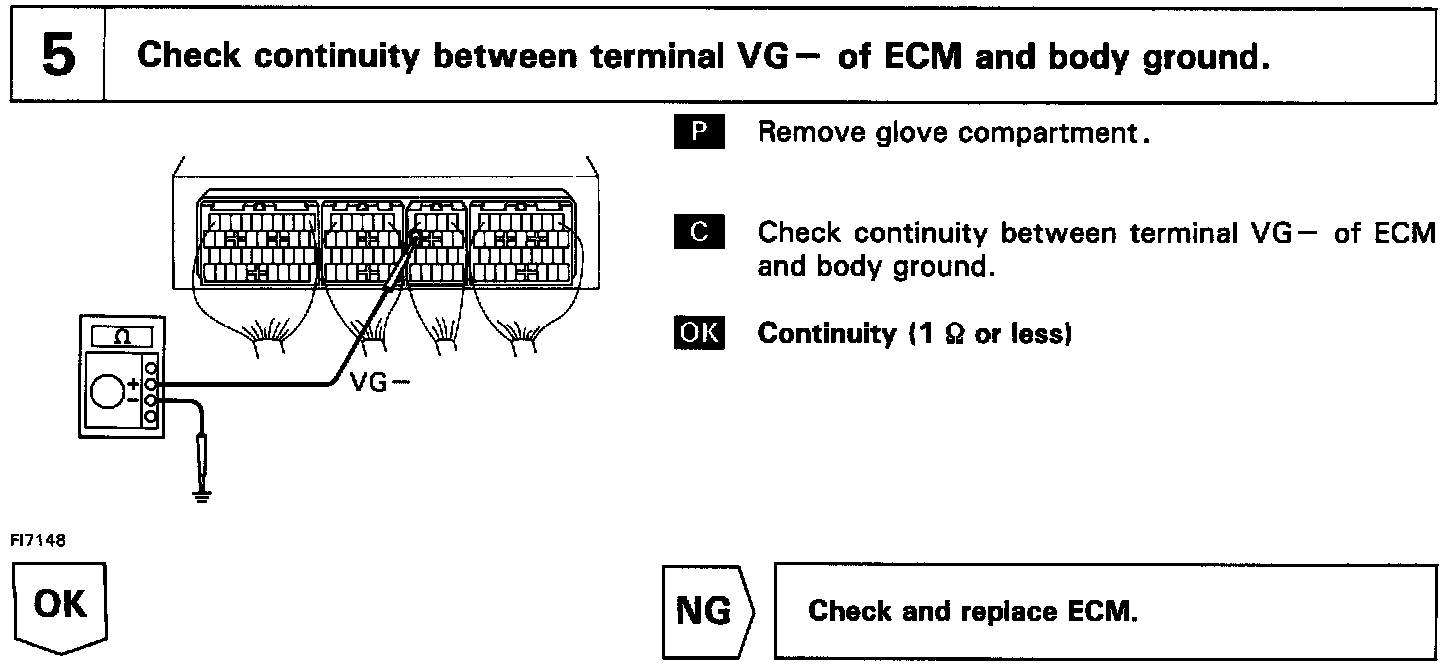

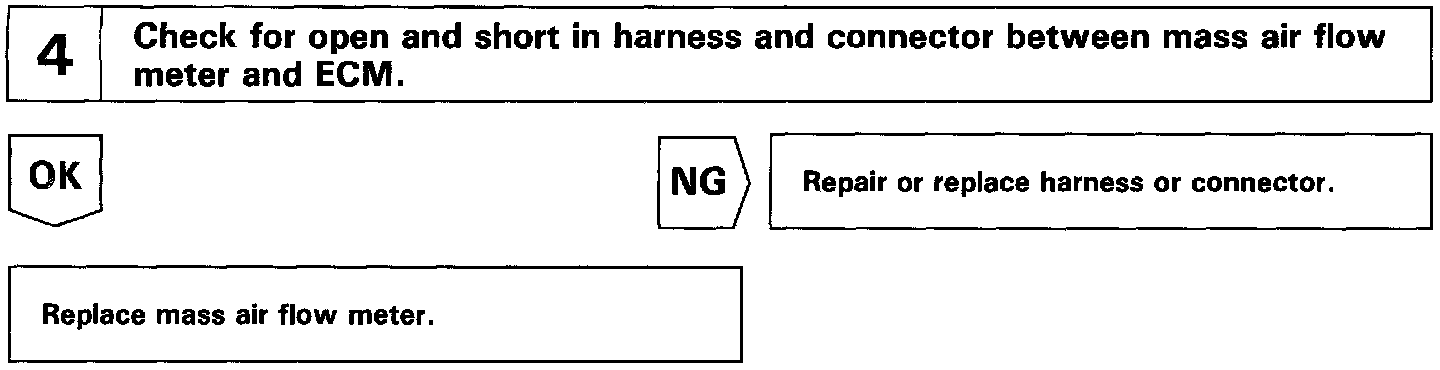

INSPECTION PROCEDURES 4 Thru 6
