Air Inlet Control Servomotor Circuit

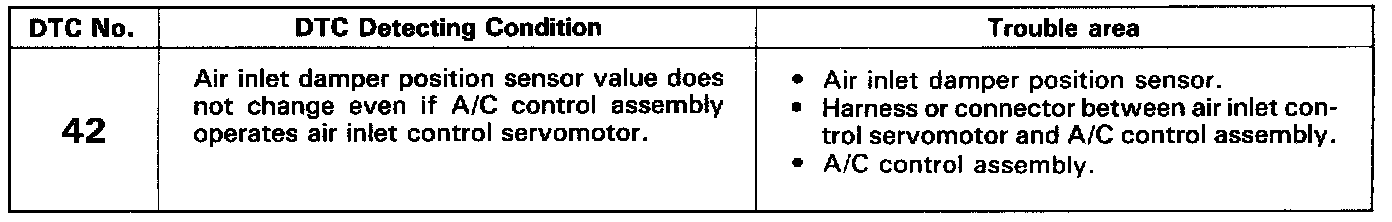

DTC 42 AIR INLET CONTROL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

The air inlet control servomotor is controlled by the A/C control assembly and moves the air inlet damper to the desired position.

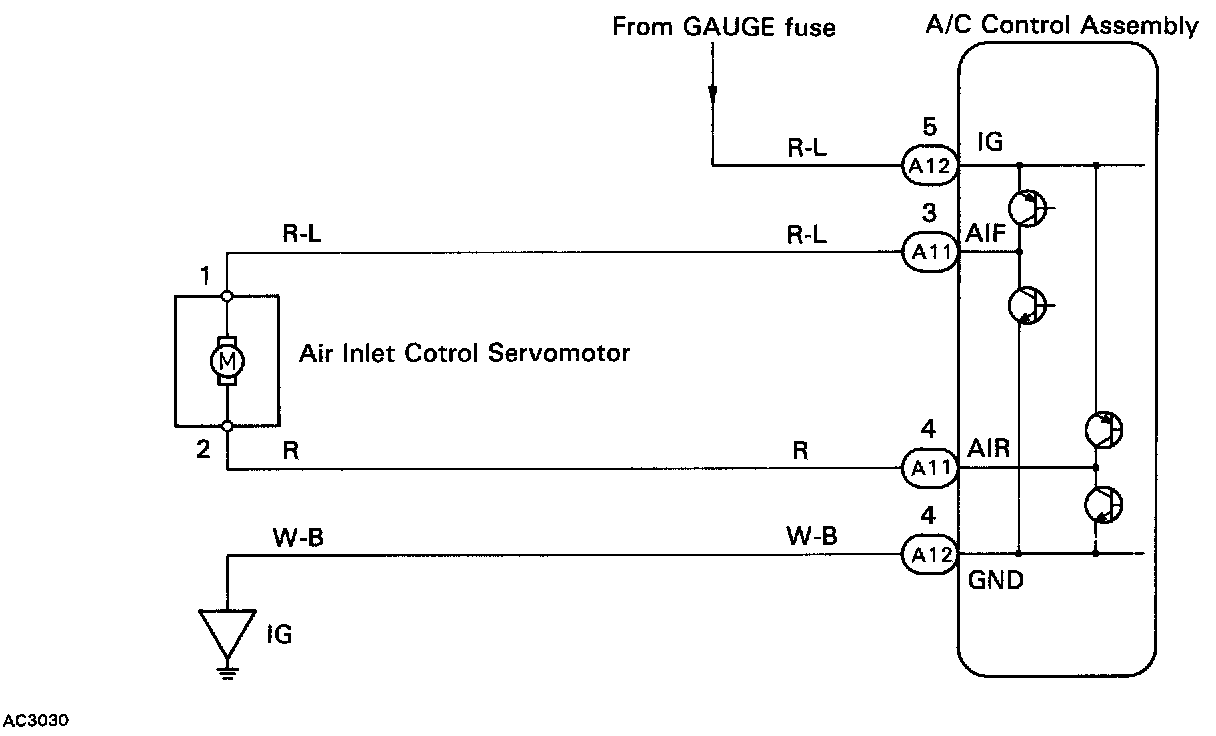

Wiring Diagram:





INSPECTION PROCEDURE

Step 1:

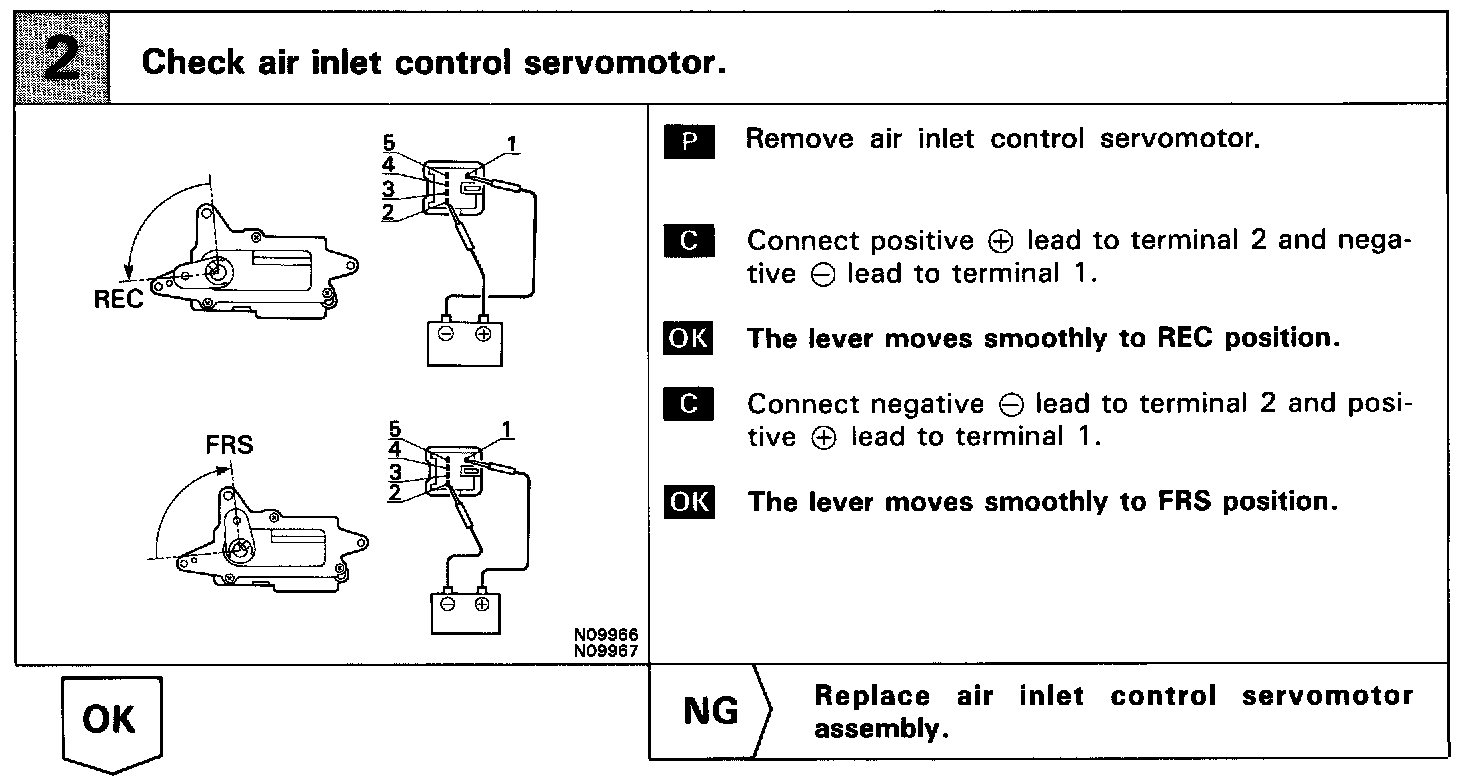

Step 2:

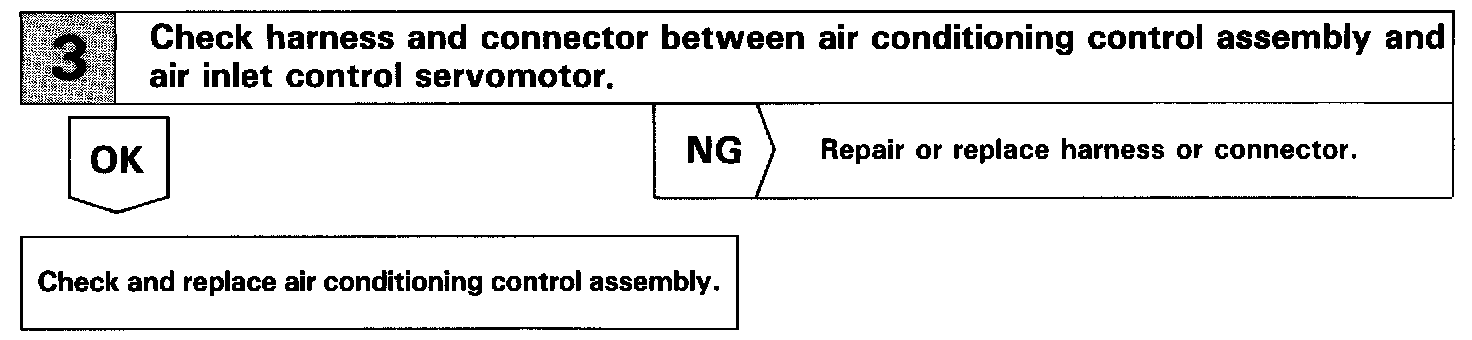

Step 3:
