Air Mix Control Servomotor Circuit

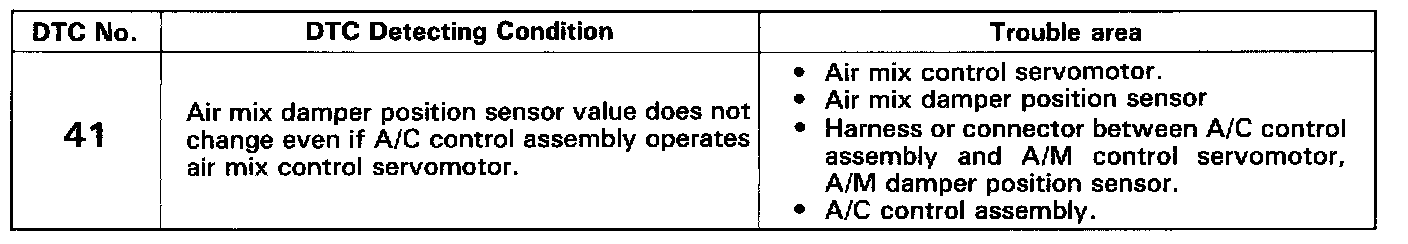

DTC 41 AIR MIX CONTROL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

This air mix control servomotor is controlled by the A/C control assembly and moves the air mix damper to the desired position.

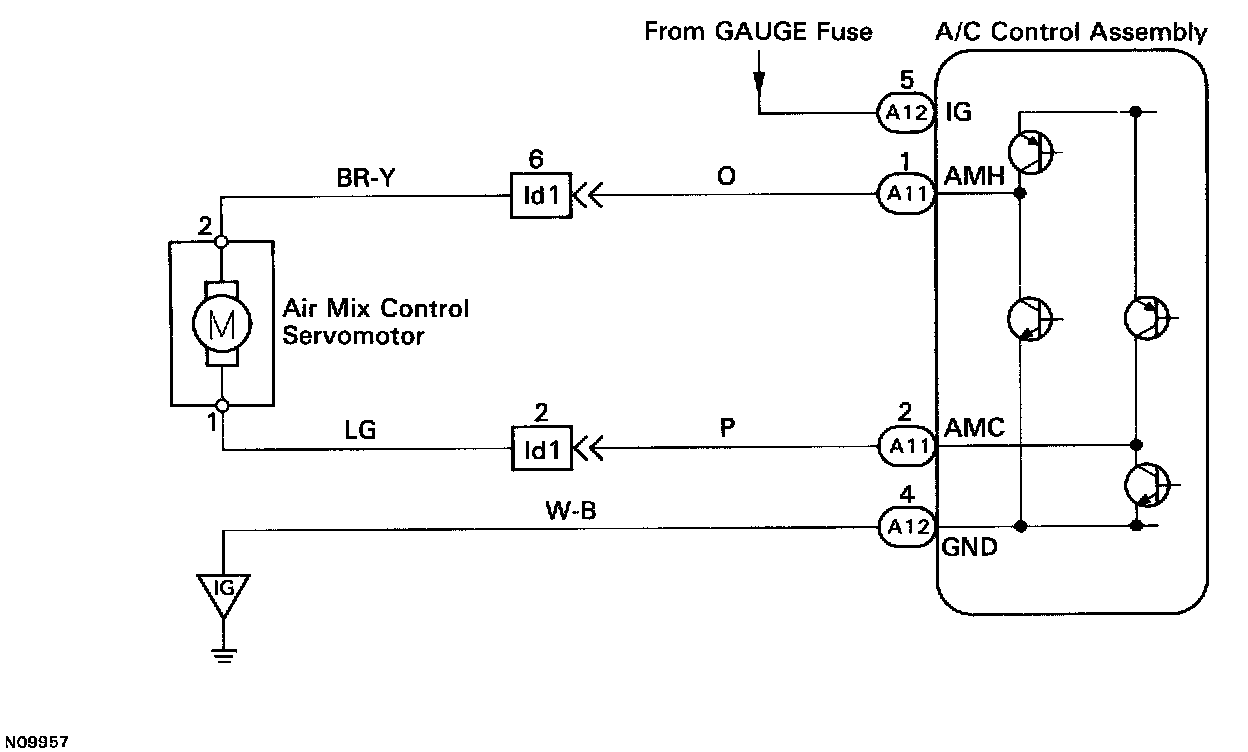

Wiring Diagram:





INSPECTION PROCEDURE

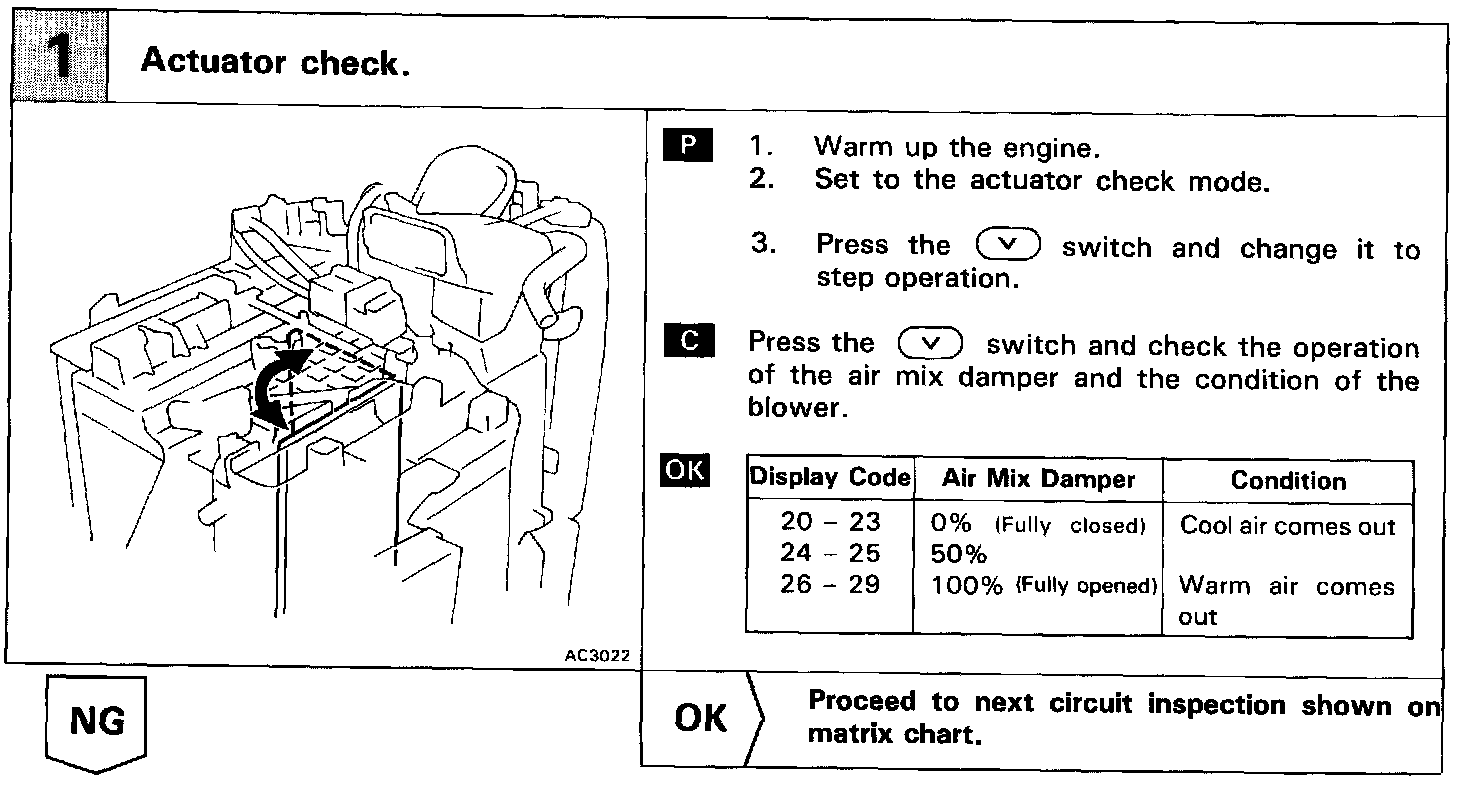

Step 1:

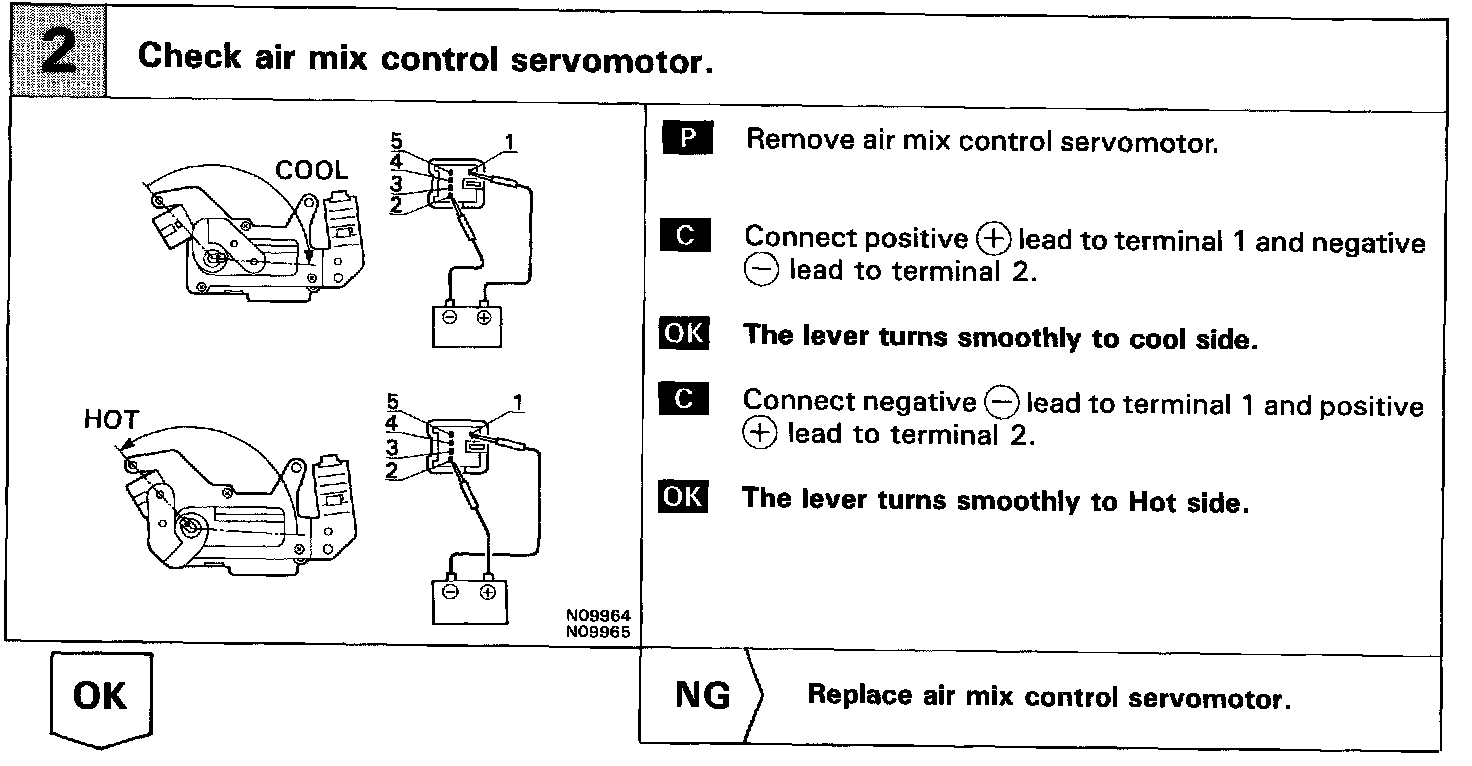

Step 2:





Step 3:
