SFI System

TROUBLE CODE DESCRIPTIONS (SAE Controlled)

HINT: Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors. If a malfunction code is displayed during the diagnostic trouble code check in check mode, check the circuit for that code listed in the table below (Proceed to the page given for that circuit).

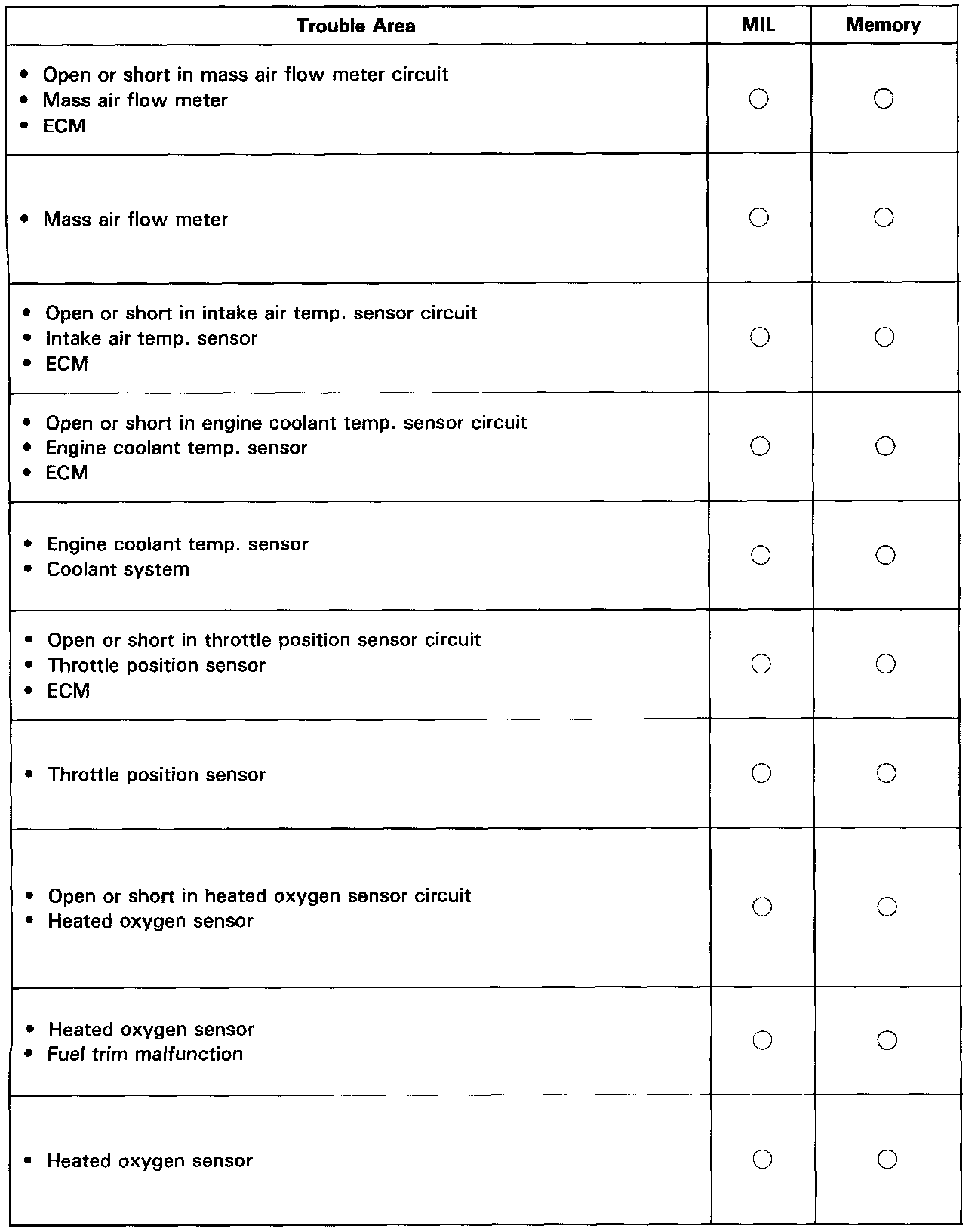

Trouble Codes P0100 Thru P0133

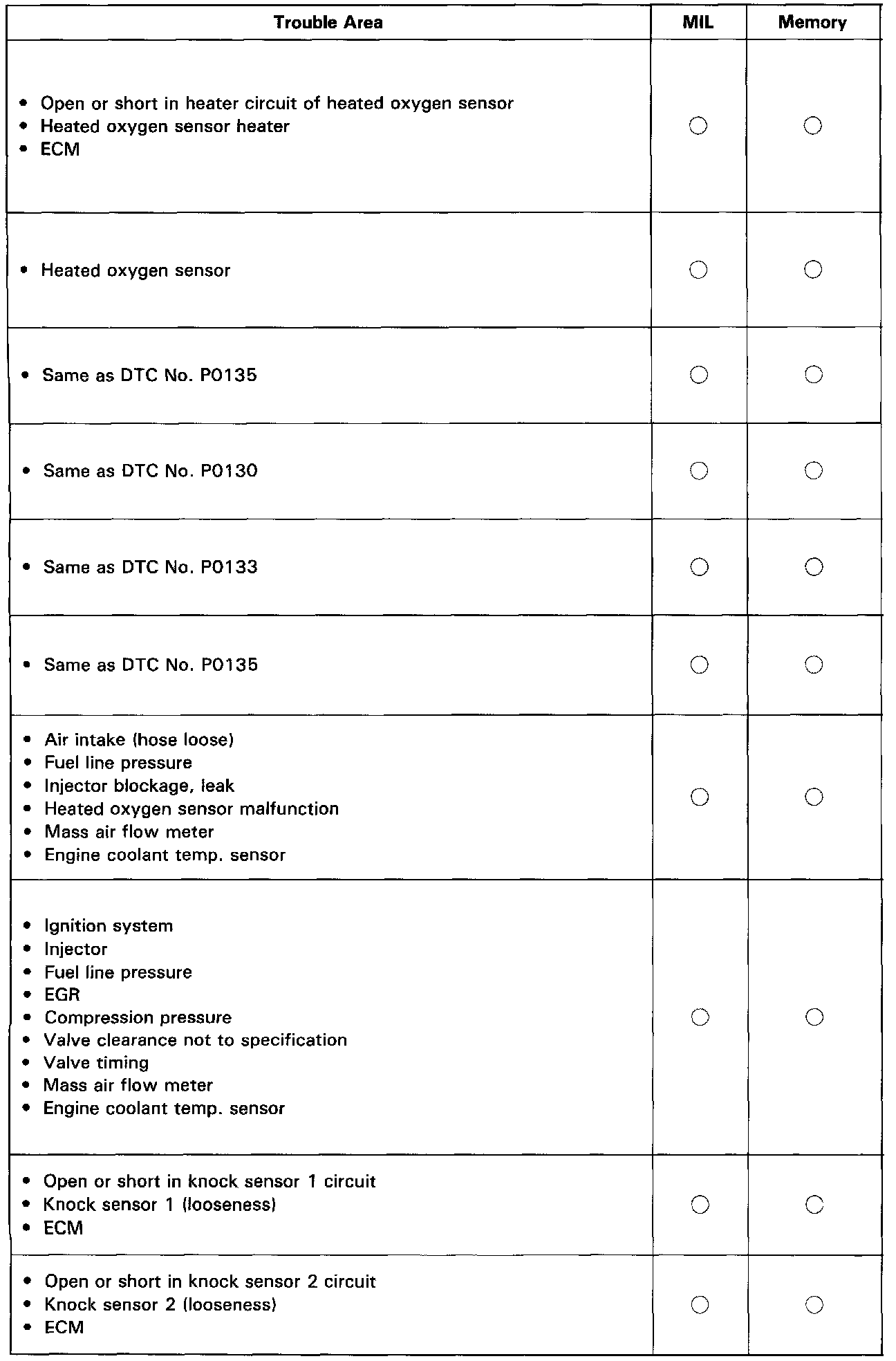

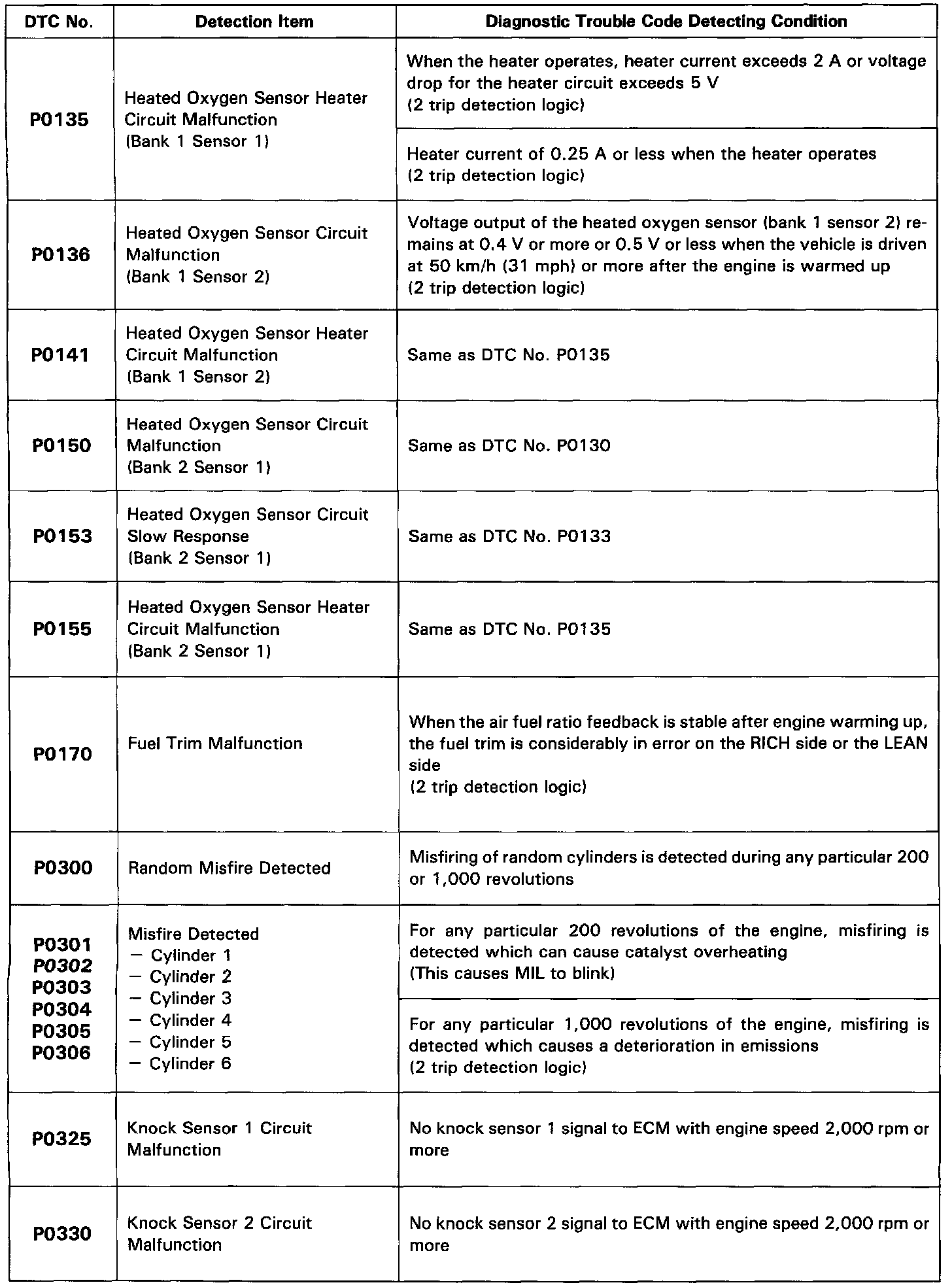

Trouble Codes P0135 Thru P0330

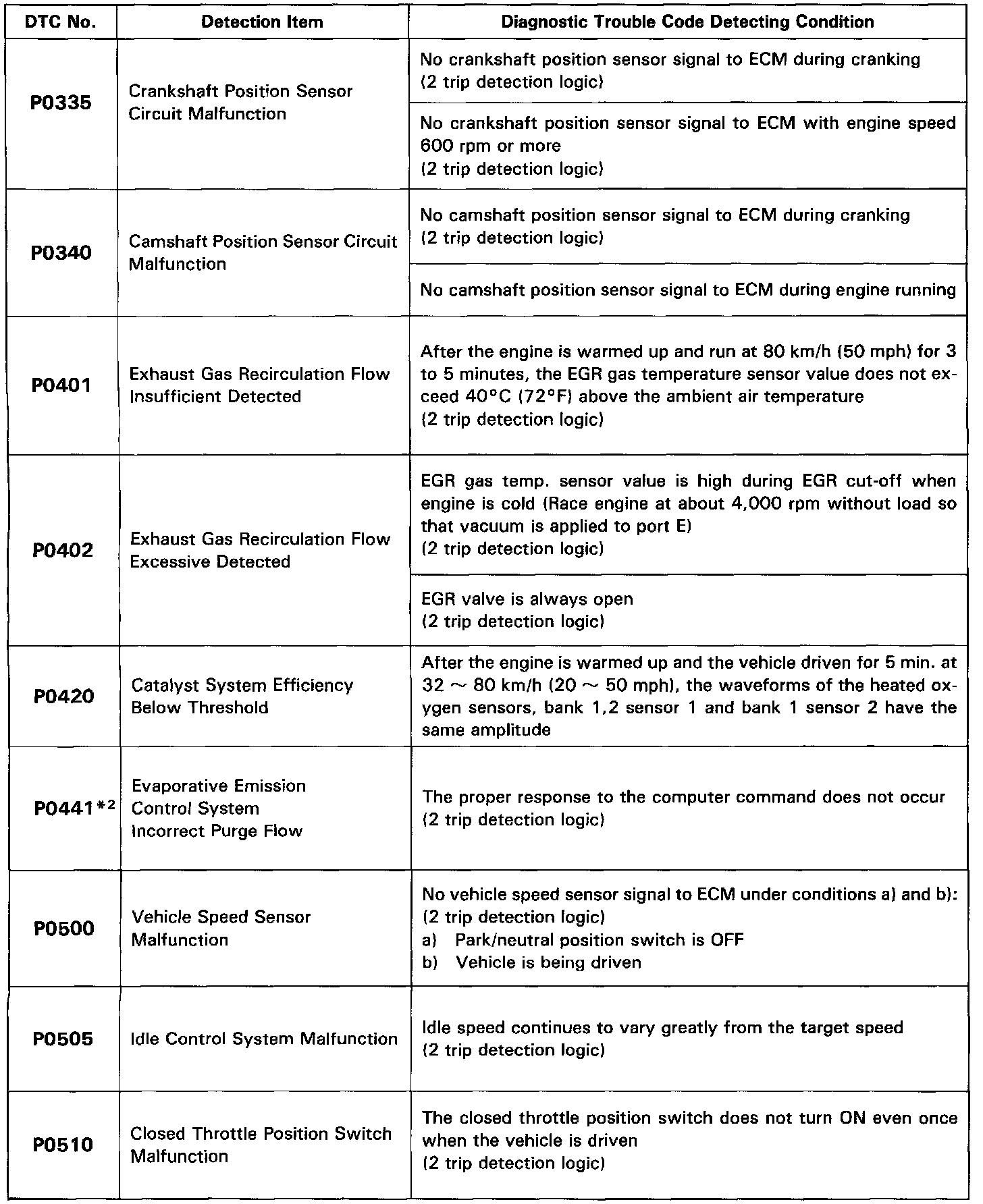

Trouble Codes P0335 Thru P0510

Footnote:
(*1): _ ...ML does not light up
0... MIL lights up

(*2): Only for California specification vehicles.

TROUBLE CODE DESCRIPTIONS (Manufacturer Controlled)

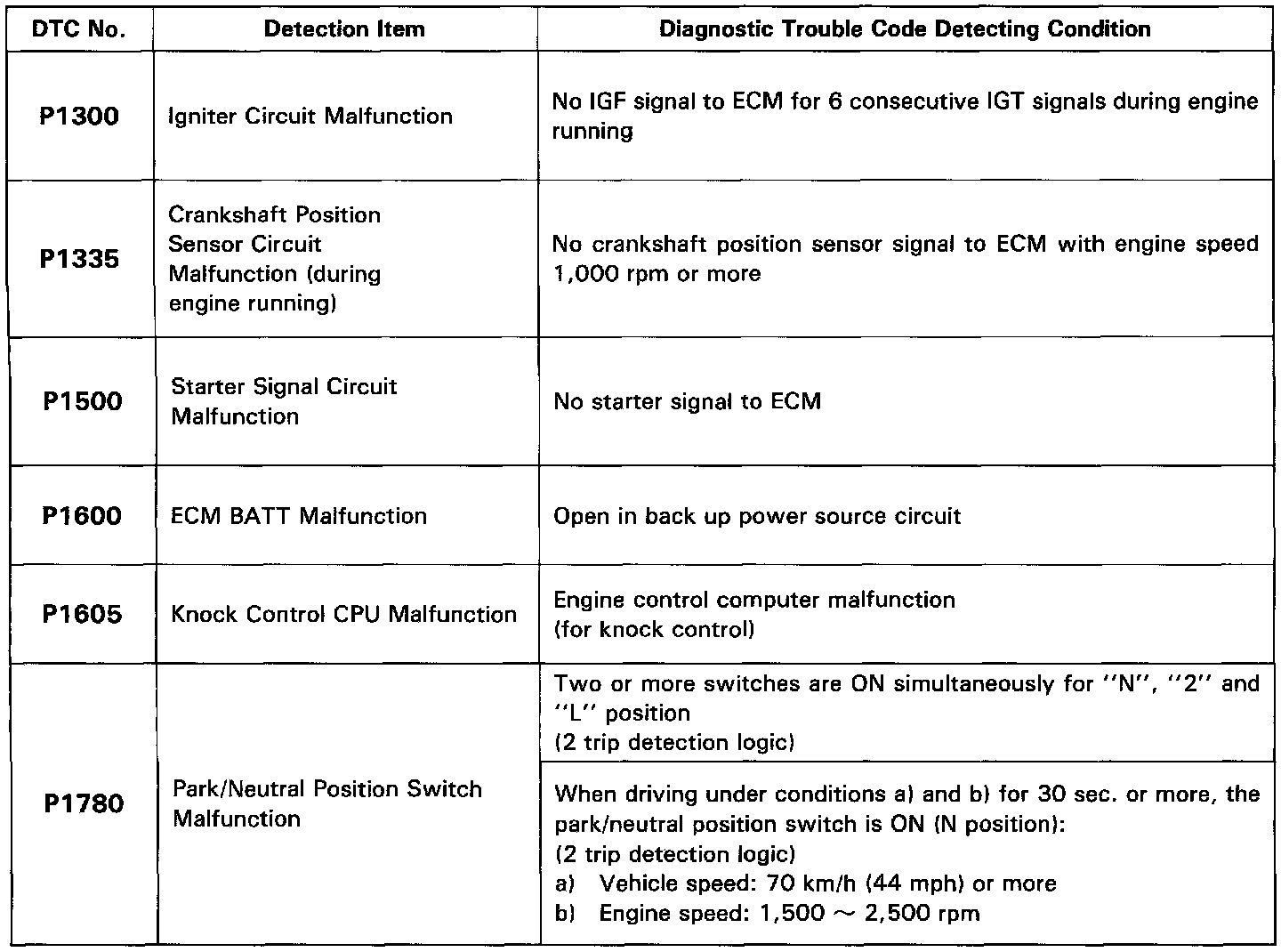

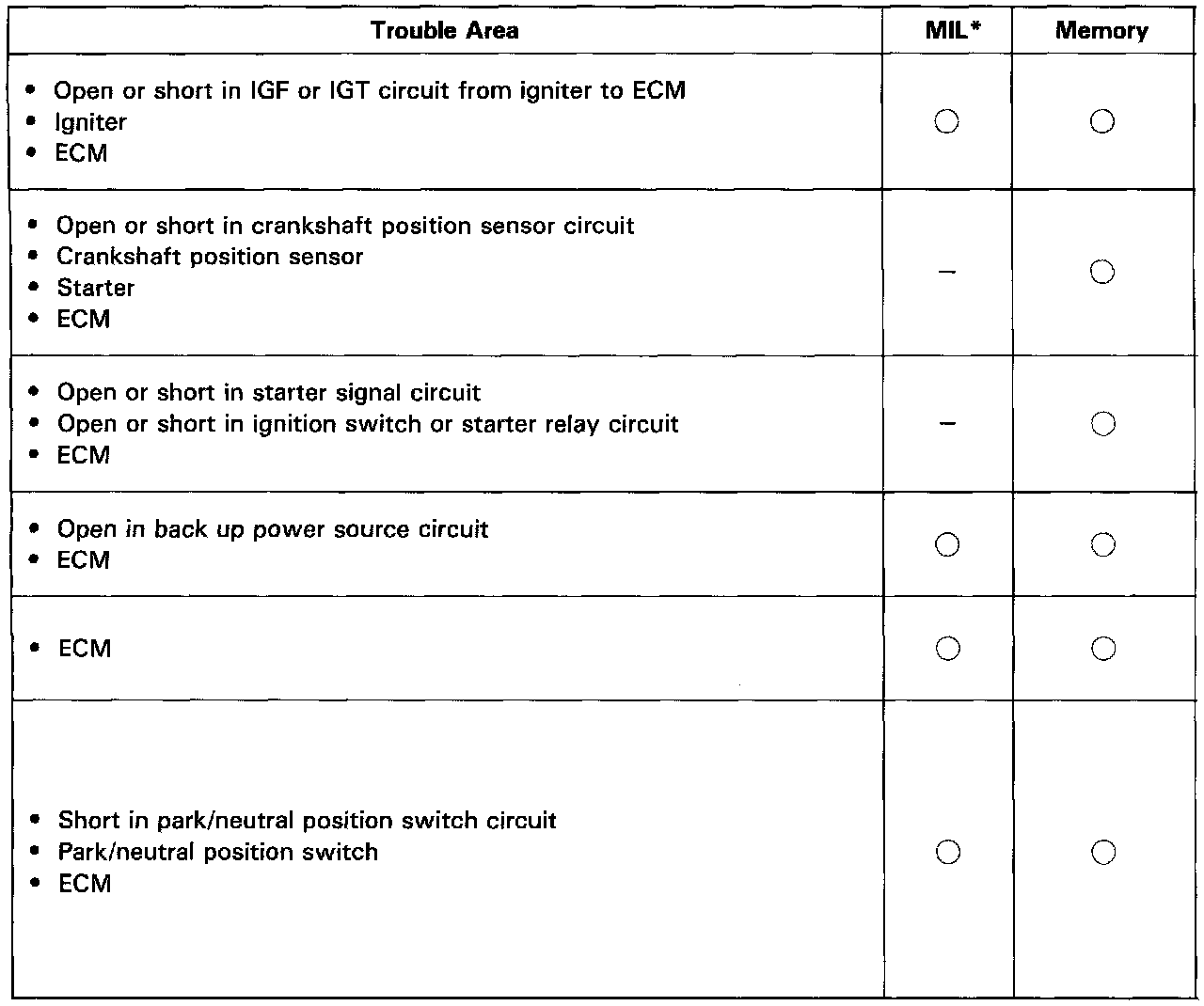

Trouble Codes P1300 THRU P1780

Footnote
(*): _ ...MIL does not light up
O...MIL lights up

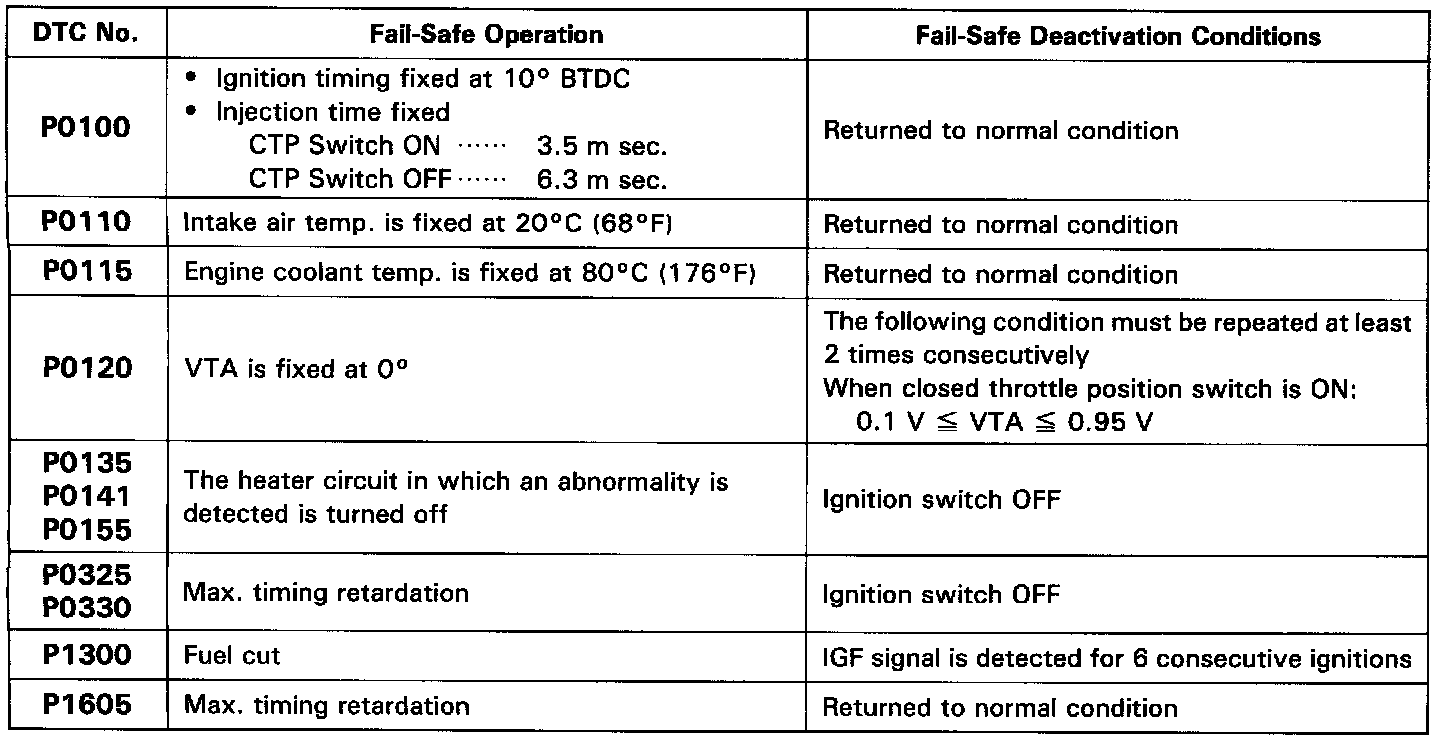

FAIL-SAFE MODE




If any of the following codes is recorded, the ECM enters fail-safe mode.

Back-up Function
If there is trouble with the program in the ECM and ignition signals (IGT) are not output from the microcomputer, the ECM controls fuel injection and ignition timing at predetermined levels as a back-up function to make it possible to continue to operate the vehicle.
Furthermore, the injection duration is calculated from the starting signal (STA) and the closed throttle position switch signal (IDL). Also, the ignition timing is fixed at 50 BTDC, without relation to the engine speed.

HINT: If the engine is controlled by the back-up function, the malfunction indicator lamp lights up to warn the driver of the malfunction but the diagnostic trouble code is not output.
