Scan Tool Testing and Procedures

NORMAL SCAN DATA VALUES





ECM DATA MONITOR BY USING LEXUS HAND-HELD TESTER
- Hookup the LEXUS hand-held tester to the DLC2.
- Monitor the ECM data by following the prompts on the tester screen.

HINT: LEXUS hand-held tester has a "Snapshot function which records the monitored data. Please refer to the LEXUS hand - held tester operator's manual for further details.

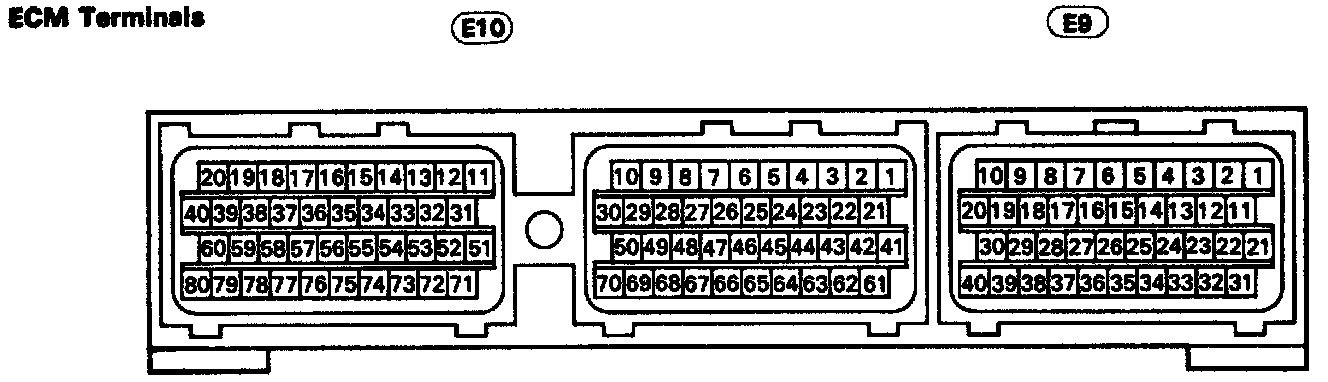

ECM TERMINAL VALUES MEASUREMENT BY USING LEXUS BRAKE-OUT BOX AND LEXUS HAND-HELD TESTER

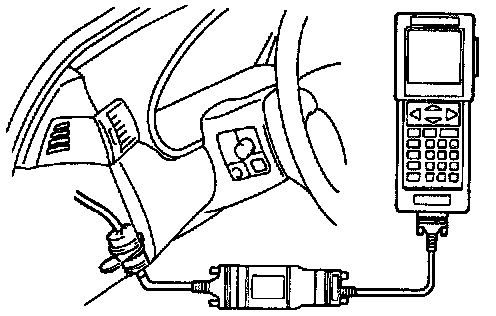

- Hook up the LEXUS brake-out box and LEXUS hand-held tester to the vehicle.

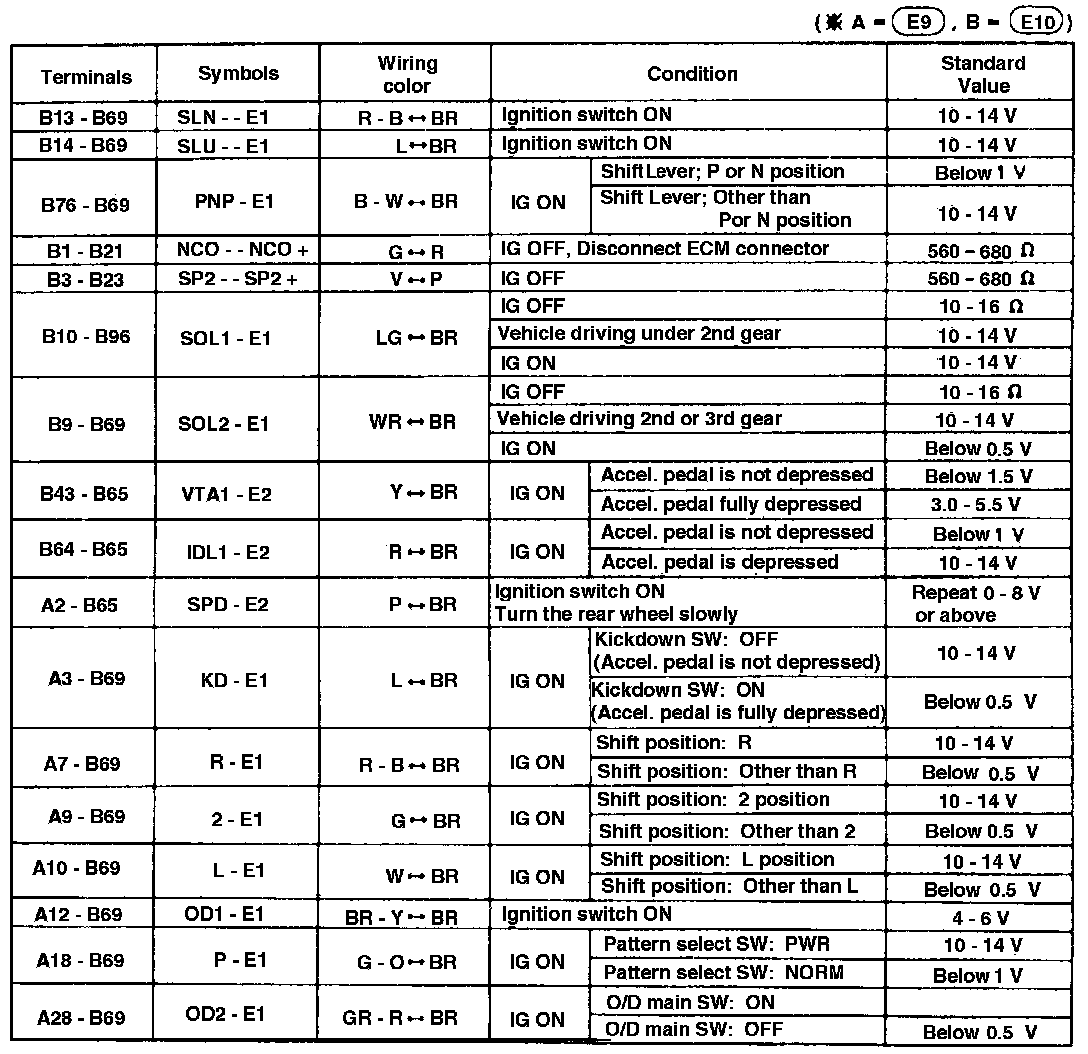

- Read the ECM input/output values by following the prompts on the tester screen.

HINT: LEXUS hand-held tester has a "Snapshot" function. This records the measured values and is effective in the diagnosis of intermittent problems. Please refer to the LEXUS hand-held tester/LEXUS brake-out box operator's manual for further details.
