TE1 Terminal Circuit

CIRCUIT DESCRIPTION
The Engine Control Module (ECM) displays diagnostic trouble codes using the O/D OFF indicator light when terminals TE1 and E1 of the DLC2 or DLC1 are connected.




DIAGNOSTIC CHART

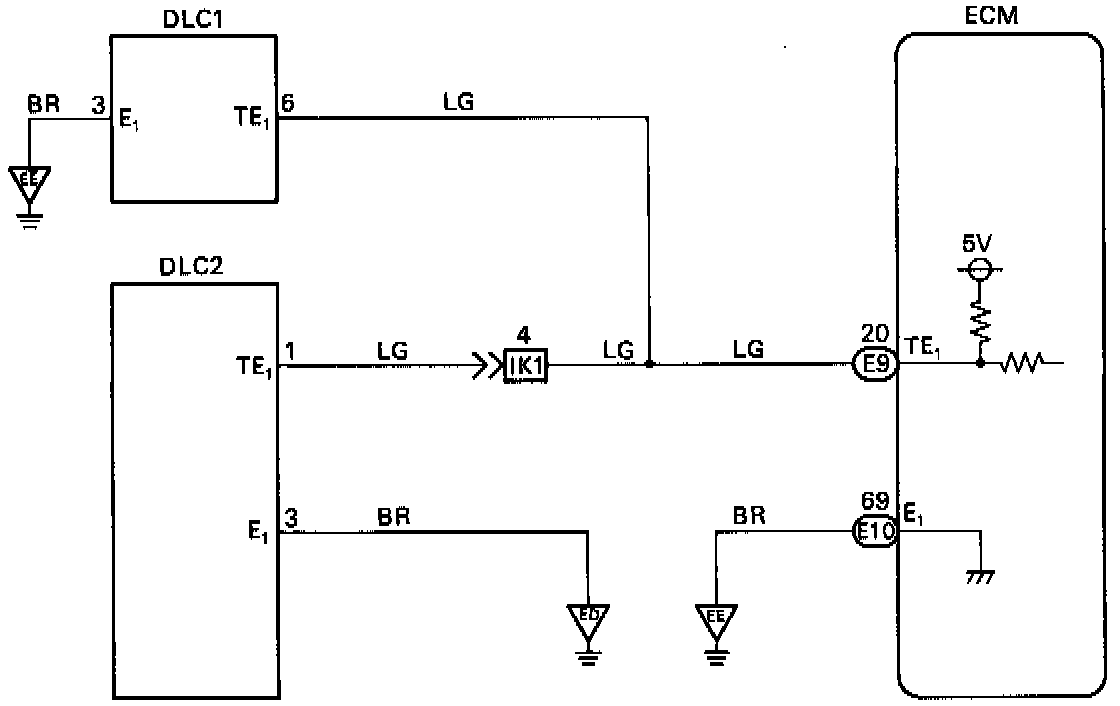

WIRING DIAGRAM

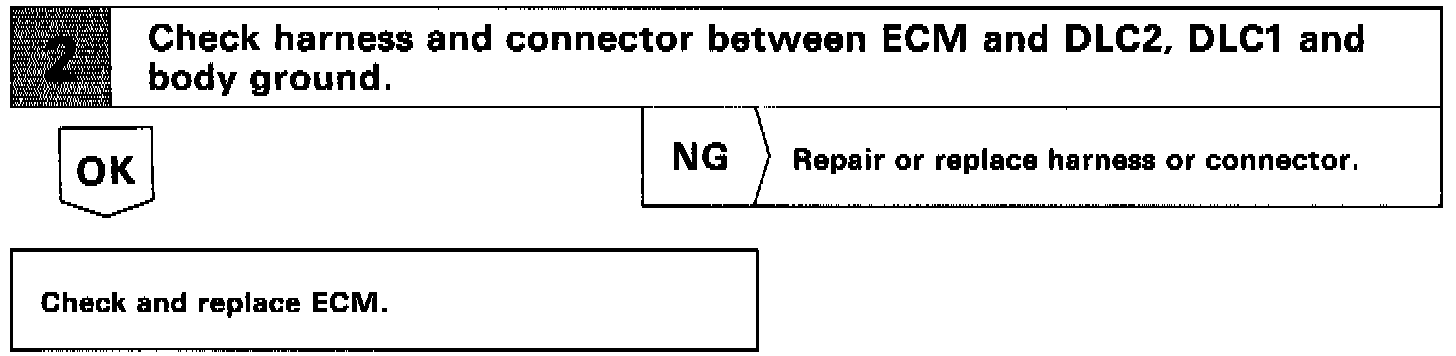

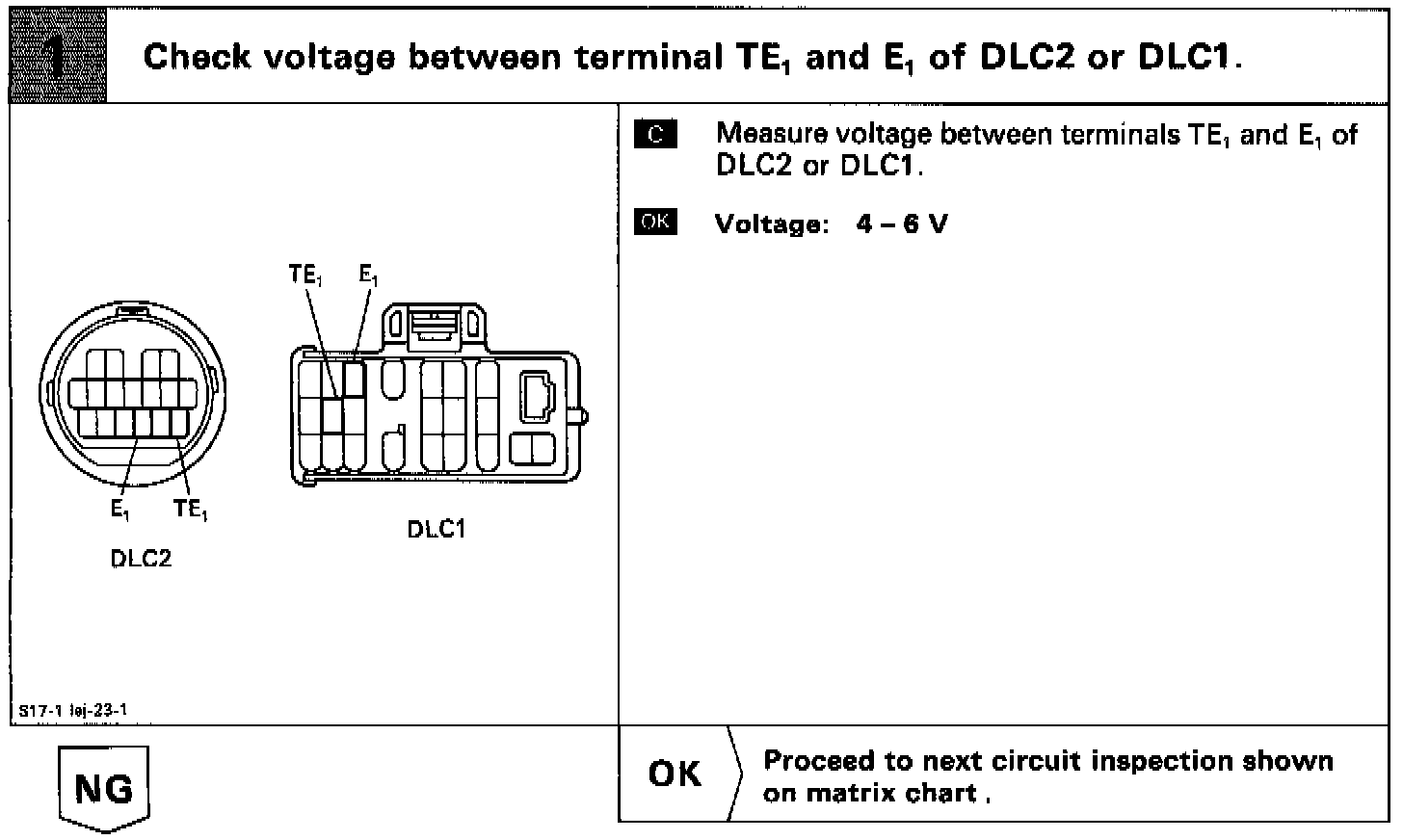

INSPECTION PROCEDURE
