Special Service Tools - Essential & Available
SPECIAL SERVICE TOOLSSS94-OO1
APRIL 15, 1994
ALL MODELS
Title:
1994 LEXUS SPECIAL SERVICE TOOLS
The following TSIB contains information regarding the 1994 Special Service Tools (SST's). Both the Essential and Available SST's are listed by part number, tool name, model application, illustration / usage (for Essential SST's only) and appropriate reference in repair manual. All Special Service Tools (SST's) may be ordered by contacting OTC at 1-8OO-933-8335.
SPECIAL SERVICE TOOL INDEX:

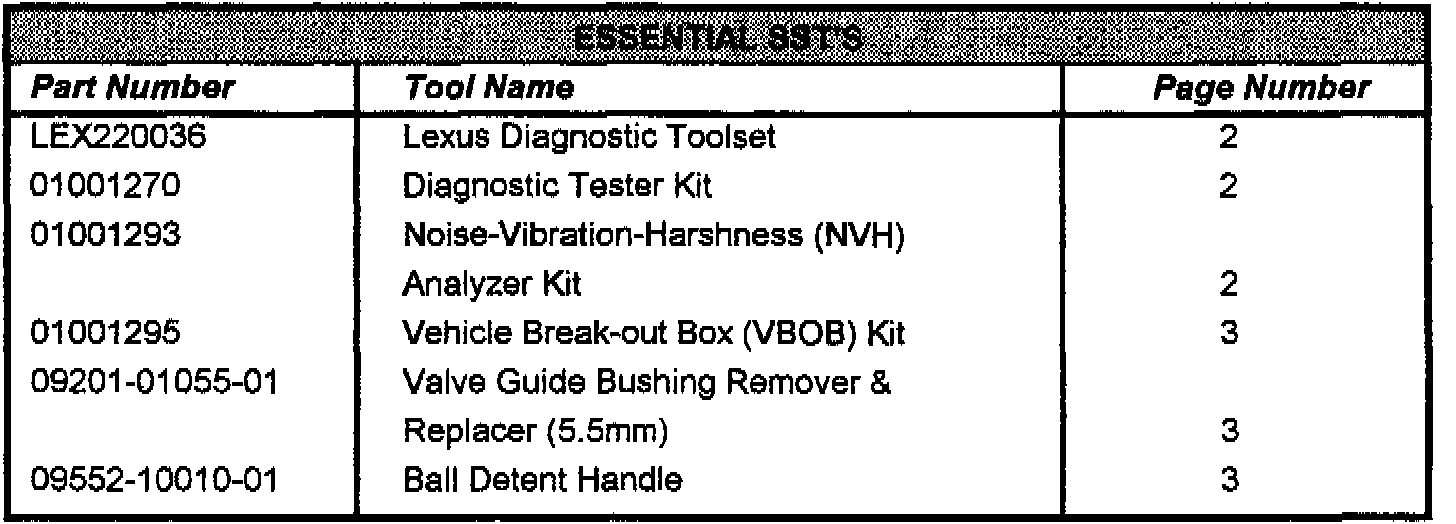

Essential SST's

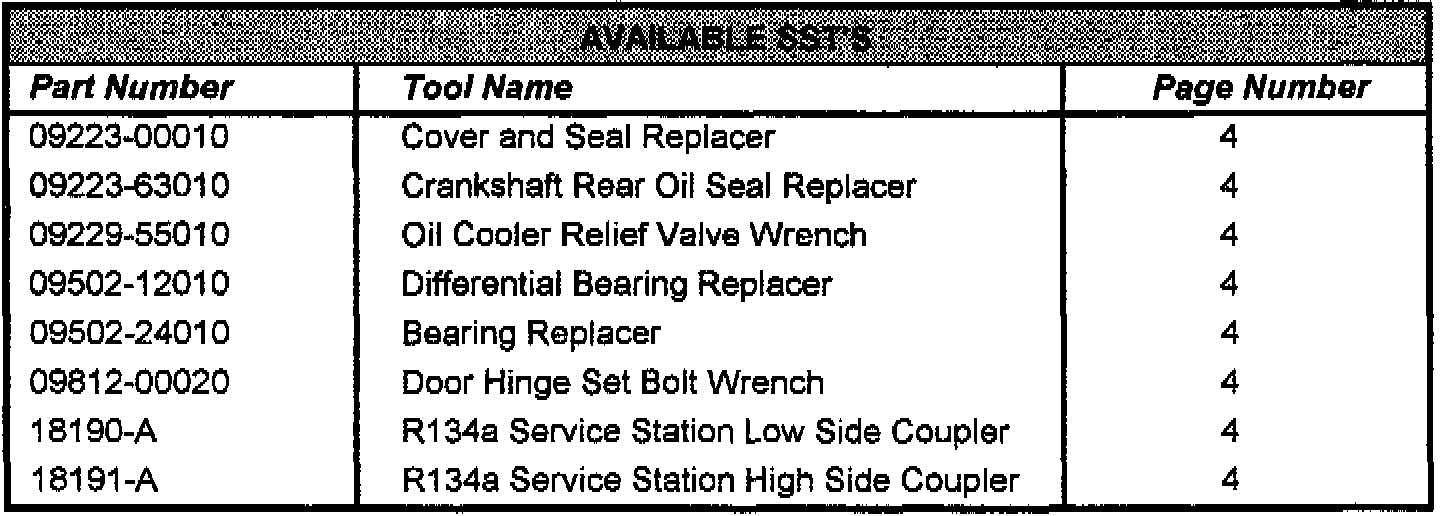

Available SST's
1994 LEXUS SPECIAL SERVICE TOOLS
ESSENTIAL SST'S:
LEXUS DIAGNOSTIC TOOLSET P/N - LEX220036
This toolset includes:
Diagnostic Tester Kit
Vehicle Break-out Box (VBOB) Kit
Noise-Vibration-Harshness (NVH) / Accessory kit
Please refer to the following illustrations to locate applicable models and repair manual procedures.
SPECIAL SERVICE TOOL INDEX:

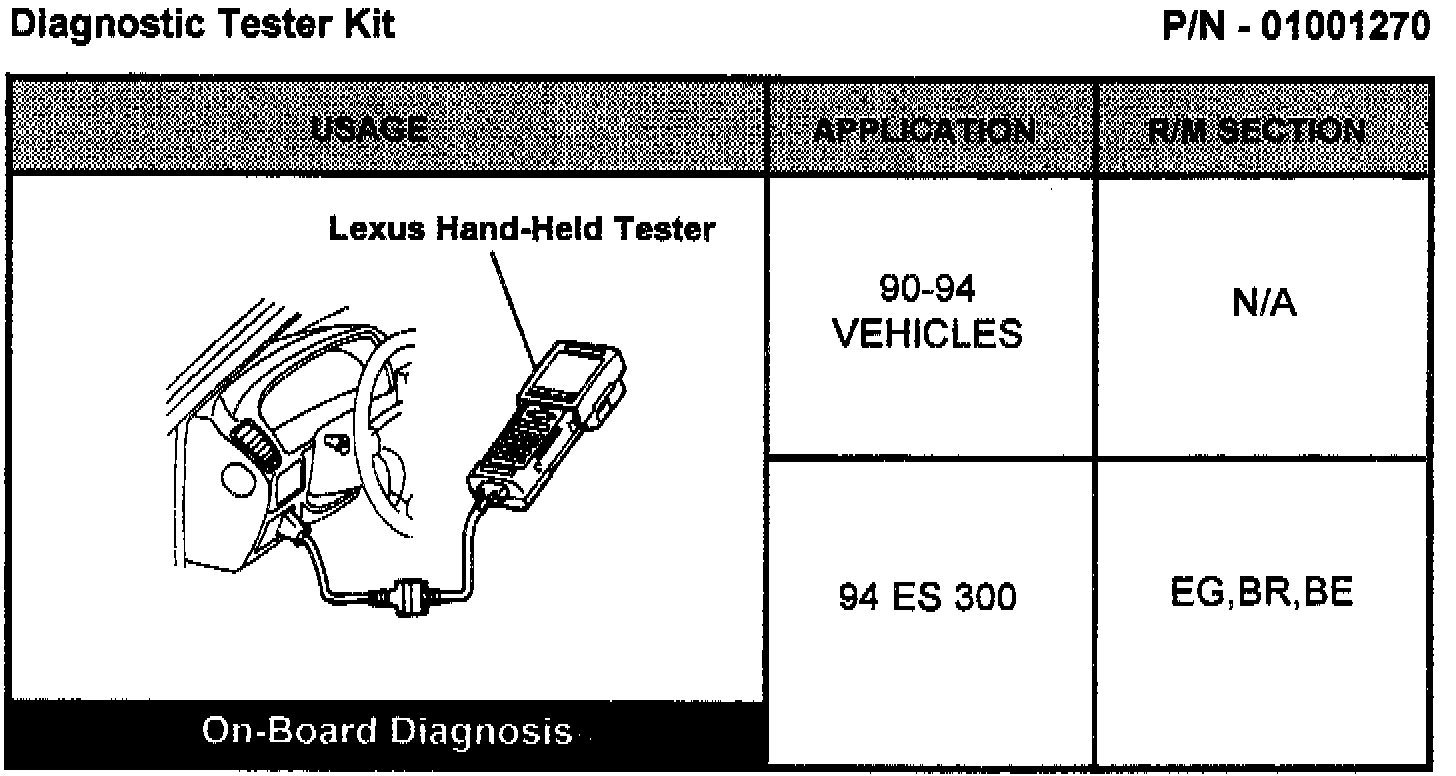

Diagnostic Tester Kit P/N - 01001270

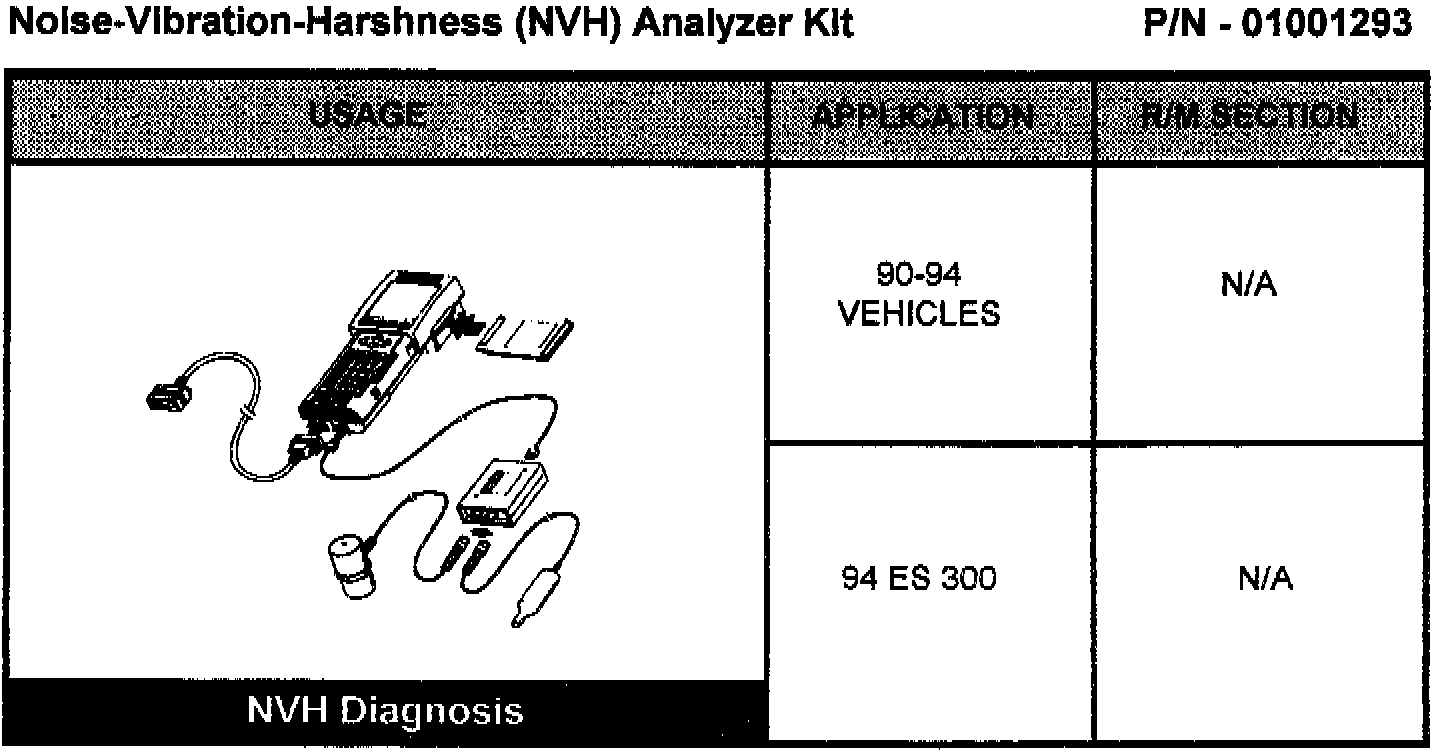

Noise-Vibration-Harshness (NVH) Analyzer Kit P/N - 01001293

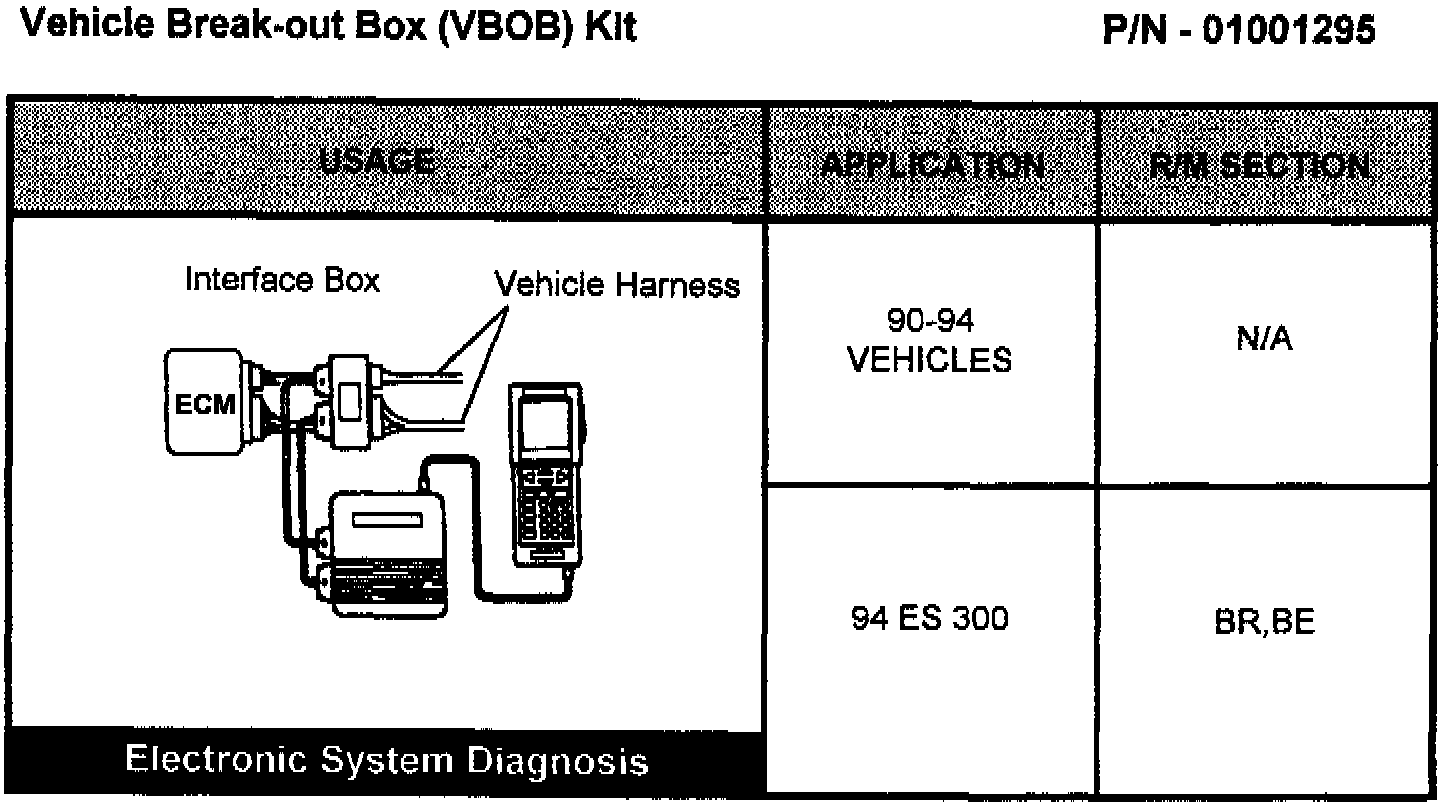

Vehicle Break-out Box (VBOB) Kit P/N - 01001295

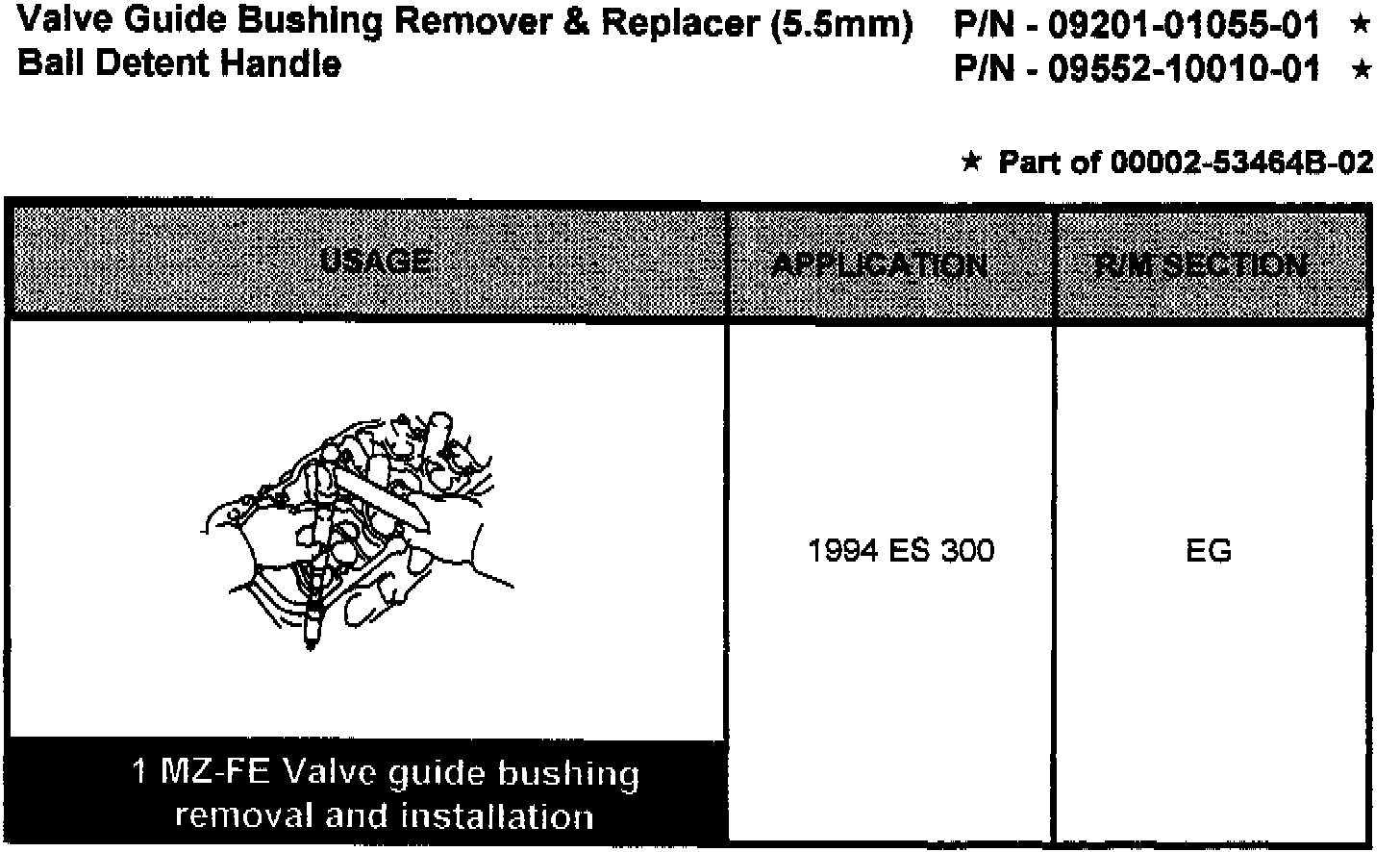

Valve Guide Bushing Remover & Replacer (5.5 mm) P/N - 09201-01055-01 *
Ball Detent Handle P/N - 09552-10010-01 *
* Part of 00002-53464B-02

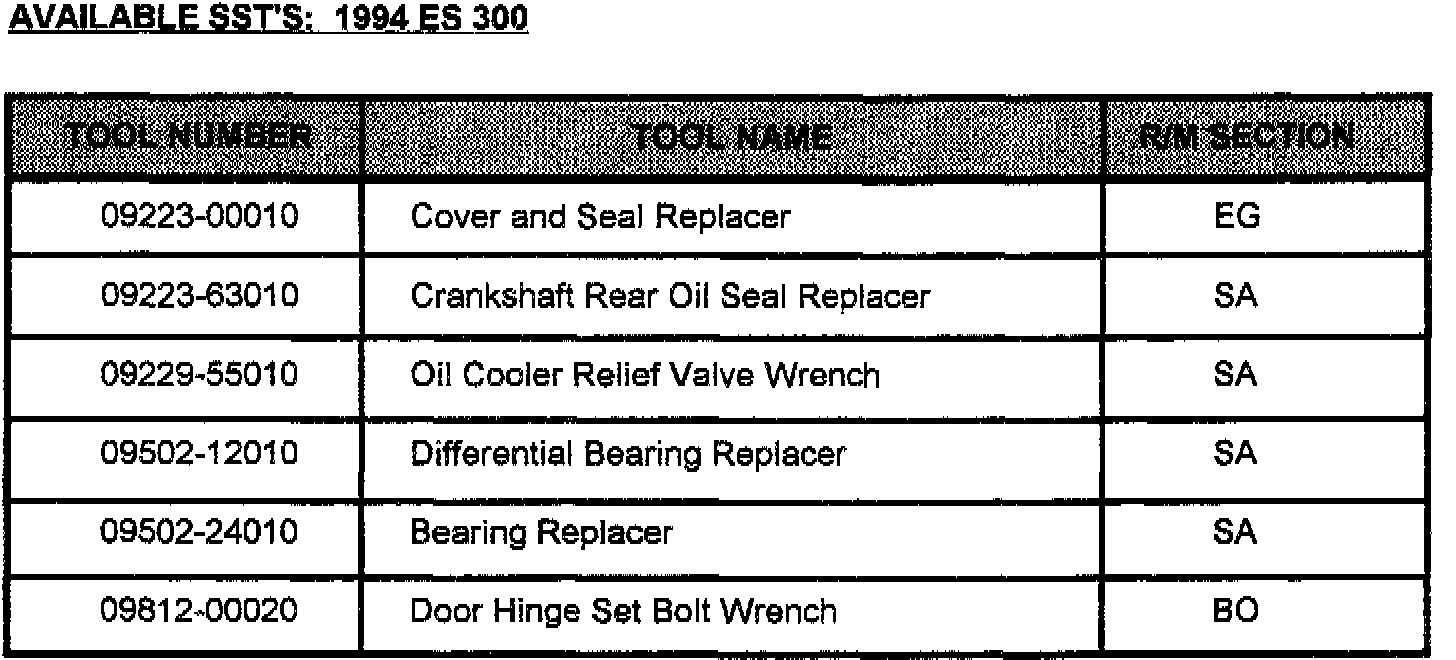

AVAILABLE SST'S: 1994 ES 300

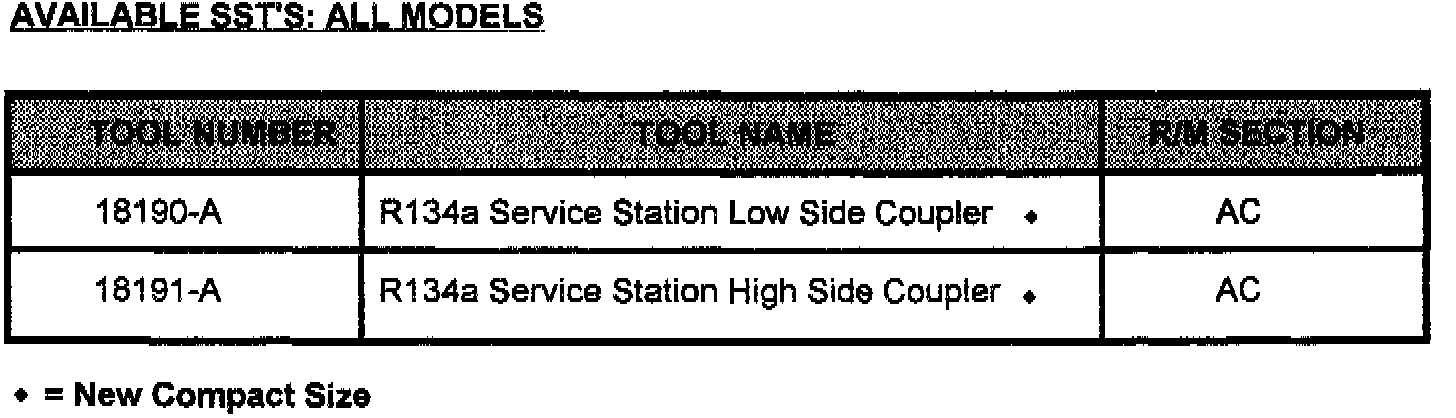

AVAILABLE SST'S: ALL MODELS
