FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
1994
>>
SC 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
A/T Technical Data
A/T Technical Data

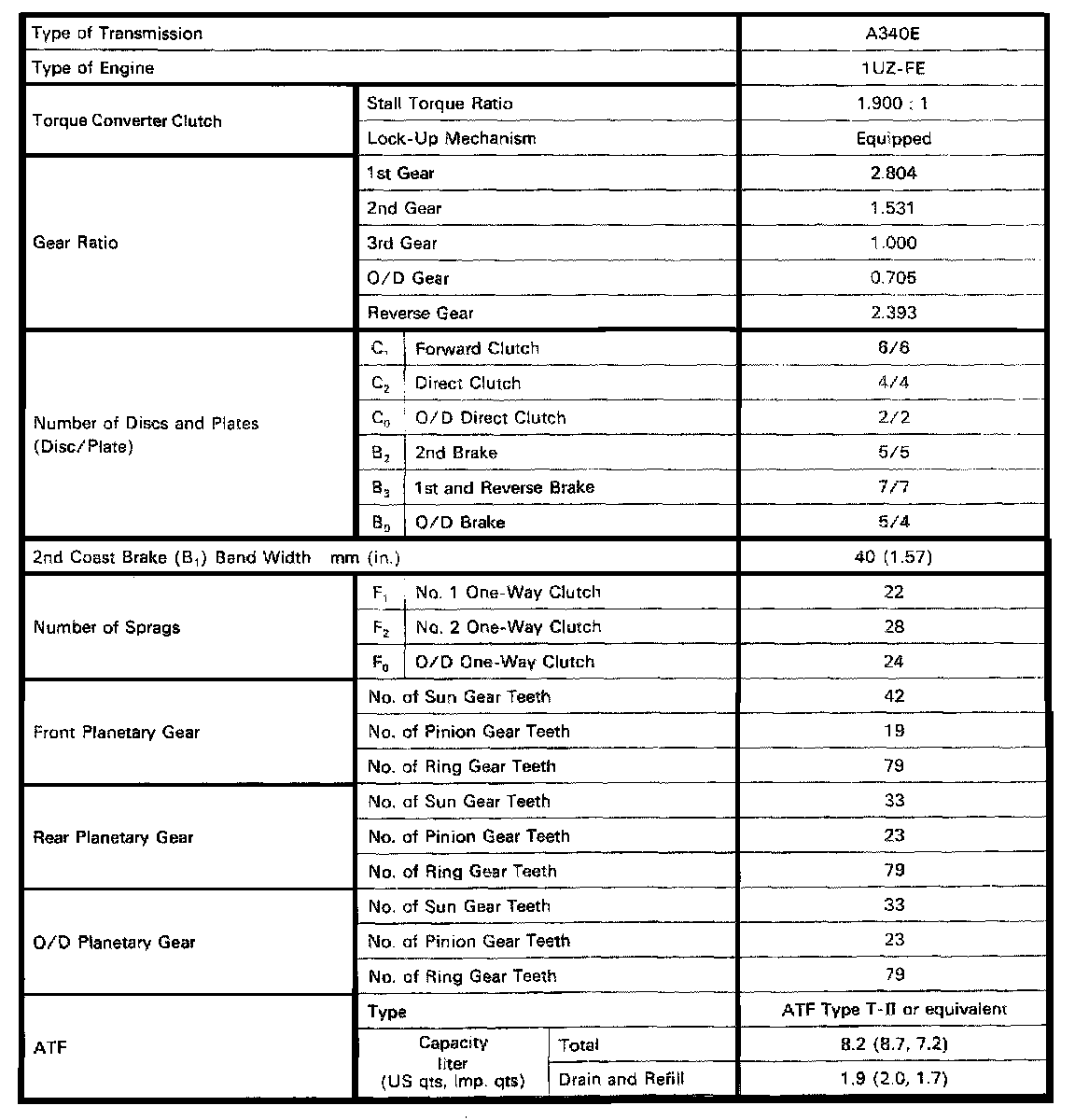

A340E 4-spd A/T, Gear Ratio/ Gear Teeth:

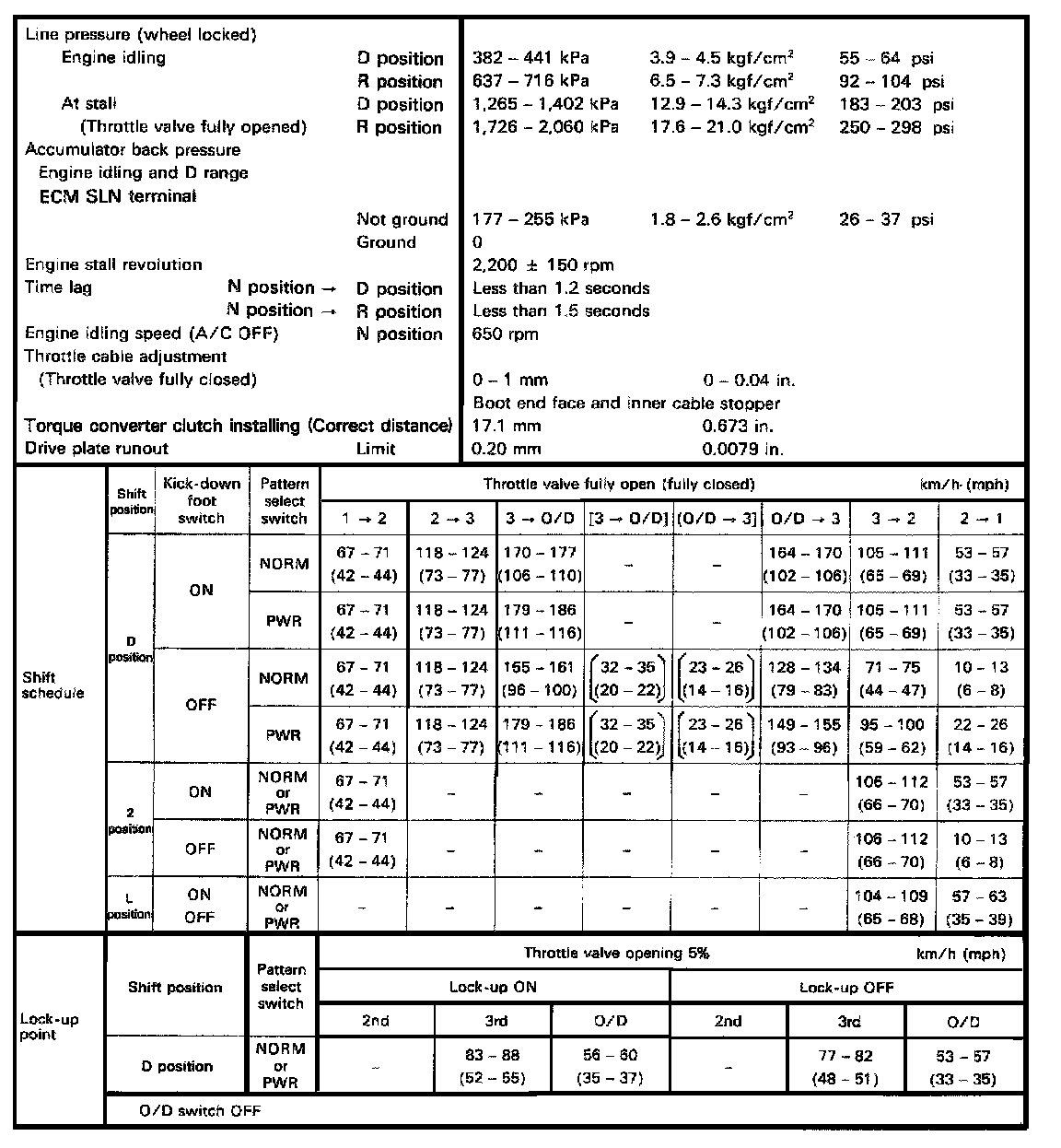

A340E 4-spd A/T, Line Pressure/ Shift Schedule:
