Crankshaft Position Sensor

PROCEDURE

NOTE: Cold and Hot in the following sentences express the temperature of the sensors themselves. Cold is from -10°C (14°F) to 50°C (104°F) and Hot is from 50°C (104°F) to 100°C (212°F).

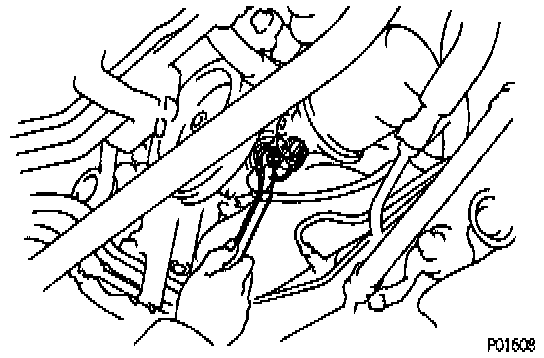

1. Remove crankshaft position sensor.

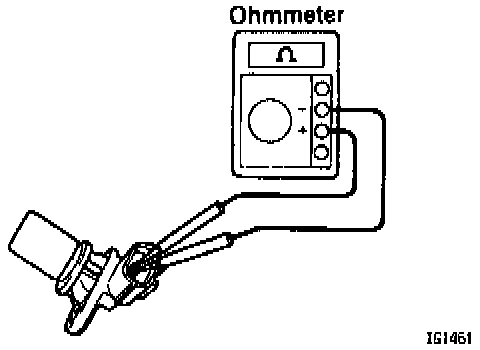

2. Inspect crankshaft position sensor resistance.





- Using an ohmmeter, measure the resistance between the terminals.

Resistance (Cold): 835 - 1,400 ohms
Resistance (Hot): 1,060 - 1,645 ohms

- If the resistance is not as specified replace the crankshaft position sensor.
3. Reinstall crankshaft position sensor.
