Assembly

PROCEDURE

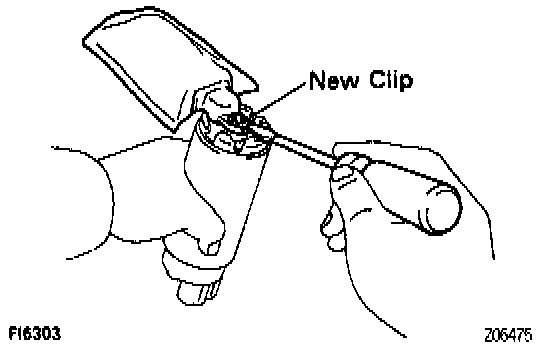

1. Install the Fuel Pump filter to the Fuel Pump using a new clip.





2. Install the Fuel Pump to the Fuel Pump bracket.
- Connect the fuel hose to the outlet port of the Fuel Pump.
- Install the rubber cushion to the Fuel Pump.

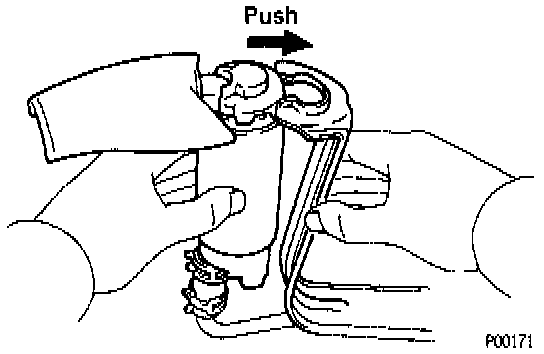

- Install the Fuel Pump by pushing the lower side of the Fuel Pump.
3. Install the set plate to the Fuel Pump.
- Connect the lead connector on the set plate to the Fuel Pump.
