On Vehicle Inspection

INSPECTION

Inspect Injector Resistance





1. Remove engine wire covers and throttle body.
2. Disconnect the injector connectors.

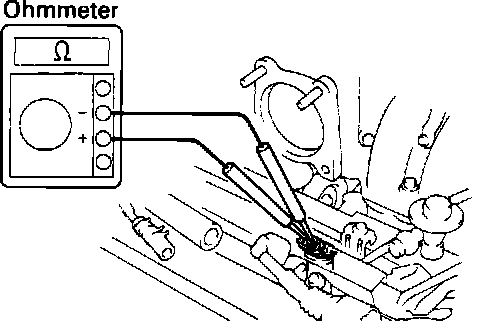

Checking Injector Resistance:

3. Using an ohmmeter, measure the resistance between the terminals.

Resistance: 13.4 - 14.2 ohms

If the resistance is not as specified, replace the injector.
4. Reconnect the injector connectors.
5. Reinstall throttle body and engine wire covers.
