Home >> Lexus >> 1994 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Standard Values of ECM Terminals

Standard Values of ECM Terminals

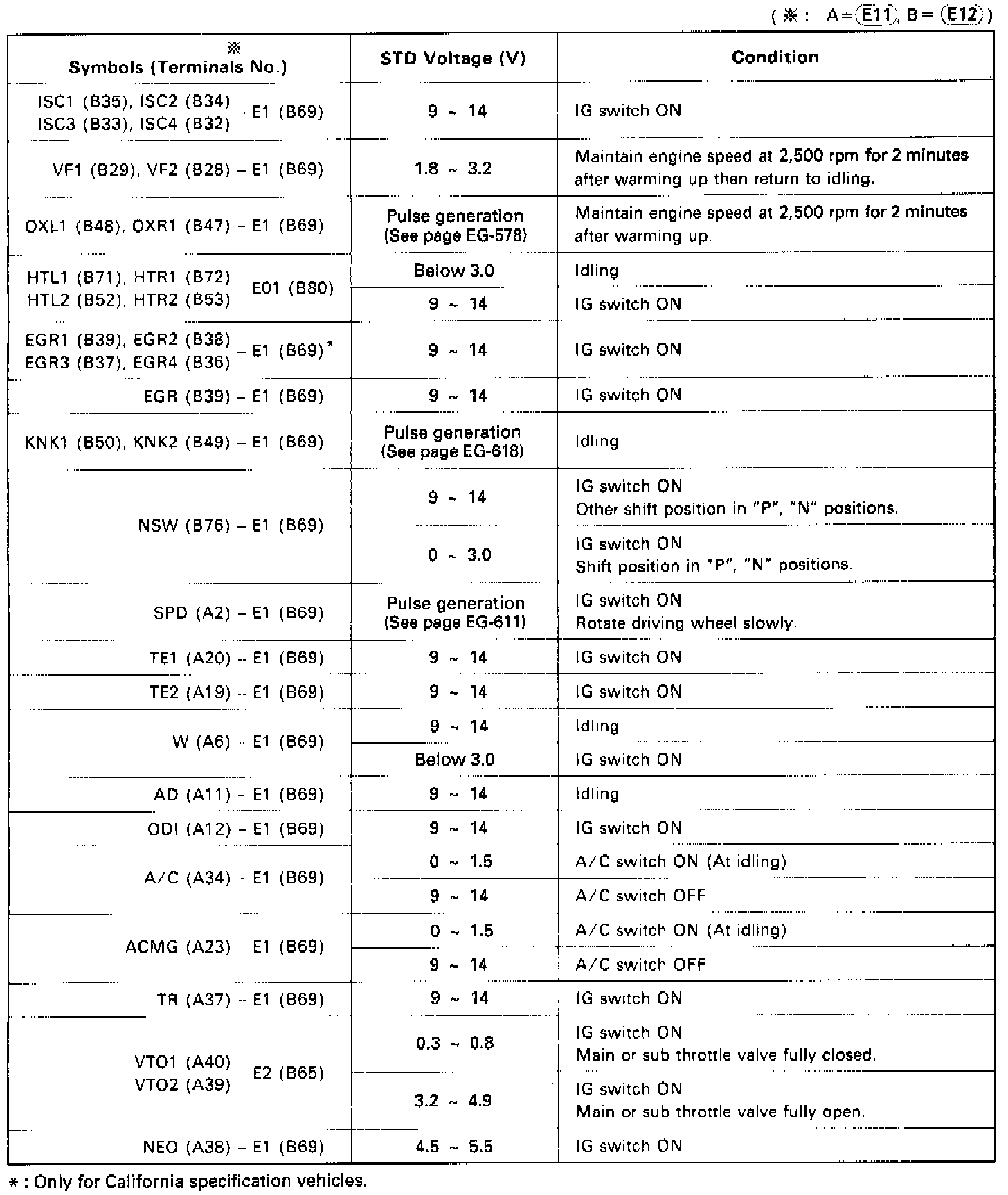

Chart 1 of 2

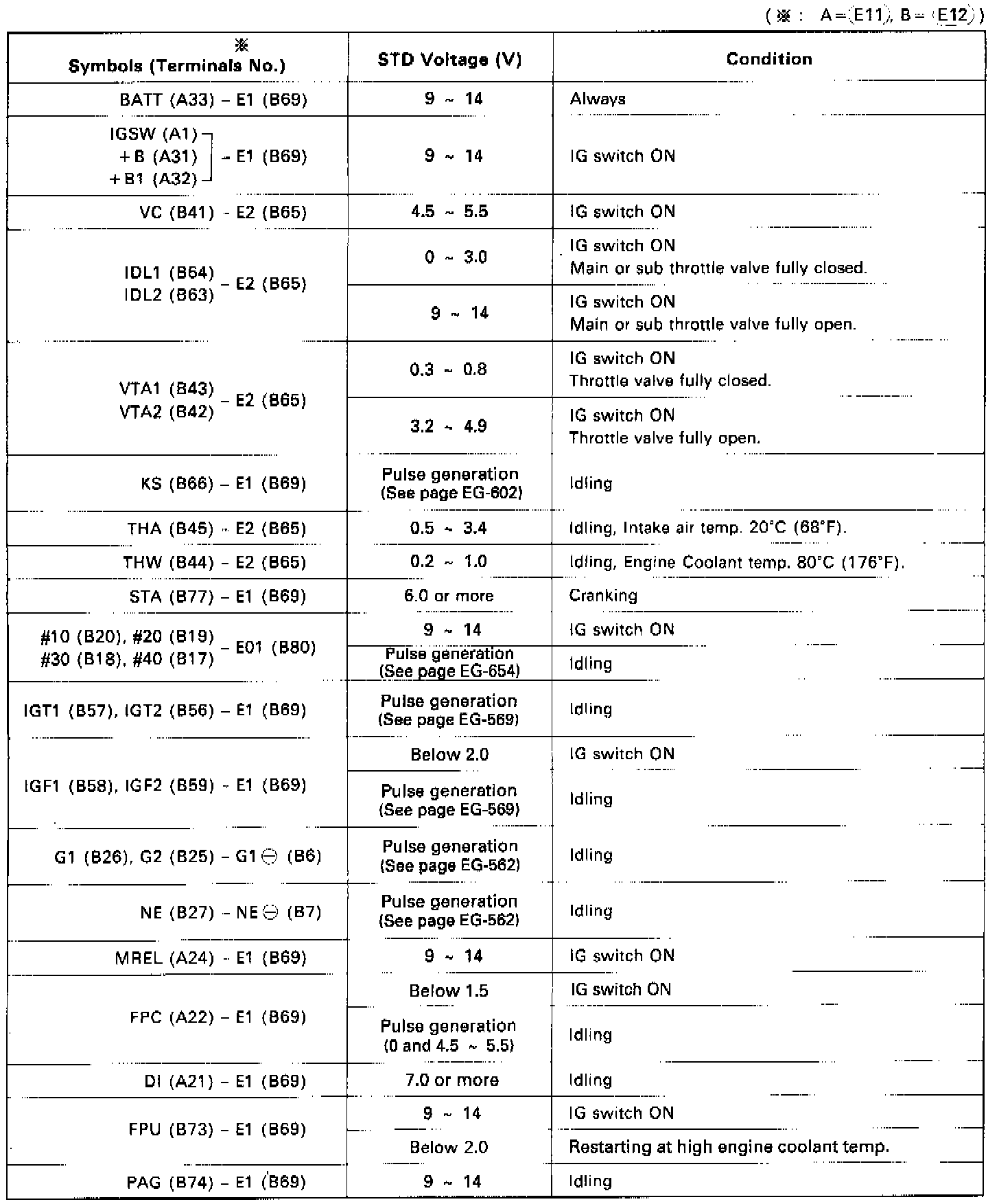

Chart 2 of 2
