Idle Speed/Throttle Actuator - Electronic: Testing and Inspection

INSPECTION

On Car Inspection

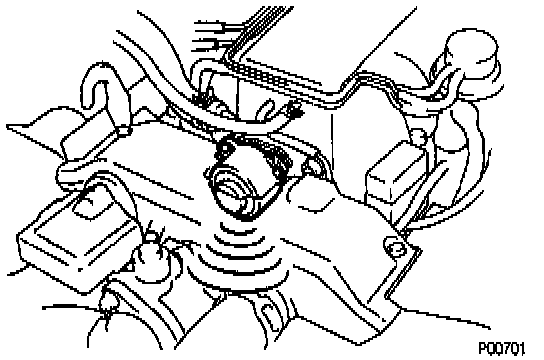

1. Inspect Idle Air Control Valve for operating sound. Check that there is a clicking sound immediately after stopping the engine. If operation is not as specified, check the Idle Air Control valve, wiring and Engine Control Module.
Refer to Non Trouble Code Charts; Idle Air Control Valve Circuit.
