Idle Speed/Throttle Actuator - Electronic: Locations

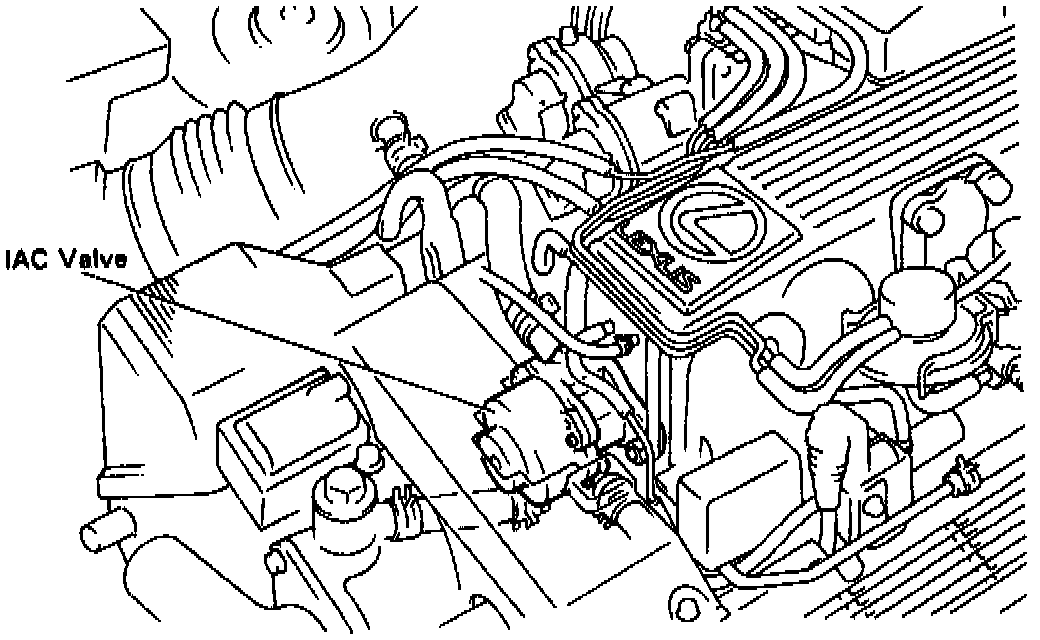

The Idle Air Control Valve is located on the front of the intake air chamber.
